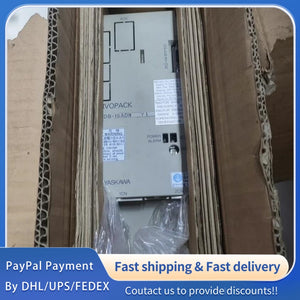

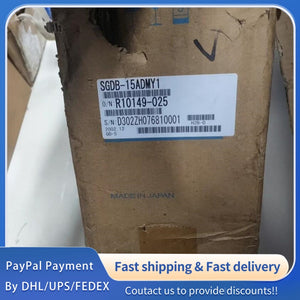

1 PCS used Yaskawa Servo Drive SGDB-15ADMY1 #LYQ007
1 PCS used Yaskawa Servo Drive SGDB-15ADMY1 #LYQ007
|
Item
|
Specification
|
|
Model Number
|
SGDB-15ADMY1
|
|
Product Name
|
Yaskawa AC Servo Drive
|
|
Product Series
|
Yaskawa SGDB Series, Compact AC Servo Drive for Precision Motion Control
|
|
Brand
|
Yaskawa Electric Corporation
|
|
Product Status
|
Industrial-Grade Original Equipment, RoHS 2.0 Compliant, CE Certified, IP20 Protection Class
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Rated Output Power
|
-
|
1.5
|
-
|
kW
|
Continuous operation, 200V 3-Phase input
|
|
Rated Output Current
|
-
|
7.5
|
-
|
A rms
|
Continuous current, sine wave output
|
|
Peak Output Current
|
-
|
22.5
|
-
|
A rms
|
10ms duration, 3 times rated current
|
|
Input Voltage
|
170
|
200-230
|
253
|
V AC
|
3-Phase, 50/60Hz, ±10% voltage fluctuation
|
|
Control Method
|
-
|
Digital Servo Control
|
-
|
-
|
Vector control with position/speed/torque control modes
|
|
Speed Response Frequency
|
-
|
300
|
-
|
Hz
|
Typical value, for high dynamic response
|
|
Parameter
|
Specification
|
|
Encoder Input Type
|
Incremental Optical Encoder, Absolute Encoder (Optional)
|
|
Standard Encoder Resolution
|
2500 Pulses/Rev (10000 Counts/Rev with 4x multiplication)
|
|
Maximum Encoder Frequency
|
500 kHz
|
|
Encoder Power Supply
|
DC 5V ±5%, 100mA Max (For encoder power supply)
|
|
Feedback Signal Type
|
Differential Line Driver (RS422) for noise immunity
|
|
Absolute Encoder Support
|
Compatible with Yaskawa (ABS), Serial Data Output (SSI/EnDat Optional)
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
