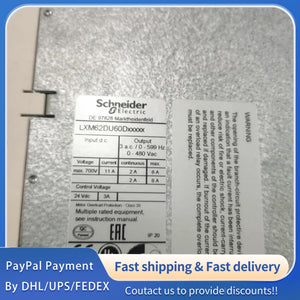

1 PCS USED Schneider Servo Drive LXM62DU60Dxxxxx #LYQ007
1 PCS USED Schneider Servo Drive LXM62DU60Dxxxxx #LYQ007
|
Item
|
Specification
|
|
Model Number
|
LXM62DU60Dxxxxx
|
|
Product Name
|
High-Performance Industrial Servo Drive
|
|
Product Series
|
Schneider LXM62 Series, Dual-Axis Servo Drive for Heavy-Duty Applications
|
|
Brand
|
Schneider Electric
|
|
Product Status
|
Industrial-Grade Original Equipment, RoHS 2.0 Compliant, CE Certified
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Number of Control Axes
|
2
|
2
|
2
|
Axes
|
Independent dual-axis control, support for synchronization
|
|
AC Input Voltage
|
380
|
400
|
480
|
V AC
|
3-Phase, 50/60Hz, ±10% voltage fluctuation tolerance
|
|
Input Frequency
|
47
|
50/60
|
63
|
Hz
|
Continuous operation within frequency range
|
|
Rated Output Power
|
-
|
60
|
-
|
kW
|
Total for dual axes, balanced load distribution
|
|
Rated Output Current
|
-
|
85
|
120
|
A rms
|
Continuous/Peak (3s), per axis
|
|
Output Voltage
|
-
|
0~Input Voltage
|
-
|
V AC
|
PWM frequency adjustable, 4kHz~16kHz
|
|
Control Modes
|
Position Control, Speed Control, Torque Control, Homing Mode, Jog Mode
|
Software-configurable, mode switching supported
|
|||
|
Positioning Precision
|
±0.001 mm (Mechanical), ±1 pulse (Electrical)
|
Depends on encoder resolution
|
|||
|
Encoder Interface
|
Incremental Encoder (TTL/HTL), Absolute Encoder (SSI/EnDat 2.2)
|
Support for 1Vpp sine/cosine encoder, up to 23-bit resolution
|
|||
|
Parameter
|
Specification
|
|
Industrial Bus Interfaces
|
EtherCAT, PROFINET, Modbus TCP/RTU, CANopen; Optional Ethernet/IP
|
|
Digital Input/Output
|
8 Digital Inputs (Optically Isolated), 4 Digital Outputs (Relay/Transistor), Configurable Functionality
|
|
Analog Input/Output
|
2 Analog Inputs (0~10V/4~20mA), 1 Analog Output (0~10V), 16-bit Resolution
|
|
Safety Functions
|
SIL 3, PL e; Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Operating Stop (SOS); Compliant with EN ISO 13849-1
|
|
Protection Features
|
Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Motor Overload, Encoder Fault Protection
|
|
Configuration Software
|
Schneider SoMove Software, Support Parameter Upload/Download, Monitoring & Diagnostics
|
