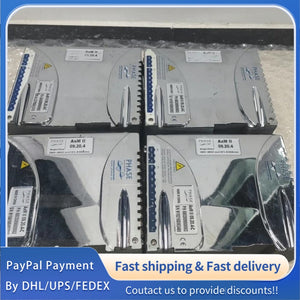

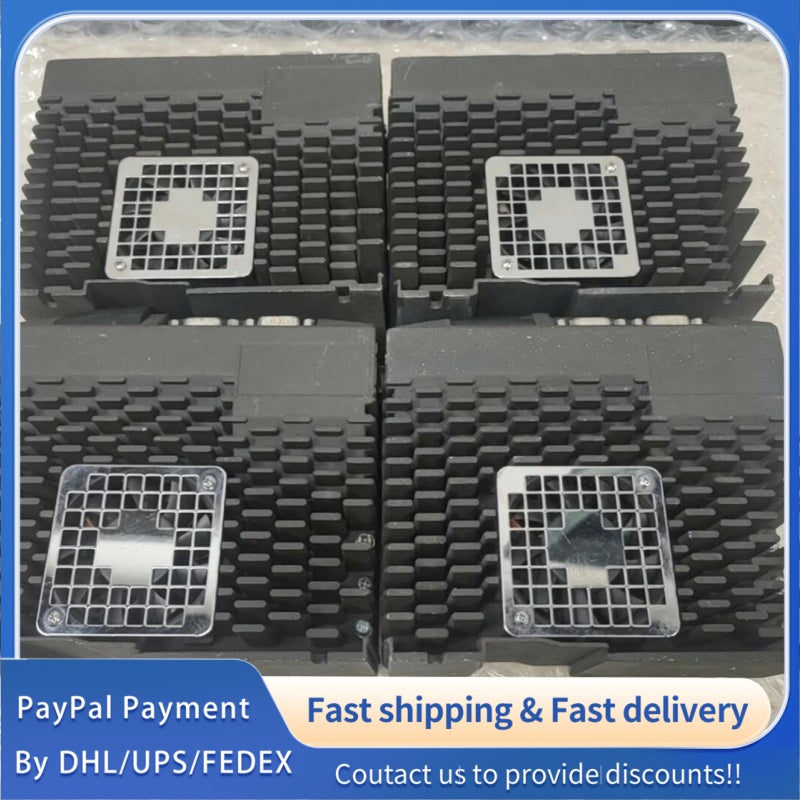

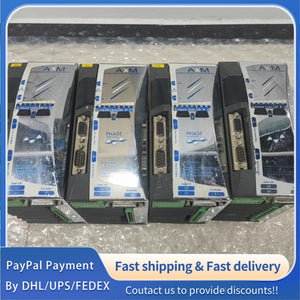

1 PCS used PHASE Fischer Servo Drive AxM II 09.20.4 #LYQ007
1 PCS used PHASE Fischer Servo Drive AxM II 09.20.4 #LYQ007
1 PCS used PHASE Fischer Servo Drive AxM II 09.20.4 #LYQ007
Part Number/Model: AxM II 09.20.4; Product Name: PHASE Fischer AxM II Series Servo Drive; Product Series: PHASE Fischer AxM II Series High-Performance Servo Drives, designed for precision motion control of AC servo motors.
Brand: PHASE Fischer (A professional manufacturer of industrial servo systems, renowned for high-precision control technology and reliable motion solutions. The AxM II 09.20.4 integrates advanced vector control algorithms with rugged industrial-grade hardware, delivering exceptional positioning accuracy and dynamic response for complex motion scenarios.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, RoHS Compliant, Anti-Static Packaging); Product Category: AC Servo Drive, serving as the core control unit for servo motor speed, torque, and position control.
Core Application: Suitable for a wide range of high-precision motion control systems, including CNC machine tools, industrial robots, automated assembly lines, printing machinery, packaging equipment, textile machines, and precision material handling systems. Widely applied in aerospace, automotive manufacturing, electronics production, and precision engineering industries.
Core Features: Advanced vector control and PID regulation algorithms; Multi-mode control (position, speed, torque) with seamless switching; High-resolution encoder feedback support; Built-in protection functions for drive and motor safety; Multiple communication interfaces for system integration; Compact modular design for easy installation; Support for parameter backup/restore and remote monitoring.
2. Core Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Input Voltage: 3-phase AC 380-480V ±10% (Industrial Power Supply); Input Frequency: 50/60Hz ±5%;
DC Bus Voltage: 540-670V DC (Rectified from AC Input); Power Consumption: ≤1.5kW (No-Load State), Rated Power Consumption Matching Motor Rating;
Input Current: 10A (Maximum RMS Input Current); Fuse Rating: 16A Slow-Blow Fuse (Overcurrent Protection for Input Circuit);
Reverse Polarity Protection: Yes (Optically Isolated Protection, No Damage When Power Polarity Accidentally Reversed).
2.2 Motor Control Parameters
Rated Output Current: 9A (Continuous), 27A (Peak Output Current, 3s Duration); Rated Output Power: 4kW (Matching 4kW AC Servo Motor);
Control Modes: Position Control (Pulse/Direction, CW/CCW), Speed Control (Analog Input, Communication), Torque Control (Analog Input, Communication); Control Precision: Positioning Accuracy ±0.001mm (With 17-bit Encoder), Speed Stability ±0.01% of Rated Speed;
Encoder Support: Incremental Encoder (5V Differential, Up to 1MHz), Absolute Encoder (SSI, EnDat 2.2, BiSS-C); Encoder Resolution: Up to 262144 Pulses/Rotation (Configurable);
Electronic Gear Ratio: Numerator 1-10000, Denominator 1-10000 (Adjustable for Precision Positioning); Control Response Time: ≤5ms (Encoder Signal Processing and Output Regulation).
2.3 Signal I/O Parameters
Analog Inputs: 2 x Differential Analog Inputs (0-10V DC / 4-20mA, 12-bit Resolution) for Speed/Torque Reference;
Digital Inputs: 8 x Optically Isolated Digital Inputs (24V DC, Sink/Source Configurable) for Enable, Limit, Emergency Stop, and Control Signals;
Digital Outputs: 4 x Transistor Outputs (24V DC, 1A Rated Current) + 2 x Relay Outputs (250V AC / 30V DC, 5A Rated Current) for Status Feedback, Alarm, and Interlock Signals;
Pulse Input Frequency: Up to 500kHz (Differential Input) for Position Control Signals.
2.4 Communication Parameters
Communication Interfaces: 1 x RS-485 (Half-Duplex, Optically Isolated), 1 x CANopen Interface (Optional), 1 x Ethernet Interface (EtherCAT, Optional for Industrial Network Integration);
Supported Protocols: Modbus RTU (Standard), CANopen DS402 (Optional), EtherCAT (Optional), PHASE Proprietary Protocol;
Baud Rate (RS-485): 2400-115200 bps (Configurable); Parity Check: None / Odd / Even (Selectable); Data Bits: 8 Bits; Stop Bits: 1 / 2 Bits (Configurable);
Communication Distance: Up to 1200m (RS-485 Interface, Using Shielded Twisted Pair Cable); Isolation Voltage: 2500Vrms (Communication Ports Isolation, 1 Minute Test).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
