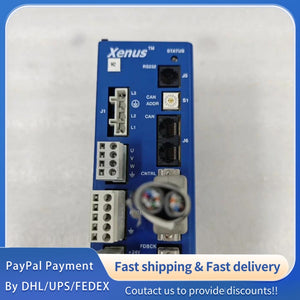

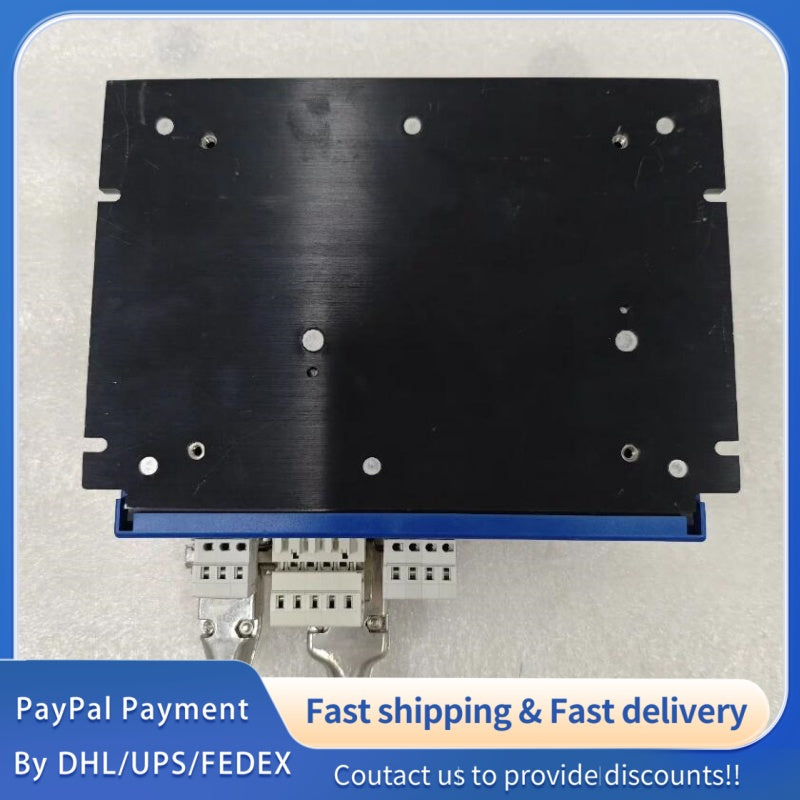

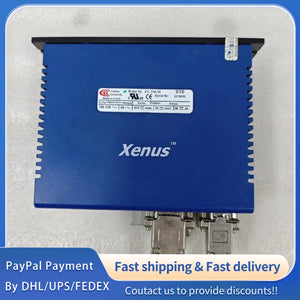

Part Number: XTL-230-36; Model: XTL-230-36; Product Name: Copley Xenus XTL-230-36 Intelligent Servo Driver; Product Series: Copley Xenus XTL Series, High-Performance Digital Servo Drive for Precision Motion Control
Brand: Copley Controls (A global leader in advanced motion control solutions, specializing in servo drives, motors, and motion controllers. Copley is renowned for its cutting-edge digital control technology, high dynamic response, and reliable performance in industrial automation, robotics, medical equipment, and aerospace fields. The Xenus XTL-230-36 is a compact intelligent servo driver integrated with advanced control algorithms, designed to deliver precise position, speed, and torque control for medium-power servo motors.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: Digital Intelligent Servo Driver, featuring built-in motion control functions, real-time feedback processing, and multi-protocol communication for seamless integration into automated systems.
Core Application: Compatible with Copley brushless servo motors and mainstream industrial control platforms (PLC, CNC, Motion Controllers), widely applied in precision automation scenarios including robotic arms, CNC machining centers, electronic component placement machines, medical diagnostic equipment, semiconductor handling systems, and automated guided vehicles (AGVs). It is particularly suitable for applications requiring high positioning accuracy, fast dynamic response, and stable operation under variable load conditions.
Core Features: 230V AC input, 36A peak output current capability; Advanced PID+Feedforward control algorithm for superior motion precision; Multiple control modes (position, speed, torque) with seamless switching; Built-in EtherCAT communication for real-time data exchange; Compact DIN-rail mount design for space-saving installation; Comprehensive protection mechanisms for motor and driver safety; Support for absolute and incremental encoders; Configurable via Copley Motion Manager software.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Power Supply Requirements: AC Input Voltage: 180~264V AC (Single-Phase/Three-Phase Optional), 50/60Hz; Voltage Tolerance: ±10%; Rated Input Current: 12A (Single-Phase), 7A (Three-Phase); Peak Input Current: 35A (10ms Duration); DC Bus Voltage: 320~370V DC (Rectified from AC Input); Power Consumption: ≤4.5kW (Normal Operation), ≤7.2kW (Peak Load).
Motor Control Performance: Rated Output Current: 18A (Continuous), 36A (Peak, 100ms); Output Voltage: 0~230V AC (Variable Frequency & Amplitude); Control Accuracy: Positioning Accuracy ±0.001mm (with 23-bit Absolute Encoder), Speed Regulation Accuracy ±0.01% Rated Speed; Maximum Motor Speed: 6000rpm (Depends on Motor Specifications); Torque Ripple: ≤2% Rated Torque.
Encoder Compatibility: Supports Absolute Encoder (17-bit~25-bit, BiSS-C, EnDat 2.2) and Incremental Encoder (1024~25600 PPR); Hall Sensor Input: 3-Phase Hall Signals (5V TTL); Encoder Signal Type: Differential Signal (A/B/Z Phase) for Anti-Interference; Signal Processing Delay: ≤0.3ms.
Insulation Performance: Insulation Resistance: ≥500MΩ (500V DC); Dielectric Strength: 2kV AC for 1 Minute (Power Circuit to Control Circuit); Isolation Voltage: 1500V AC (Between Input/Output and Control Circuit); Overvoltage Withstand: ≥2.5kV AC (Transient, 1.2/50μs).
2.2 Control & Communication Performance
Control Modes: Position Control (Pulse/Direction, CW/CCW, Electronic Gearbox), Speed Control (Analog Input, Communication, Parameter Setting), Torque Control (Analog Input, Communication); Built-in Functions: S-Curve Acceleration/Deceleration, Torque Limiting, Soft Start/Stop, Emergency Stop Response (≤10ms), Stall Detection.
Response Performance: Position Response Bandwidth: ≥500Hz; Speed Response Bandwidth: ≥300Hz; Torque Rise Time: ≤3ms; Maximum Pulse Input Frequency: 4MHz (High-Speed Positioning); Analog Input Resolution: 16-bit (for Speed/Torque Control).
Communication Interfaces: 1× EtherCAT Port (Real-Time Industrial Ethernet, Cycle Time ≥1ms), 1× RS-485 Port (Half-Duplex, Optically Isolated); Communication Protocols: EtherCAT, Modbus RTU; Data Transmission Rate: RS-485: 9600~115200 bps (Configurable), EtherCAT: 100Mbps; Supports Remote Parameter Adjustment, Status Monitoring, and Fault Diagnosis.
EMC Performance: ESD Protection: ±8kV (Contact Discharge), ±15kV (Air Discharge) Per IEC 61000-4-2; Surge Protection: ±2kV (Line to Ground), ±1kV (Line to Line) Per IEC 61000-4-5; EMI Filter: High-Performance Built-in Filter, Compliant with EN 61000-6-4 (Industrial Class A); Fast Transient Immunity: ±2kV (Power Line), ±1kV (Signal Line) Per IEC 61000-4-4.
