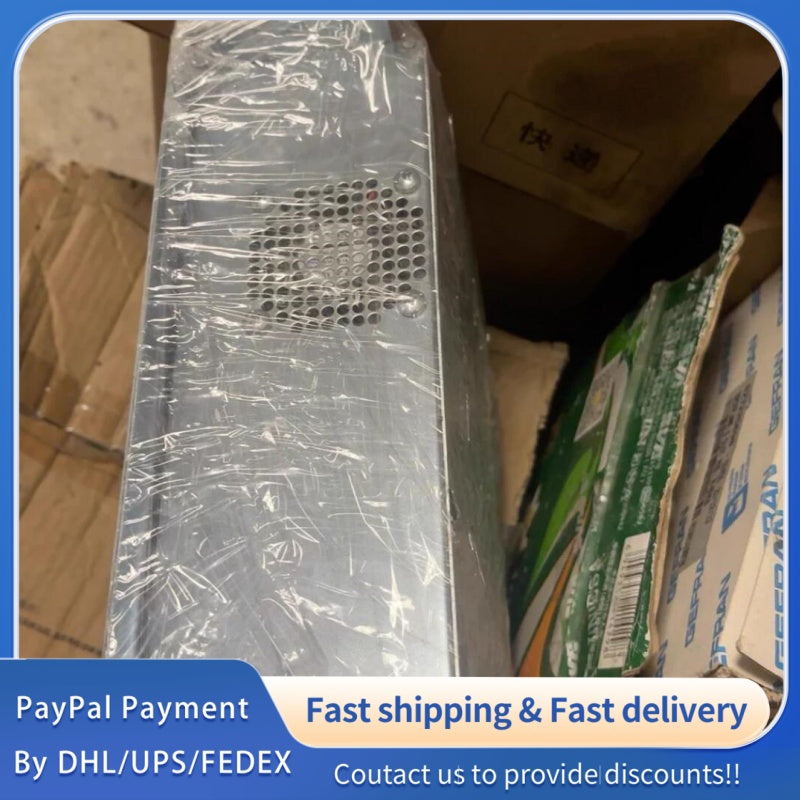

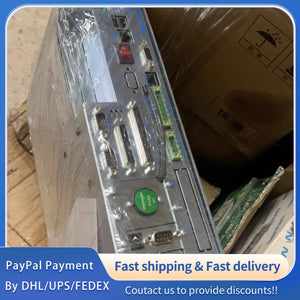

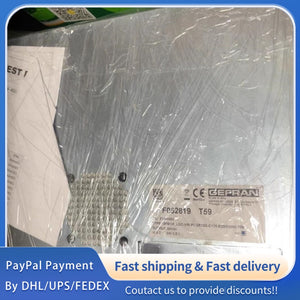

1 PCS new GEFRAN GFBOX_LOC-VW-PCSR1G0-D128-E2SR0000-T59 controller #LYQ007
1 PCS new GEFRAN GFBOX_LOC-VW-PCSR1G0-D128-E2SR0000-T59 controller #LYQ007
|
Item
|
Specification
|
|
Model Number
|
GFBOX_LOC-VW-PCSR1G0-D128-E2SR0000-T59
|
|
Product Name
|
GEFRAN Industrial Local Control Box, Precision Position Control Module with Digital Display
|
|
Brand & Manufacturer
|
GEFRAN S.p.A., Via Kennedy, 53 - 42012 Cabiate (CO) - Italy
|
|
Product Series
|
GEFRAN GFBOX Series, Local Control Box for Industrial Automation, Compatible with GEFRAN Position Sensors & Controllers
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Processing Speed
|
-
|
100
|
-
|
MHz
|
32-bit High-Performance Microcontroller, Optimized for Industrial Position Control & Signal Processing
|
|
Control Cycle
|
0.5
|
1
|
5
|
ms
|
Software-configurable, Real-time Control Cycle, Ensures High-precision Position Monitoring & Regulation
|
|
Position Control Accuracy
|
-
|
±0.02
|
±0.05
|
mm
|
Based on 1m Travel Distance, Matching GEFRAN LTC Series Linear Position Sensors
|
|
Signal Sampling Rate
|
1000
|
2000
|
5000
|
Hz
|
High-speed signal sampling, Ensures real-time response to sensor signal changes
|
|
Sensor Signal Support
|
-
|
-
|
-
|
-
|
Analog (0~10V DC, 4~20mA DC), Digital (RS-485, SSI); Compatible with GEFRAN standard sensor signals
|
|
Signal Processing Delay
|
-
|
3
|
8
|
μs
|
From Sensor Signal Input to Control Signal Output, Ensures Real-time Control Response
|
|
Display Accuracy
|
-
|
0.01
|
0.1
|
mm
|
Digital LED Display, 4~6 Digits, Adjustable Display Resolution
|
|
Parameter
|
Specification
|
|
Supply Voltage (Control Circuit)
|
DC 24V ±10%, 1A Maximum Current; Reverse Polarity Protection, Overvoltage Protection (≥30V DC), Undervoltage Protection (≤18V DC)
|
|
Power Consumption (Control Circuit)
|
Typical 8W, Maximum 12W (Without Load, Ta=25℃)
|
|
Digital Input Channels
|
6 Channels, DC 24V, Sinking/Sourcing (Configurable); Response Time ≤5μs; Input Current 3.5mA (24V DC)
|
|
Digital Output Channels
|
6 Channels, DC 24V, Sinking; Maximum Current 0.3A per Channel, 3A Total; Short-Circuit Protection, Overload Protection
|
|
Analog Input Channels
|
4 Channels, 4~20mA DC / 0~10V DC (Configurable); 16-bit Resolution; Input Impedance ≥10kΩ (Voltage), ≤100Ω (Current)
|
|
Analog Output Channels
|
2 Channels, 4~20mA DC / 0~10V DC (Configurable); 16-bit Resolution; Output Impedance ≤100Ω; Short-Circuit Protection
|
|
Sensor Interface
|
1 x RS-485 (Terminal Block), 1 x SSI Interface (Differential Signal); Support for GEFRAN standard sensor connection, Plug-and-Play
|
|
Communication Interfaces
|
1 x RS-485 (Terminal Block), Baud Rate 300bps~115200bps; 1 x Ethernet (RJ45), 10/100Mbps, Support Modbus TCP/IP; 1 x USB 2.0 (Type B) for Configuration
|
|
Isolation Voltage
|
2500Vrms (Control Circuit to Power Circuit, Channel to Channel), 1 Minute Duration per IEC 61131-2
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
