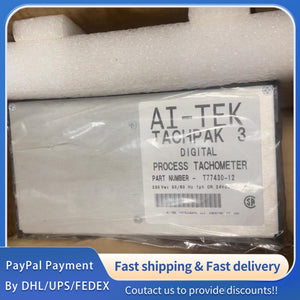

1 PCS new AI-TEK TACHPAK 3 Digital Tachometer T77430-12 #LYQ007
1 PCS new AI-TEK TACHPAK 3 Digital Tachometer T77430-12 #LYQ007
|
Item
|
Specification
|
|
Model Number
|
T77430-12
|
|
Product Name
|
AI-TEK TACHPAK 3 Digital Tachometer, Industrial Precision RPM Measurement Instrument
|
|
Brand & Manufacturer
|
AI-TEK Instruments (A Division of AMETEK, Inc.), 840 Third Avenue, King of Prussia, PA 19406, USA
|
|
Product Series
|
AI-TEK TACHPAK 3 Series, Digital Tachometers, Designed for Industrial RPM Monitoring & Control Applications
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Measurement Range (RPM)
|
1
|
-
|
100000
|
RPM
|
Configurable via DIP switches; Accurate measurement across full range with magnetic pickup input
|
|
Measurement Accuracy
|
-
|
±0.1
|
±0.5
|
%
|
Of reading, at 100~10000 RPM; ±1 RPM at <100 RPM; Reference to AI-TEK MPU-400 magnetic pickup
|
|
Display Resolution
|
0.1
|
-
|
1
|
RPM
|
Configurable; 0.1 RPM resolution for 1~999.9 RPM, 1 RPM resolution for 1000~100000 RPM
|
|
Response Time
|
50
|
100
|
200
|
ms
|
From speed change to display update; Configurable response time via internal potentiometer
|
|
Input Signal Type
|
-
|
-
|
-
|
-
|
Magnetic Pickup (AC Voltage: 0.1~25Vpp), Hall Effect (NPN/PNP), Optical Encoder (TTL); Configurable input via DIP switches
|
|
Input Frequency Range
|
0.017
|
-
|
1667
|
Hz
|
Corresponds to 1~100000 RPM (1 pulse per revolution); Compatible with 1~100 pulses per revolution
|
|
Display Type
|
-
|
-
|
-
|
-
|
4.5-digit LED Display, Red Color, 0.56-inch Digit Height; Visible in low-light industrial environments
|
|
Parameter
|
Specification
|
|
Supply Voltage
|
DC 12~24V ±10%, AC 110~240V ±10% (Dual Voltage Input, Configurable); Reverse Polarity Protection, Overvoltage Protection
|
|
Power Consumption
|
Typical 5W, Maximum 8W (Without Load, Ta=25℃); LED Display contributes 2W typical
|
|
Analog Output Channels
|
1 Channel, 4~20mA DC / 0~10V DC (Configurable); 16-bit Resolution; Output Impedance ≤100Ω; Short-Circuit Protection
|
|
Digital Output Channels
|
2 Channels, NPN Open Collector; Maximum Current 0.5A per Channel; Configurable as Alarm (High/Low Speed) or Speed Switch; Response Time ≤50μs
|
|
Input Impedance
|
10kΩ (Magnetic Pickup Input), 1kΩ (Hall Effect Input), 100kΩ (Optical Encoder Input)
|
|
Isolation Voltage
|
2500Vrms (Input to Output, Power to Signal), 1 Minute Duration per IEC 61131-2 Standard
|
|
Calibration Interface
|
Internal Potentiometers (Zero & Span) for Analog Output Calibration; DIP Switches for RPM Range & Input Type Configuration
|
|
Alarm Function
|
Configurable High/Low Speed Alarms; Alarm Delay 0.1~10s (Adjustable); LED Alarm Indicator (Yellow) on Front Panel
|
