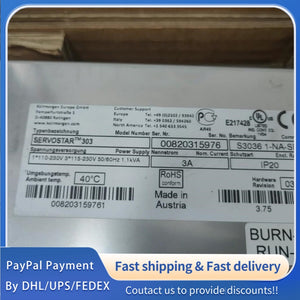

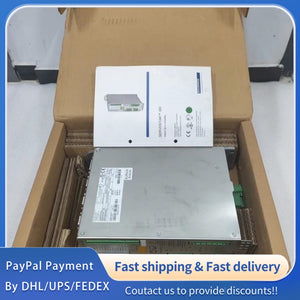

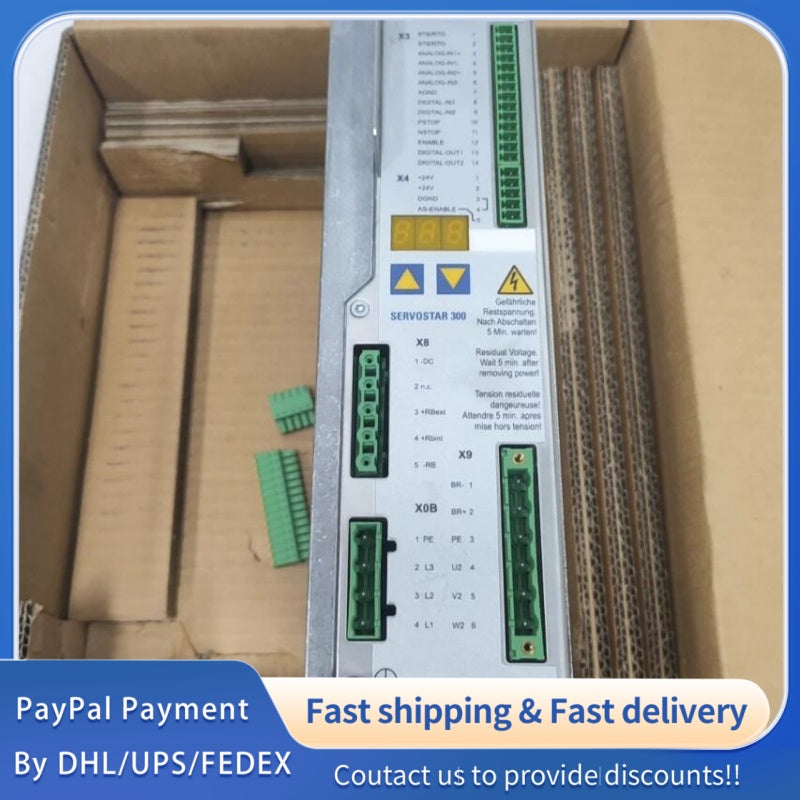

1 PCS new Kollmorgen Drive S3036 1-NA-SB #LYQ007
1 PCS new Kollmorgen Drive S3036 1-NA-SB #LYQ007
|
Item
|
Specification
|
|
Model Number
|
S3036 1-NA-SB
|
|
Product Name
|
Kollmorgen Servo Drive
|
|
Product Series
|
S3000 Series, Compact Industrial Servo Drive for Precision Motion Control
|
|
Brand
|
Kollmorgen
|
|
Product Status
|
Industrial-Grade Original Equipment (RoHS 2.0 Compliant, Industrial Packaging, Anti-Interference Design)
|
|
Parameter
|
Value
|
|
Input Voltage
|
Single-Phase AC 100-240V ±10%, 50/60Hz; Optional Three-Phase AC 200-480V (Model-Dependent)
|
|
Rated Output Current
|
3.6 A (Continuous), 10.8 A (Peak, 3 Seconds)
|
|
Output Frequency
|
0-500 Hz (Sinusoidal PWM Output, Carrier Frequency: 4-16 kHz Adjustable)
|
|
Control Modes
|
Position Control, Speed Control, Torque Control, Profile Position Mode, Profile Speed Mode, Homing Mode
|
|
Positioning Accuracy
|
±1 Pulse (Dependent on Encoder Resolution), Support Electronic Gear Ratio Adjustment
|
|
Encoder Interface
|
Incremental Encoder (A/B/Z Phase): 5V Differential, Max Input Frequency 500 kHz; Absolute Encoder Support (SSI, EnDat 2.2 Optional)
|
|
Insulation Resistance
|
≥100 MΩ (500 VDC, Between Input Terminal and Housing)
|
|
Withstand Voltage
|
2000 VAC for 1 Minute (Between Input Terminal and Housing, No Breakdown)
|
|
Power Consumption (No Load)
|
≤15 W (220V AC Input)
|
|
Parameter
|
Value
|
|
Digital Inputs
|
8 Channels (Optically Isolated, NPN/PNP Selectable, 24V DC, Response Time ≤10 μs)
|
|
Digital Outputs
|
4 Channels (Optically Isolated, Transistor Output, Max Current 0.5 A per Channel)
|
|
Analog Inputs
|
2 Channels (12-Bit Resolution, 0-10V / ±10V / 4-20mA Selectable, Input Impedance ≥100 kΩ)
|
|
Analog Outputs
|
1 Channel (12-Bit Resolution, 0-10V / ±10V Output, Max Load Current 10 mA)
|
|
Communication Interface
|
RS485 (Modbus RTU), Ethernet (EtherCAT Optional), Support Parameter Upload/Download and Remote Control
|
|
Motor Connection
|
3-Phase Output (U/V/W), 4-Wire Encoder Connection, Ground Terminal for Anti-Interference
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
