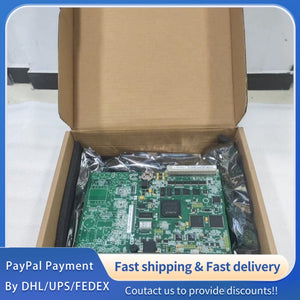

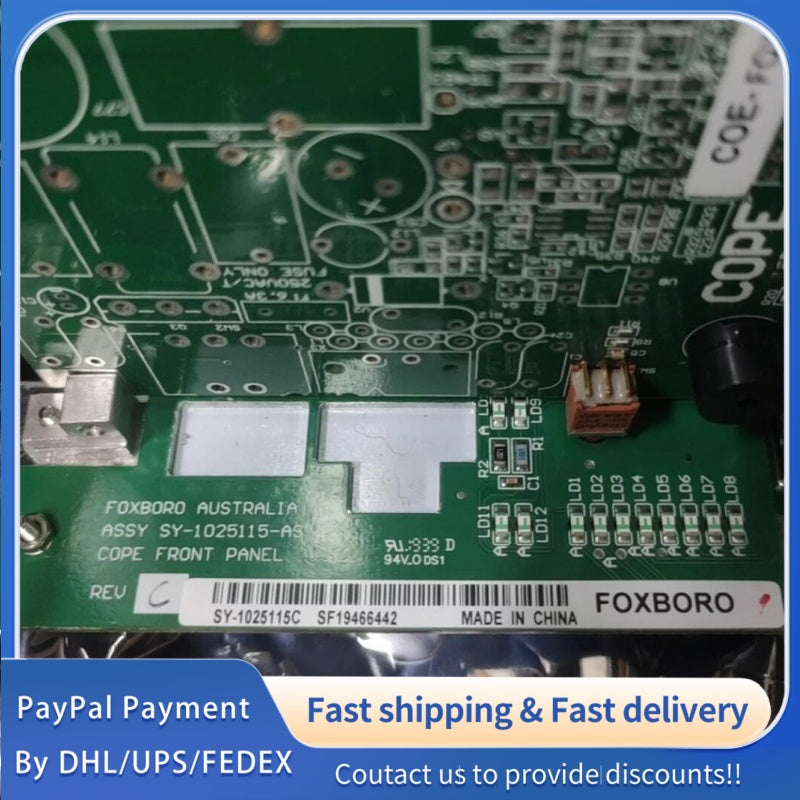

1 PCS new Foxboro Board SY-1025115C #LYQ007
1 PCS new Foxboro Board SY-1025115C #LYQ007
|
Item
|
Specification
|
|
Model Number
|
SY-1025115C
|
|
Product Name
|
Foxboro Industrial Control Board
|
|
Product Series
|
Foxboro SY Series, Analog Input/Output Board for Distributed Control Systems (DCS)
|
|
Brand
|
Foxboro (Schneider Electric Group)
|
|
Parameter
|
Value
|
|
Power Supply Voltage
|
DC 24V ±10% (Industrial Standard Power Supply), Typical Current Consumption: 150mA
|
|
Analog Input Channels
|
8 Channels (Differential Input), Support 4-20mA, 0-10V DC Signals
|
|
Input Accuracy
|
±0.1% Full Scale (4-20mA Range), ±0.05% Full Scale (Calibrated)
|
|
Analog Output Channels
|
4 Channels, Output Range: 4-20mA DC (Sink/Source Selectable), Load Capacity: Max 500Ω
|
|
Output Accuracy
|
±0.2% Full Scale, Response Time: ≤10ms
|
|
Isolation Voltage
|
Channel to Channel: 2kVrms (1 Minute); Input/Output to Power: 3kVrms (1 Minute)
|
|
Anti-Interference Performance
|
EMC Compliance: EN 61000-4-2 (ESD ±8kV Air/±4kV Contact), EN 61000-4-3 (Radiated Immunity), EN 61000-4-4 (EFT ±2kV)
|
|
Self-Diagnostic Function
|
Open-Circuit Detection, Short-Circuit Detection, Over-Temperature Alarm, Signal Out-of-Range Alarm
|
|
Parameter
|
Value
|
|
Dimensions (W×H×D)
|
160mm × 320mm × 40mm (Standard Rack-Mounted Size, Metal Housing)
|
|
Net Weight
|
Approximately 550g (Without Connectors & Mounting Screws)
|
|
Installation Method
|
19-Inch Standard Rack-Mounted (3U Height), Compatible with Foxboro I/A Series Racks
|
|
Connectors
|
Input/Output: 37-Pin D-Sub Connector (Gold-Plated Contacts); Power & Communication: 16-Pin Terminal Block
|
|
Status Indicators
|
Power (Green LED: Steady On = Normal); Channel Status (Yellow LED: Flashing = Fault); Communication (Blue LED: Flashing = Data Transmission)
|
|
Hot-Swappable
|
Yes (With Power Isolation Design, No System Interruption During Replacement)
|
