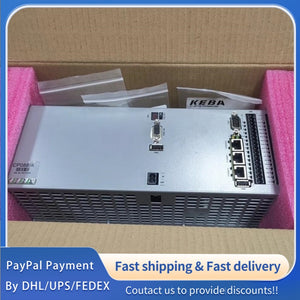

1 PCS NEW KEBA Kemro K2-200 Temperature Input Module CP 088/A #LYQ007
1 PCS NEW KEBA Kemro K2-200 Temperature Input Module CP 088/A #LYQ007
|
Item
|
Specification
|
|
Model Number
|
CP 088/A
|
|
Product Name
|
Industrial Temperature Input Module
|
|
Product Series
|
KEBA CP Series, High-Precision Multichannel Temperature Acquisition Module
|
|
Brand
|
KEBA AG (KEBA Industrial Automation)
|
|
Product Status
|
Industrial-Grade Original Equipment, RoHS 2.0 Compliant, Lead-Free Construction
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Notes
|
|
Number of Input Channels
|
8
|
8
|
8
|
Channels
|
Independent channels, simultaneous acquisition
|
|
Supported Thermocouple Types
|
B, E, J, K, N, R, S, T
|
Software-configurable per channel
|
|||
|
Temperature Measurement Range
|
-270
|
-
|
1820
|
℃
|
Depends on thermocouple type (see Table 3)
|
|
Measurement Precision
|
±0.2% of reading ±0.5℃
|
At 25℃ ambient, full scale range
|
|||
|
Voltage Measurement Precision
|
±0.2% of reading ±10μV
|
For thermocouple millivolt signal acquisition
|
|||
|
Conversion Time per Channel
|
-
|
100
|
-
|
ms
|
Including cold junction compensation
|
|
Input Impedance
|
2
|
-
|
-
|
MΩ
|
Minimizes loading effect on sensors
|
|
Input Voltage Range
|
-70
|
-
|
70
|
mV
|
Corresponds to thermocouple signal range
|
|
Common Mode Voltage
|
-7.5
|
-
|
7.5
|
V
|
Maximum common mode voltage tolerance
|
|
Overload Protection
|
-30
|
-
|
30
|
V
|
Protects module from input voltage surges
|
|
Resolution
|
20 bits
|
High-resolution AD conversion
|
|||
|
Noise-Free Resolution
|
16.25 bits
|
Effective resolution after noise filtering
|
|||
|
Thermocouple Type
|
Full Temperature Range (℃)
|
0.1℃ Resolution Range (℃)
|
0.025℃ Resolution Range (℃)
|
|
B
|
20 ~ 1820
|
150 ~ 1820
|
600 ~ 1820
|
|
E
|
-270 ~ 910
|
-270 ~ 910
|
-260 ~ 910
|
|
J
|
-210 ~ 1200
|
-210 ~ 1200
|
-210 ~ 1200
|
|
K
|
-270 ~ 1370
|
-270 ~ 1370
|
-250 ~ 1370
|
|
N
|
-270 ~ 1300
|
-260 ~ 1300
|
-230 ~ 1300
|
|
R
|
-50 ~ 1760
|
-50 ~ 1760
|
20 ~ 1760
|
|
S
|
-50 ~ 1760
|
-50 ~ 1760
|
20 ~ 1760
|
|
T
|
-270 ~ 400
|
-270 ~ 400
|
-250 ~ 400
|
|
Parameter
|
Specification
|
|
Dimensions (W×H×D)
|
201mm × 104mm × 34mm (7.91 × 4.09 × 1.34 inches), Plastic & Metal Hybrid Housing
|
|
Net Weight
|
Approximately 300g (Without Cables & Mounting Hardware)
|
|
Mounting Method
|
35mm Standard DIN Rail Mount, Panel Mount Optional via Adapter
|
|
Input Connector
|
Miniature Thermocouple Connectors, Secure Locking Design
|
|
Communication Interface
|
Compatible with KEBA Industrial Bus Systems, Plug-and-Play Configuration
|
|
Cooling Method
|
Passive Convection Cooling, Fanless Design, Maintenance-Free
|
