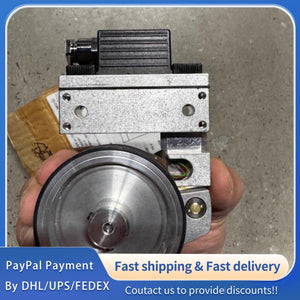

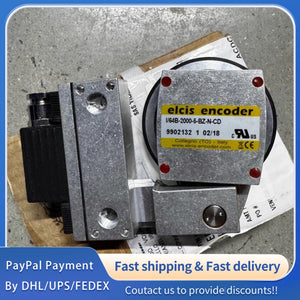

1 PCS used ELCIS Encoder I/64B-2000-5-BZ-N-CD 52861043000 #LYQ007
1 PCS used ELCIS Encoder I/64B-2000-5-BZ-N-CD 52861043000 #LYQ007
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
Rotary Encoder
|
-
|
Original ELCIS genuine product, high-precision rotary encoder for industrial motion control and position detection
|
|
Model Number (Full)
|
I/64B-2000-5-BZ-N-CD
|
-
|
Full model code, strictly consistent with ELCIS factory calibration and technical specifications
|
|
Model Number (Short)
|
52861043000
|
-
|
Short model code for inventory and procurement, corresponding to full model I/64B-2000-5-BZ-N-CD
|
|
Brand & Manufacturer
|
ELCIS
|
-
|
Complies with ELCIS strict encoder manufacturing standards, ensuring high precision, stability and long service life
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Resolution (Pulses per Revolution)
|
1980
|
2000
|
2020
|
PPR
|
Precision resolution, 2000 pulses per revolution, meeting high-precision position detection requirements
|
|
Supply Voltage (DC)
|
10
|
12-24
|
30
|
VDC
|
Wide voltage input range, compatible with common industrial DC power supplies, anti-voltage fluctuation
|
|
Rated Current
|
10
|
15
|
20
|
mA
|
Low power consumption, stable current consumption under rated working conditions, no excessive heat generation
|
|
Output Signal Type
|
BZ (Push-Pull Output)
|
-
|
Push-pull output, compatible with TTL/CMOS signal levels, strong anti-interference ability in industrial environments
|
|
|
|
Max Response Frequency
|
-
|
100
|
120
|
kHz
|
High response frequency, supporting high-speed rotation detection, up to 3600 RPM rotation speed adaptation
|
|
Phase Difference
|
85
|
90
|
95
|
Degrees
|
A/B phase 90° typical phase difference, accurate direction discrimination, avoiding position detection errors
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Shaft Diameter
|
5.95
|
6
|
6.05
|
mm
|
Standard 6mm shaft diameter, matching industrial equipment shaft connection, high fitting precision
|
|
Shaft Length
|
-
|
20
|
-
|
mm
|
Standard shaft length, suitable for most industrial installation scenarios, easy to assemble
|
|
Max Shaft Load (Radial)
|
-
|
5
|
8
|
N
|
High radial load capacity, ensuring stable operation under industrial mechanical stress
|
|
Max Shaft Load (Axial)
|
-
|
3
|
5
|
N
|
Strong axial load capacity, adapting to slight axial displacement of equipment shaft
|
|
Max Rotation Speed
|
-
|
3000
|
6000
|
RPM
|
High-speed rotation adaptation, stable signal output without distortion at max speed
|
|
Overall Dimensions (D×L)
|
-
|
64 × 58
|
-
|
mm
|
Compact design, 64mm diameter, suitable for narrow installation spaces in industrial equipment
|
|
Net Weight
|
-
|
0.18
|
-
|
kg
|
Lightweight, reducing mechanical load on equipment, easy to install and disassemble
|
|
Mounting Method
|
-
|
Flange Mount (CD Type)
|
-
|
-
|
CD type flange mounting, standard mounting hole position, compatible with industrial equipment mounting brackets
|
