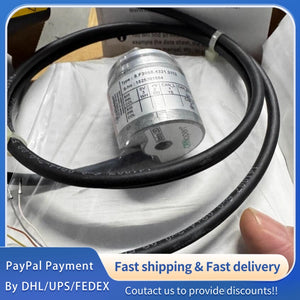

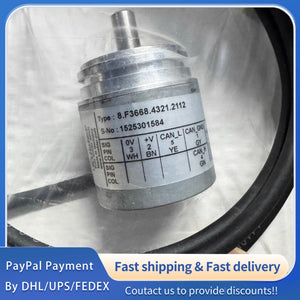

1 PCS used Kubler Absolute Multi-Turn Encoder 8.F3668.4321.2112#LYQ007
1 PCS used Kubler Absolute Multi-Turn Encoder 8.F3668.4321.2112#LYQ007
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
Absolute Multi-Turn Encoder
|
-
|
Original Kubler genuine product, high-precision absolute multi-turn encoder, specialized for position detection and motion control in industrial automation systems
|
|
Model Number
|
8.F3668.4321.2112
|
-
|
Unique model code for Kubler absolute multi-turn encoder series, strictly consistent with factory calibration, technical specifications and product identification
|
|
Brand & Manufacturer
|
Kubler (Kubler Group)
|
-
|
Complies with Kubler strict industrial encoder standards, ensuring high positioning precision, stable signal output and reliable long-term operation
|
|
Product Series
|
F3668 Series Absolute Multi-Turn Encoder
|
-
|
High-performance, compact absolute multi-turn encoder series, designed for harsh industrial environments and high-precision motion control scenarios
|
|
Encoder Type
|
Absolute Multi-Turn, Optical
|
-
|
Optical sensing technology, realizing absolute position measurement without cumulative error, no need for homing after power-off
|
|
Installation Orientation
|
Arbitrary
|
-
|
Flexible installation, no restriction on orientation, adapting to different equipment installation spaces and requirements
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Supply Voltage Range (DC)
|
10
|
24
|
30
|
VDC
|
Stable DC power supply range, compatible with standard industrial 24VDC power supply system, anti-voltage fluctuation
|
|
Operating Current
|
10
|
20
|
30
|
mA
|
Low power consumption design, supporting 24/7 continuous operation without performance degradation
|
|
Output Interface
|
-
|
SSI (Synchronous Serial Interface)
|
-
|
-
|
High-speed synchronous serial interface, reliable data transmission, suitable for high-precision position feedback systems
|
|
Output Logic
|
-
|
RS422 Differential
|
-
|
-
|
RS422 differential output, strong anti-interference ability, suitable for long-distance data transmission in industrial environments
|
|
Data Transmission Rate
|
100
|
500
|
1000
|
kHz
|
Adjustable data transmission rate, matching different control system response requirements
|
|
Insulation Resistance
|
100
|
500
|
-
|
MΩ
|
High insulation performance between signal output and power supply, effectively preventing short circuit and ensuring equipment safety
|
|
Dielectric Strength
|
-
|
1
|
-
|
kV (AC, 1min)
|
Strong dielectric strength, adapting to complex industrial electrical environments, avoiding insulation breakdown
|
