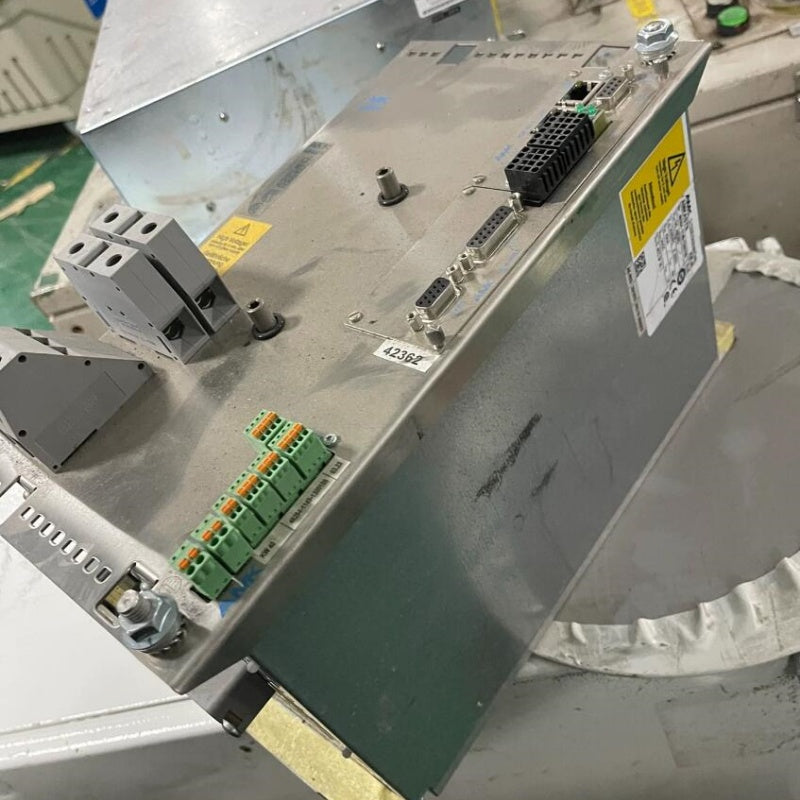

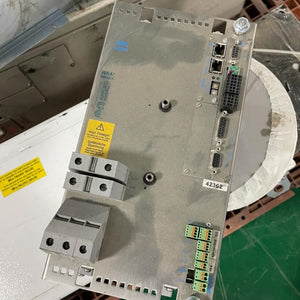

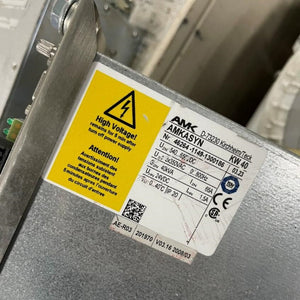

1PC used AMK D-73230 (AMKASYN KW40) Servo Drive #LYQ007
Parameter
Value
Manufacturer
AMK (Germany)
Model
AMKASYN KW40
Type Code
D-73230
Product Category
Servo Drive / Inverter
Weight
7.2 kg
Dimensions (W×H×D)
180×250×340 mm
Mounting
Wall / Cabinet Mounting
Protection Class
IP 20 (Internal)
Cooling
Cold Plate / Liquid Cooling
Parameter
Value
Input Voltage (DC Bus)
540 ... 650 VDC
Input Current (Rated)
74 A
Overvoltage Threshold
850 VDC
Undervoltage Threshold
450 VDC
Power Supply Frequency
45 ... 65 Hz
Parameter
Value
Output Voltage (3-phase)
3 x 350 VAC (sinusoidal)
Output Frequency
0 ... 599 Hz
Rated Output Power
40 kVA
Maximum Output Power (10s)
80 kVA
Rated Output Current
66 A
Maximum Output Current (10s)
132 A
Efficiency
> 97 %
Parameter
Value
Control Modes
Position, Speed, Torque
Current Control Bandwidth
3 kHz
Speed Control Bandwidth
1 kHz
Position Control Bandwidth
400 Hz
Switching Frequency
8 ... 16 kHz
Resolution (Current)
12 bit
Resolution (Speed)
16 bit
Resolution (Position)
20 bit
