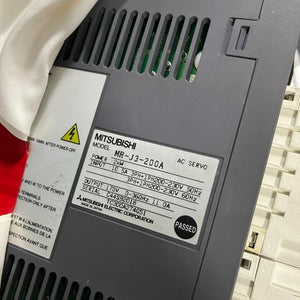

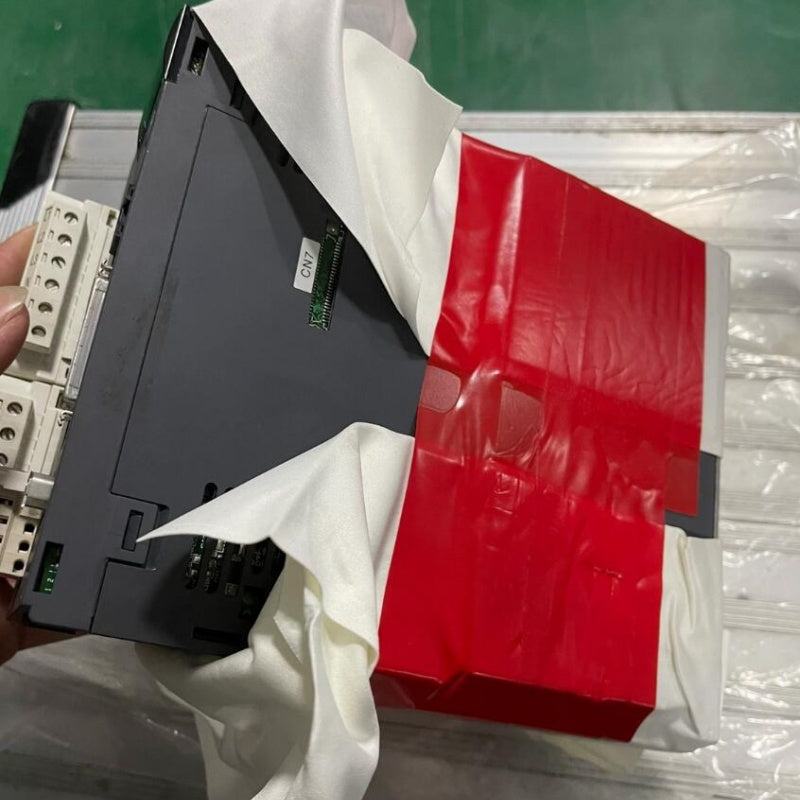

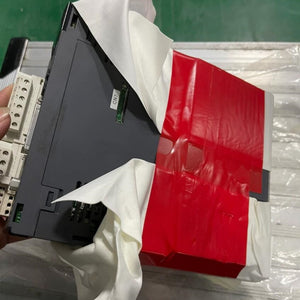

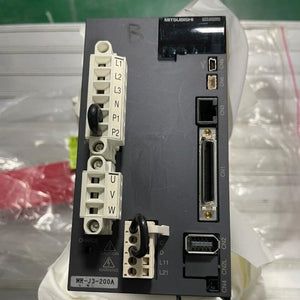

1PC used Mitsubishi MR-J3-200A Servo Drive #LYQ007
Item
Details
Model
MR-J3-200A
Series
MELSERVO-J3
Rated Output
2.0 kW
Power Supply
3-phase 200-230 VAC, 50/60 Hz
Permissible Voltage Fluctuation
170-253 VAC
Permissible Frequency Fluctuation
±5%
Rated Input Current
11 A
Rated Output Current
11 A
Control Method
Sine-wave PWM control, current control
Speed Response Frequency
2.1 kHz
Position Control Resolution
131,072 pulses/rev (17-bit encoder)
Item
Details
Control Modes
Position control, Speed control, Torque control
Regenerative Resistor
Built-in
Dynamic Brake
Built-in
Speed Control Range
1:5000
Torque Control Accuracy
±1% (rated torque)
Speed Control Accuracy
±0.01% (with encoder)
Position Control Accuracy
Within ±1 pulse (encoder resolution)
Item
Details
Ambient Temperature
Operation: 0 to +55°C (32 to 131°F)
Storage: -20 to +65°C (-4 to 149°F)
Ambient Humidity
90% RH or less (non-condensing)
Altitude
1,000 m or less above sea level
Vibration
5.9 m/s² max. (10 to 55 Hz)
Protection Grade
IP00 (open type)
Cooling Method
Forced ventilation (fan cooling)
Weight
Approx. 2.1 kg (4.6 lb)
