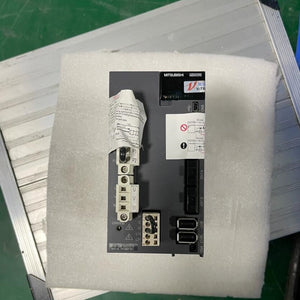

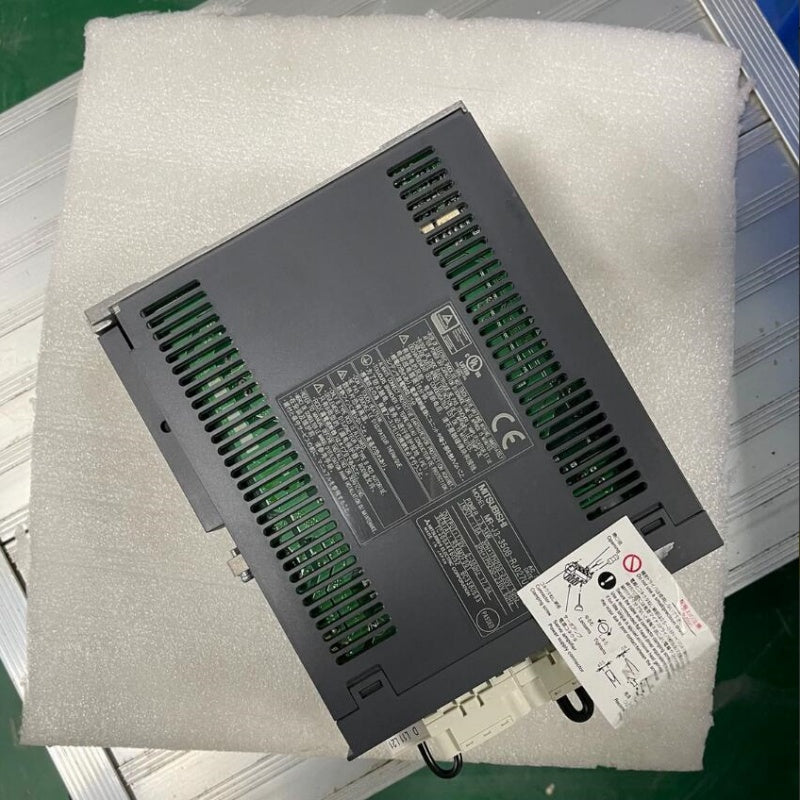

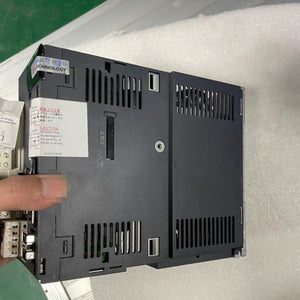

1 PCS used Mitsubishi MR-J3-350B-RJ027U510 Servo Drive#LYQ007
Item
Details
Model
MR-J3-350B-RJ027U510Mitsubishi Electric
Series
MELSERVO-J3Mitsubishi Electric
Rated Output
3.5 kW (3500 W)Mitsubishi Electric
Voltage Class
200 VAC classMitsubishi Electric
Control Method
Sine wave PWM control, Current controlMitsubishi Electric
Cooling Method
Forced ventilationMitsubishi Electric
Built-in Functions
Dynamic brake, Regenerative resistorMitsubishi Electric
Communication Interface
SSCNET III/H (optical fiber)Mitsubishi Electric
Weight
Approx. 2.7 kg
Dimensions (H×W×D)
168 mm × 90 mm × 195 mm
Item
Details
Main Circuit Power
Voltage / Frequency
3-phase AC 200–230 V, 50/60 Hz
Rated Current
16 A
Permissible Voltage Fluctuation
AC 170–253 V
Permissible Frequency Fluctuation
Within ±5%
Power Capacity
5.5 kVA
Inrush Current
120 A (decreases to approx. 12 A within 20 ms)
Control Circuit Power
Voltage / Frequency
Single-phase AC 200–230 V, 50/60 Hz
Rated Current
0–2 A
Permissible Voltage Fluctuation
AC 170–253 V
Power Consumption
30 W
Inrush Current
20–30 A (decreases to approx. 0 A within 1–2 ms)
Interface Power
Voltage
DC 24 V ±10%
Current Capacity
150 mA or more (for all I/O signals)
Item
Details
Control Modes
Position control, Speed control, Torque control
Positioning Resolution
131,072 pulses/rev (17-bit encoder)
Speed Control Range
1:5000 (0–3000 r/min)
Torque Control Accuracy
±1% of rated torque
Command Input Types
Pulse train, Analog voltage (0–±10 VDC)
Digital Inputs
7 points (24 VDC, sink/source)Mitsubishi Electric
Digital Outputs
4 points (open collector)Mitsubishi Electric
Analog Monitor Outputs
2 points (0–±10 VDC)Mitsubishi Electric
