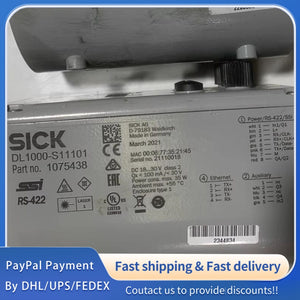

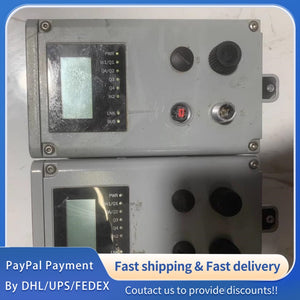

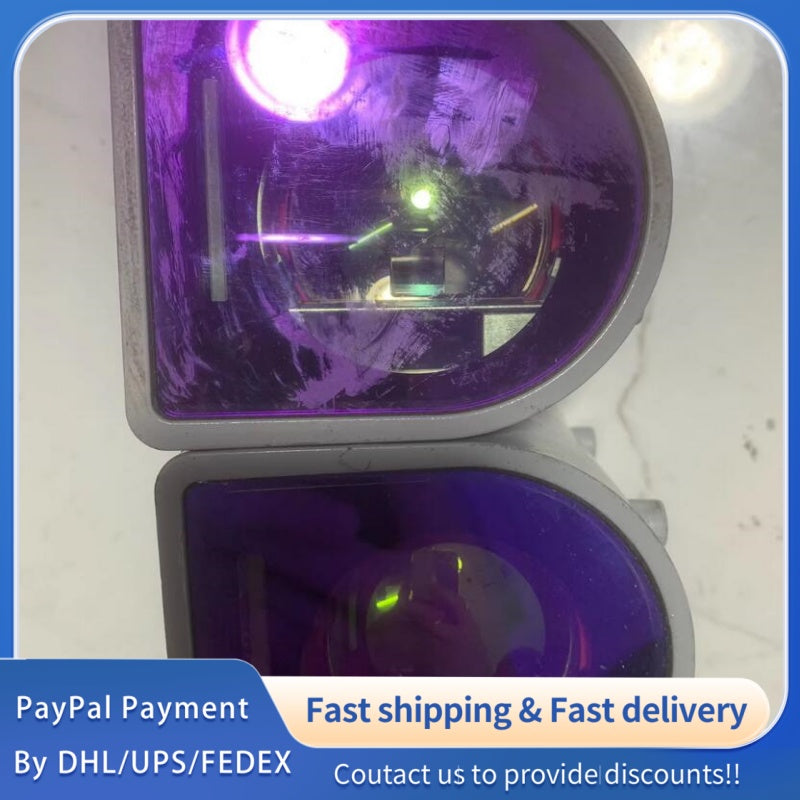

1 PCS USED SICK DL1000‑S11101 Laser Distance Sensor#LYQ007
1 PCS USED SICK DL1000‑S11101 Laser Distance Sensor#LYQ007
| Parameter | Value |
|---|---|
| Ordering Information | |
| Part Number | DL1000‑S11101 (1075438)SICK |
| Series | Dx1000 Long Range Distance SensorsSICK |
| Measurement Performance | |
| Measurement Principle | HDDM+SICK |
| Measuring Range | 0.2 m … 1,500 m (on diamond‑grade reflective tape)SICK |
| Target Type | ReflectorSICK |
| Resolution | 0.001 mm … 100 mm (adjustable)SICK |
| Repeatability | ≥ 1 mmSICK |
| Accuracy | Typ. ± 15 mmSICK |
| Response Time | 3 ms … 384 msSICK |
| Measurement Cycle Time | 1 ms / 4 ms / 16 msSICK |
| Output Time | ≥ 1 msSICK |
| Optical Data | |
| Light Source | Infrared (905 nm, measuring laser); Visible red (650 nm, alignment aid)SICK |
| Laser Class | 1 (IEC 60825‑1:2014, EN 60825‑1:2014)SICK |
| Typical Light Spot Size | 5×20 mm @ 1 m; 20×20 mm @ 5 m; 35×25 mm @ 10 m; 150×50 mm @ 50 m; 290×80 mm @ 100 m; 4200×920 mm @ 1500 mSICK |
| Average Laser Service Life | 100,000 h @ 25 °CSICK |
| Electrical Data | |
| Supply Voltage | 18 V … 30 V DC (reverse polarity protected)SICK |
| Ripple | ≤ 5 VppSICK |
| Power Consumption | ≤ 22 W (heating off); ≤ 35 W (heating on)SICK |
| Initialization Time | > 15 sSICK |
| Digital Inputs/Outputs | 2–4 push‑pull (PNP/NPN), max. 100 mA eachSICK |
| Analog Output | 1 × 4–20 mA (16‑bit resolution)SICK |
| Interfaces | Ethernet (TCP/IP); RS‑422 (switchable to SSI); SSI (switchable to RS‑422)SICK |
| Mechanical Data | |
| Housing Material | Aluminum alloy (AlSi12)SICK |
| Window Material | GlassSICK |
| Connection | M12 round connectors (8‑pin A‑coded; 5‑pin A‑coded; 4‑pin D‑coded Ethernet)SICK |
| Weight | 980 gSICK |
| Dimensions (W×H×D) | 84 mm × 104.4 mm × 140.5 mmSICK |
| Enclosure Rating | IP65, IP67SICK |
| Protection Class | III (EN 61140)SICK |
| Ambient Data | |
| Operating Temperature | –40 °C … +55 °C; –40 °C … +95 °C (with cooling case)SICK |
| Storage Temperature | –40 °C … +75 °CSICK |
| Max. Relative Humidity | ≤ 95 % (non‑condensing)SICK |
| Ambient Light Immunity | ≤ 100,000 lxSICK |
| Shock Resistance | 30 g / 6 ms (DIN EN 60068‑2‑27); 25 g / 6 ms (fatigue, 500 shocks)SICK |
| Filters & Functions | |
| Filters | Rain/snow, fog, moving average (distance/speed), KalmanSICK |
| Additional Functions | Distance/signal level selection; first/last echo selectionSICK |
| Max. Target Speed | 128 m/sSICK |
