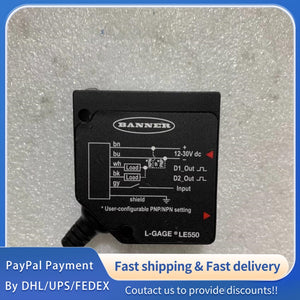

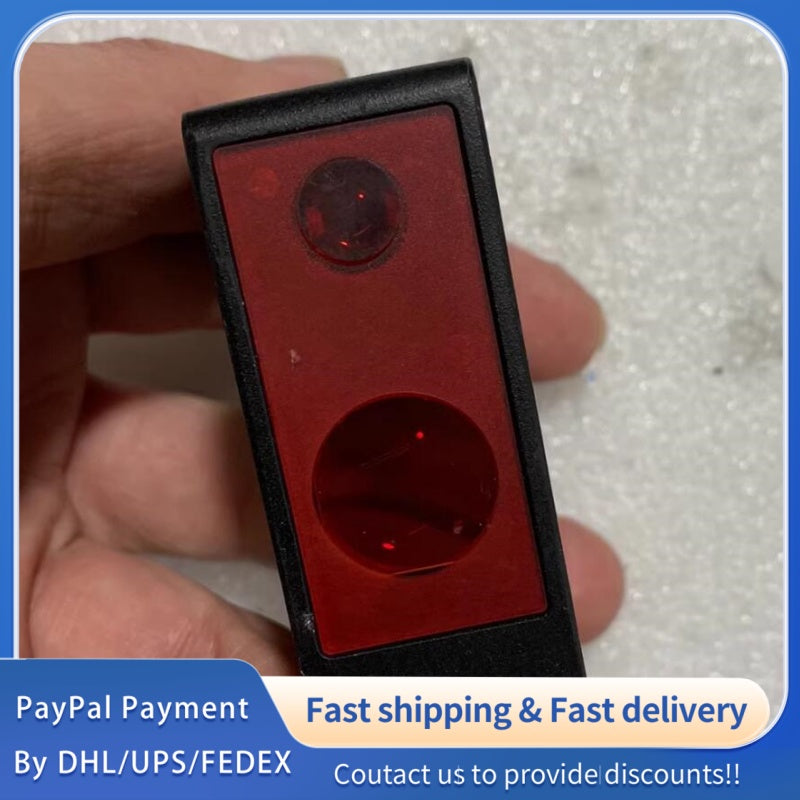

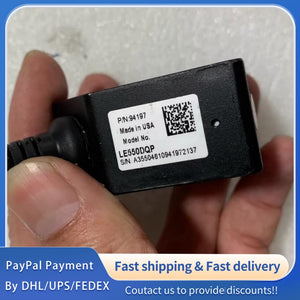

1 PCS USED Banner L-GAGE LE550DQP Laser Displacement Sensor #LYQ007
1 PCS USED Banner L-GAGE LE550DQP Laser Displacement Sensor #LYQ007
| Parameter | Value |
|---|---|
| Model | LE550DQP |
| Sensor Type | Laser Displacement Sensor (Triangulation) |
| Sensing Range | 100 mm to 1000 mm |
| Laser Type | Visible Red Laser, 650 nm |
| Laser Class | Class 2 |
| Supply Voltage | 12–30 V DC |
| Power Consumption | < 70 mA @ 24 V DC; 1.7 W typical |
| Outputs | 2 x Discrete (NPN/PNP Configurable) |
| Discrete Output Rating | 100 mA max; Short-circuit & overload protected |
| Response Time (Fast) | 2 ms |
| Measurement Rate | < 1 ms (Class 2) |
| Analog Resolution | < 0.5 mm (100–600 mm); < 1 mm (600–1000 mm) |
| Linearity | ≤ 0.5% of full scale (±4.5 mm) |
| Ambient Light Immunity | > 10,000 lux |
| Operating Temp | -20 °C to +55 °C |
| Storage Temp | -30 °C to +65 °C |
| Housing | Die-cast Zinc Alloy |
| Environmental Rating | IP67, NEMA 4X |
| Connection | 5-pin M12 Quick Disconnect (150 mm pigtail) |
| Weight | 0.55 lbs (0.25 kg) |
| Adjustment | Push-button Teach; Remote Teach |
| Certifications | CE, UL (Type 1) |
