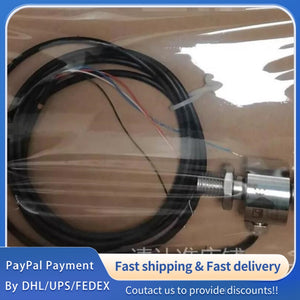

1 PCS new HBM Force Sensor 1-U9C/20KN #LYQ007
1 PCS new HBM Force Sensor 1-U9C/20KN #LYQ007
| Parameter | Value |
|---|---|
| Model | 1-U9C/20KN |
| Nominal (rated) force Fnom | 20 kN |
| Accuracy class | 0.2 |
| Nominal (rated) sensitivity Cnom | 1 mV/V |
| Sensitivity error dc | < ±1% (tensile), < ±2% (compressive) |
| Relative zero signal error ds,0 | ±0.2 mV/V |
| Non-linearity dlin | < 0.2% |
| Hysteresis v0.5 | < 0.2% |
| Relative creep (30 min) dcr,F | < 0.1% |
| Input resistance Ri | 300–450 Ω |
| Output resistance Ro | 145–450 Ω |
| Insulation resistance Ris | > 1×10⁹ Ω |
| Excitation voltage range Bu,gt | 0.5–12 V |
| Reference excitation voltage Uref | 5 V |
| Reference temperature t.ref | 23 °C |
| Nominal temperature range Bt,nom | -10 to +70 °C |
| Operating temperature range Bt,g | -30 to +85 °C |
| Storage temperature range Bt,S | -30 to +85 °C |
| Max. operating force FG | 150% of Fnom |
| Limit force FL | > 150% of Fnom |
| Breaking force FB | > 400% of Fnom |
| Limit torque | 23 Nm |
| Limit bending moment | 14.4 Nm |
| Static lateral limit force Fq | 6% of Fnom |
| Nominal (rated) displacement | 0.09 mm |
| Fundamental resonance frequency | 14.5 kHz |
| Degree of protection (EN 60529) | IP67 |
| Spring element material | Stainless steel |
| Cable | 4-wire, PUR insulation |
| Standard cable length | 1.5 m (open ends, no TEDS) |
| Weight | 100 g |
| Connection | 4-wire circuit |
