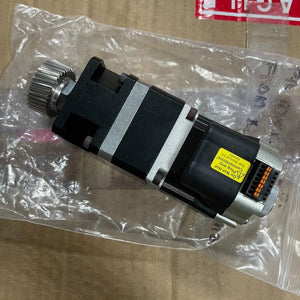

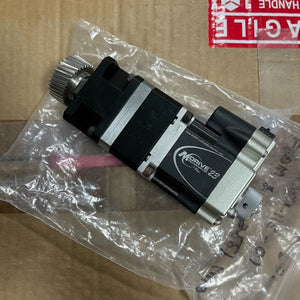

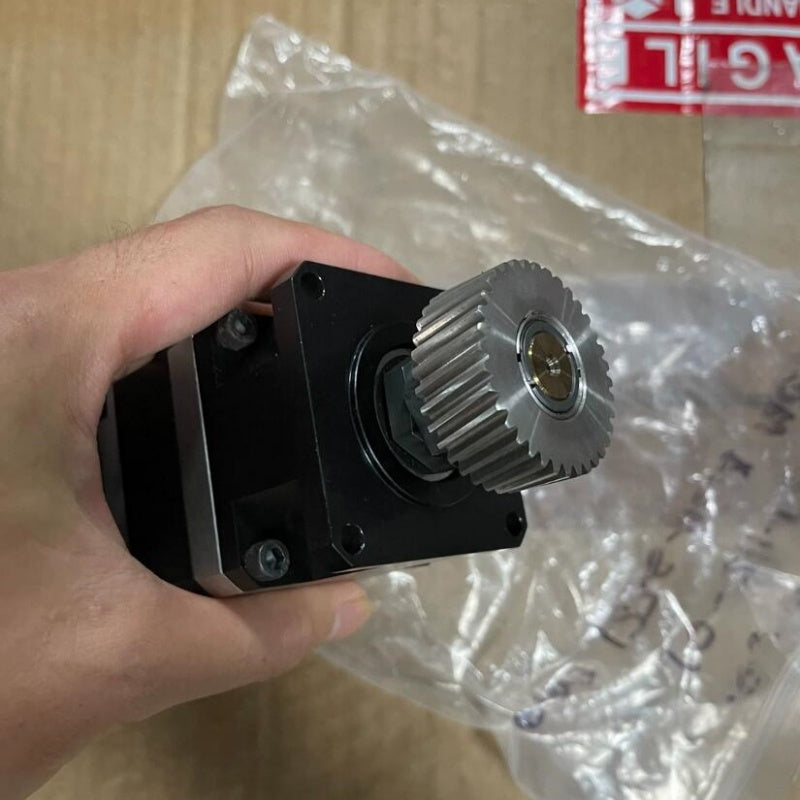

1 PCS USED MDrive 23 MD1PRL23A7-EQ-N Stepper Motor#LYQ007
Parameter
Value
Motor Frame
NEMA 23 (57 mm square flange)
Step Angle
1.8° (full step)
Microstep Resolution
Up to 51,200 steps/rev (programmable)
Input Voltage
+12 to +75 VDC
Phase Current (Max)
2.0 A (programmable run/hold)
Insulation Class
B
Protection Rating
IP20 (standard)
Communication
RS-422/485 (Multi-drop, up to 62 nodes)
Logic I/O
4 x 5-24 VDC (sink/source)
Analog Input
10-bit, 0-5V, 0-10V, 4-20mA
Parameter
Value
Linear Type
Non-captive (internal thread)
Lead Screw Lead
0.200 in/rev (5.08 mm/rev)
Max Thrust Force
50 lbs (22 kg)
Repeatability
±0.0005 in (±0.0127 mm)
Holding Torque
144 oz-in (102 N-cm)
Detent Torque
5.8 oz-in (4.1 N-cm)
Rotor Inertia
0.0035 oz-in-sec²
Weight
2.4 lbs (1.09 kg)
Length (Overall)
7.48 in (190 mm)
Parameter
Value
Operating Temp (Motor)
-40°C to +100°C
Operating Temp (Drive)
-40°C to +85°C
Storage Temperature
-55°C to +125°C
Humidity
Non-condensing, 5-95% RH
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products. Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc 2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world. 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures. 4. If you can not find the product you need in our store, please contact us .we will check it for you.
