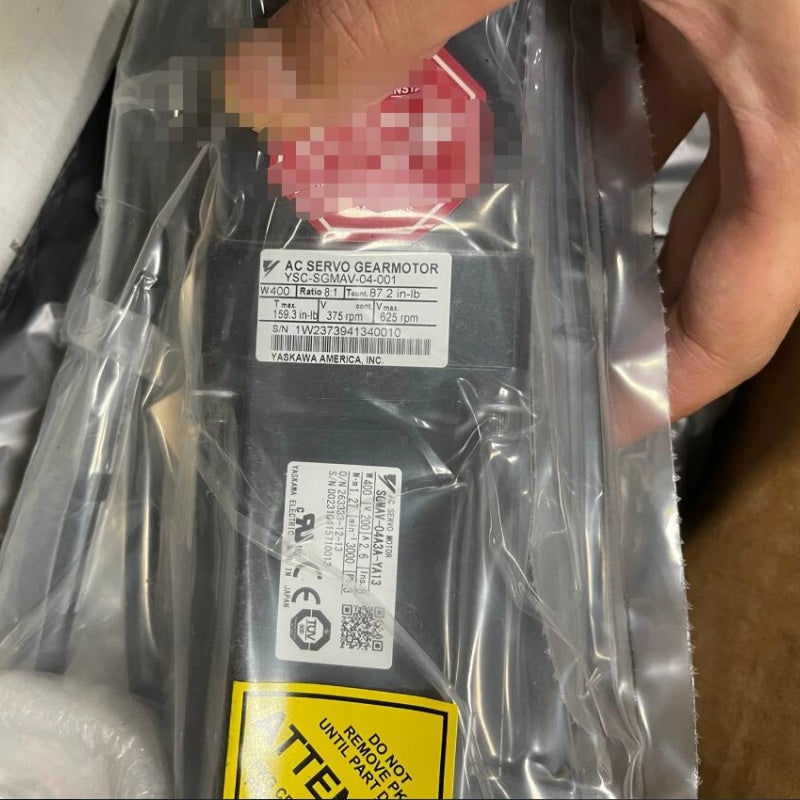

1 PCS new Yaskawa YSC-SGMAV-04-001 Servomotor #LYQ007
1 PCS new Yaskawa YSC-SGMAV-04-001 Servomotor #LYQ007
| Parameter | Value |
|---|---|
| Model | YSC-SGMAV-04-001 |
| Series | Σ-V (SGMAV) Low InertiaYaskawa |
| Rated Output | 0.4 kW (400 W) |
| Rated Torque | 1.27 N·m |
| Instantaneous Peak Torque | 3.82 N·m (300% of rated) |
| Rated Speed | 3000 min⁻¹ (rpm) |
| Maximum Speed | 6000 min⁻¹ (rpm) |
| Rated Current | 2.6 Aₗₘₛ |
| Instantaneous Max. Current | 8.5 Aₗₘₛ |
| Torque Constant | 0.539 N·m/Aₗₘₛ |
| Rotor Moment of Inertia | 0.74 × 10⁻⁴ kg·m² |
| Encoder Resolution | 20-bit (1,048,576 P/Rev) |
| Power Supply | 3-phase AC 200 V |
| Insulation Class | B |
| Dielectric Strength | AC 1500 V for 1 minute |
| Insulation Resistance | ≥ 10 MΩ at DC 500 V |
| Protection | Totally Enclosed, Self-cooled, IP65 (excluding shaft penetration) |
| Cooling Method | Self-cooled |
| Ambient Temperature | 0 ~ +40 °C (non-condensing) |
| Ambient Humidity | 20% ~ 80% RH (non-condensing) |
| Vibration Class | V15 |
| Excitation | Permanent Magnet |
| Mounting | Flange Mount |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
