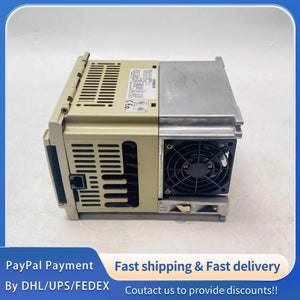

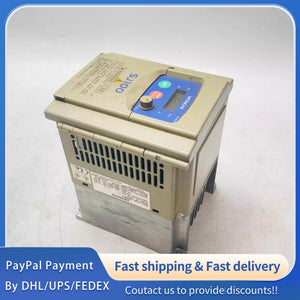

1 PCS USED HITACHI Inverter SJ100-002HFE #LYQ007
1 PCS USED HITACHI Inverter SJ100-002HFE #LYQ007
1 PCS USED HITACHI Inverter SJ100-002HFE #LYQ007
| Parameter Category | Parameter Name | SJ100-002HFE Specification |
|---|---|---|
| Basic Information | Product Model | SJ100-002HFE |
| Basic Information | Brand | HITACHI |
| Basic Information | Product Type | 400V Class Industrial Inverter |
| Basic Information | Applicable Motor Power | 0.2 kW (1/4 HP) |
| Basic Information | Rated Capacity (460V) | 0.5 kVA |
| Electrical Input | Rated Input Voltage | 3-phase 380–460 V AC ±10% |
| Electrical Input | Rated Input Frequency | 50/60 Hz ±5% |
| Electrical Input | Rated Input Current | 2.0 A |
| Electrical Output | Rated Output Voltage | 3-phase 0–460 V AC (follows input voltage) |
| Electrical Output | Rated Output Current | 1.6 A |
| Electrical Output | Output Frequency Range | 0.5–360 Hz |
| Electrical Output | Frequency Accuracy | Digital: ±0.01% of max frequency; Analog: ±0.1% of max frequency (25°C ±10°C) |
| Electrical Output | Frequency Resolution | Digital: 0.1 Hz; Analog: Max frequency / 1000 |
| Control Performance | Control Method | PWM; V/F Control (constant/reduced torque); Sensorless Vector Control (SLV) |
| Control Performance | Starting Torque | ≥200% at rated voltage (SLV, Hitachi standard 4-pole motor) |
| Control Performance | Acceleration/Deceleration Time | 0.1–3000 s (linear); 2nd acceleration/deceleration available |
| Control Performance | Overload Capacity | 150% rated current for 60 seconds |
| Braking | Dynamic Braking (No Resistor) | Approx. 20% torque (from 50/60 Hz) |
| Braking | Dynamic Braking (With Resistor) | Approx. 150% torque (short-time stop) |
| Braking | DC Injection Braking | Variable frequency, time, and braking force |
| I/O Interface | Frequency Setting Inputs | 0–10 V DC (10 kΩ); 4–20 mA (250 Ω); 1k–2k Ω potentiometer (2 W) |
| I/O Interface | Digital Inputs | 6 programmable inputs (FWD, REV, multi-speed, jog, 2-stage accel/decel, etc.) |
| I/O Interface | Digital Outputs | 2 programmable outputs |
| I/O Interface | Alarm Output | 1 C contact (configurable NO/NC for alarm) |
| I/O Interface | Communications | Optional SC-OPE3I (RS232/RS422/485) |
| Mechanical Parameters | Dimensions (H×W×D) | 120 × 67 × 107 mm |
| Mechanical Parameters | Net Weight | 0.7 kg (1.54 lb) |
| Mechanical Parameters | Enclosure Protection | IP20 |
| Mechanical Parameters | Housing Material | Die-cast aluminum + engineering plastic |
| Environmental Parameters | Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Environmental Parameters | Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Environmental Parameters | Operating Humidity | 20%–90% RH (non-condensing) |
| Environmental Parameters | Vibration Resistance | 5.9 m/s² (0.6 G), 10–55 Hz |
| Environmental Parameters | Altitude | ≤1000 m (indoors, no corrosive gases/dust) |
| Protection Functions | Core Protection | Overcurrent, overvoltage, undervoltage, overload, overheating, CPU error, memory error, ground fault detection (startup) |
| Efficiency & Loss | Efficiency (100% Load) | 90.5% |
| Efficiency & Loss | Power Loss (100% Load) | 19 W |
| Standards & Compliance | Compliance | IEC 61800-5-1, EN 61800-5-1, ANSI/UL 508 |
| Factory Calibration | Calibration Status | 100% factory calibrated per Hitachi standards |
| Factory Calibration | Recommended Calibration Cycle | 12 months (per maintenance guidelines) |
