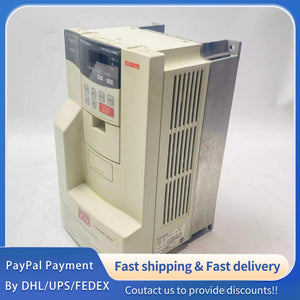

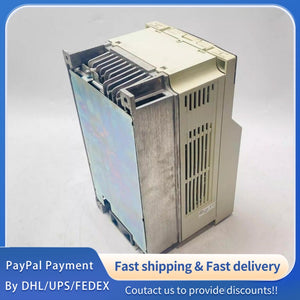

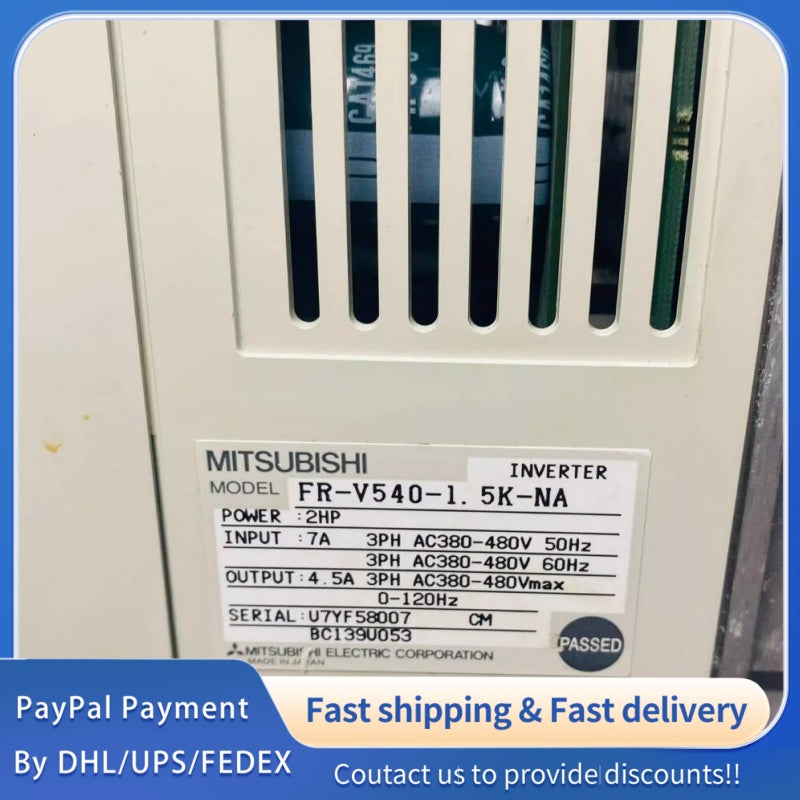

1 PCS used Mitsubishi Inverter FR-V540-1.5K-NA #LYQ007
1 PCS used Mitsubishi Inverter FR-V540-1.5K-NA #LYQ007
| Parameter Category | Parameter Name | FR-V540-1.5K-NA Specification |
|---|---|---|
| Basic Information | Product Model | FR-V540-1.5K-NA |
| Basic Information | Product Series | FR-V500 High Precision & Fast Response Vector Inverter |
| Basic Information | Rated Motor Power | 1.5 kW (2 HP) |
| Basic Information | Rated Capacity (kVA) | 3.1 kVA |
| Electrical Input | Input Phase | 3-Phase |
| Electrical Input | Rated Input Voltage | 380–480 V AC |
| Electrical Input | Rated Input Frequency | 50/60 Hz |
| Electrical Input | Permissible Voltage Fluctuation | 323–528 V AC |
| Electrical Input | Permissible Frequency Fluctuation | ±5% |
| Electrical Input | Recommended Power Supply Capacity | 5.0 kVA |
| Electrical Output | Output Phase | 3-Phase |
| Electrical Output | Rated Output Current | 4.5 A |
| Electrical Output | Output Voltage Range | 0–480 V AC (depending on input voltage) |
| Electrical Output | Output Frequency Range | 0.5–400 Hz |
| Electrical Output | Overload Current Rating | 150% for 60 s, 200% for 0.5 s (inverse-time characteristics) |
| Control Performance | Control Method | Vector Control (Sensorless / Encoder Feedback Optional) |
| Control Performance | Regenerative Braking Torque | 100% torque at 2% ED; 20% torque continuous |
| Control Performance | Instantaneous Voltage Drop Immunity | Operates at ≥330 V; sustains 15 ms at <330 V |
| Mechanical & Enclosure | Enclosure Protection Class | IP20 (Enclosed Type, JEM 1030) |
| Mechanical & Enclosure | Cooling Method | Forced Air Cooling |
| Mechanical & Enclosure | Approximate Mass | 3.5 kg |
| Environmental | Operating Temperature Range | -10 to +40 °C (non-freezing) |
| Environmental | Storage Temperature Range | -20 to +65 °C |
| Environmental | Operating Humidity Range | ≤90% RH (non-condensing) |
| Environmental | Maximum Altitude | 1000 m (derate 3% per 500 m up to 2500 m) |
| Environmental | Vibration Resistance | ≤5.9 m/s² (0.6 G) |
| Standards & Compliance | Safety Standards | Complies with IEC/EN 61800-5-1, UL 508C |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
