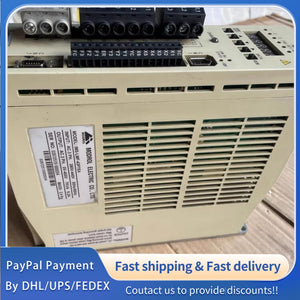

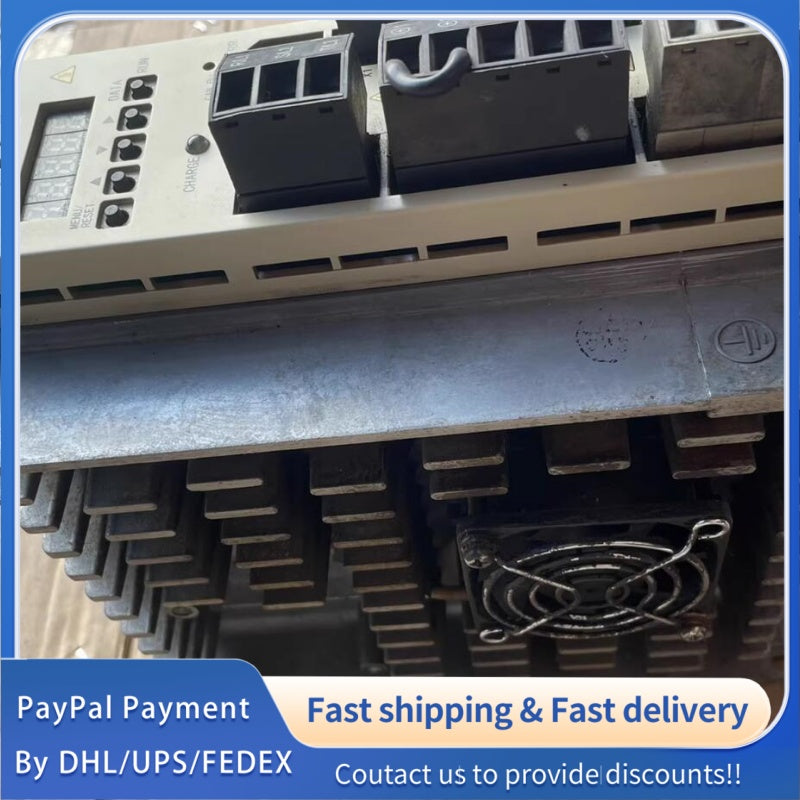

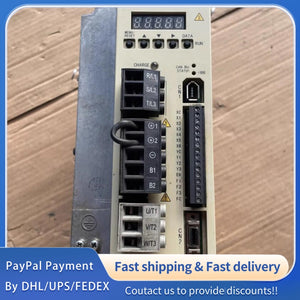

1 PCS used MODROL IMS‑LMF‑43P7E4 Inverter#LYQ007
1 PCS used MODROL IMS‑LMF‑43P7E4 Inverter#LYQ007
| Parameter Category | Parameter Name | IMS‑LMF‑43P7E4 Specification |
|---|---|---|
| Basic Specifications | Model | IMS‑LMF‑43P7E4 |
| Applicable Motor Power | 3.7 kW (400V‑class) | |
| Output Capacity (kVA) | 6.9 kVA | |
| Rated Output Current | 11 A | |
| Input Specifications | Input Voltage | 3‑phase 380 V ±10% (350–420 V) |
| Input Frequency | 50/60 Hz ±5% | |
| Allowable Voltage Fluctuation | +10%, −15% | |
| Allowable Frequency Fluctuation | ±5% | |
| Output Specifications | Output Voltage | 0–rated input voltage (3‑phase) |
| Output Frequency Range | 0.00–400.0 Hz (adjustable) | |
| Frequency Resolution | 0.01 Hz (digital setting) | |
| Overload Capacity | 150% for 1 minute, 200% for 0.5 seconds | |
| Control Performance | Control Mode | Sensorless vector control / V/F control |
| Speed Regulation Range | 1:100 (vector), 1:50 (V/F) | |
| Speed Stability | ±0.5% (rated frequency) | |
| Torque Boost | Automatic / manual adjustable | |
| Response Time | <20 ms (vector control) | |
| Electrical Characteristics | Control Power Supply | DC 24 V (internal) |
| Insulation Resistance | >100 MΩ (500 V DC) | |
| Dielectric Strength | 1500 V AC for 1 minute (between power and ground) | |
| EMC Compliance | Conforms to IEC 61800‑3 | |
| Environmental Parameters | Operating Temperature | −10°C to +50°C (non‑condensing) |
| Storage Temperature | −20°C to +60°C | |
| Operating Humidity | 5%–95% RH (non‑condensing) | |
| Vibration Resistance | 5.9 m/s² (0.6 g, 10–500 Hz) | |
| Protection Level | IP20 (enclosure) | |
| Mechanical Parameters | Dimensions (W×H×D) | 130 × 230 × 160 mm (typical) |
| Net Weight | Approx. 3.5 kg | |
| Mounting | Wall‑mounted / cabinet‑mounted | |
| Protection & Functions | Overvoltage Protection | Yes (DC bus detection) |
| Undervoltage Protection | Yes | |
| Overcurrent Protection | Yes (electronic thermal) | |
| Motor Overload Protection | Yes (electronic thermal relay) | |
| Stall Prevention | Yes (automatic current limiting) | |
| Fault History | Stores up to 10 recent faults | |
| Communication & Interface | Standard Interface | RS‑485 (Modbus RTU) |
| Optional Interface | CANopen, PROFIBUS‑DP (upon request) | |
| Analog Input | 0–10 V, 4–20 mA (2 channels) | |
| Digital Input | 8 channels (opto‑isolated) | |
| Relay Output | 2 channels (NO/NC) | |
| Other | Cooling Method | Forced air cooling |
| Service Life | ≥100,000 hours (under rated conditions) | |
| Certification | CE, CCC (compliant) |
