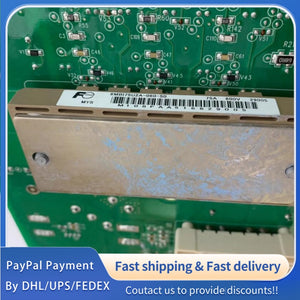

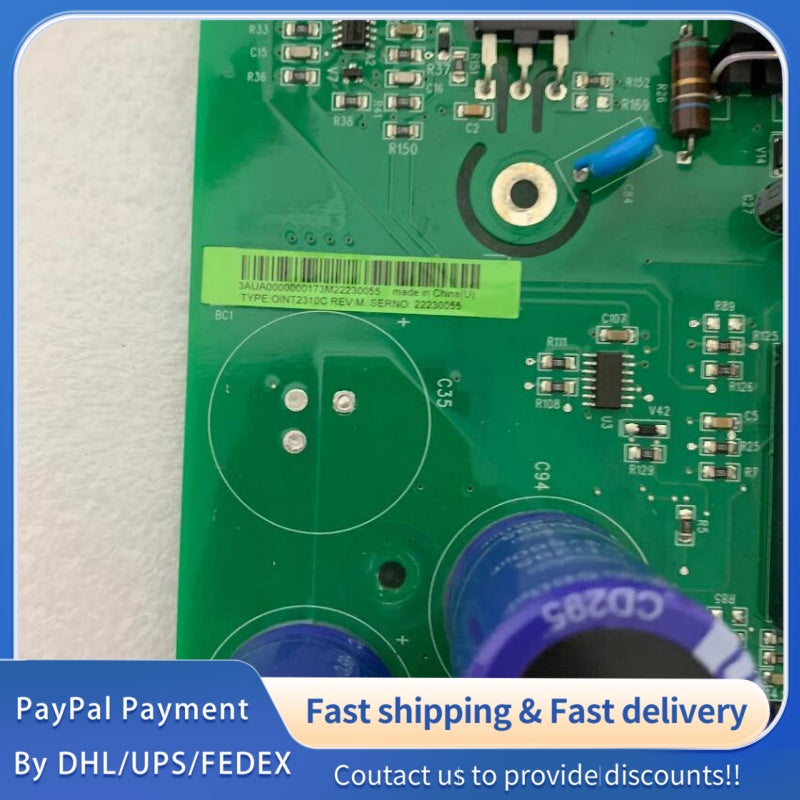

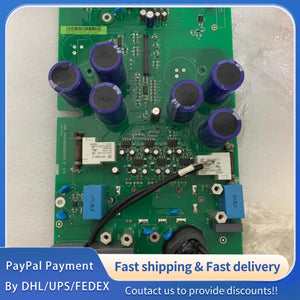

1 PCS used ABB Inverter Driver Board OINT‑2310C #LYQ007
1 PCS used ABB Inverter Driver Board OINT‑2310C #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | OINT‑2310C |
| Product Type | IGBT Driver Board |
| Compatible Inverter Series | ACS500 / ACS510 / ACS550 Series |
| Power Supply | 24 VDC ±10% |
| Input Signal | PWM control signals from main control board |
| Output Channels | 6‑channel IGBT gate drive (3‑phase) |
| Drive Voltage | +15 V / −8 V (typical) |
| Isolation Voltage | 2500 VAC (gate‑signal isolation) |
| Protection Features | Over‑current, short‑circuit, under‑voltage, over‑temperature, IGBT fault lockout |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5%–95% RH (non‑condensing) |
| Mounting | PCB mounting, cabinet‑internal installation |
| Protection Class | IP20 (enclosed cabinet use only) |
| Dimensions (L×W×H) | Approx. 160 mm × 120 mm × 25 mm |
| Weight | Approx. 0.25 kg |
| Certifications | CE, UL recognized |
