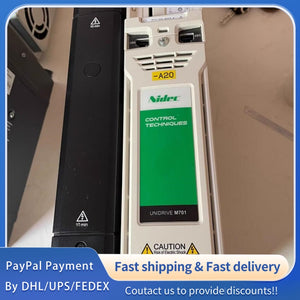

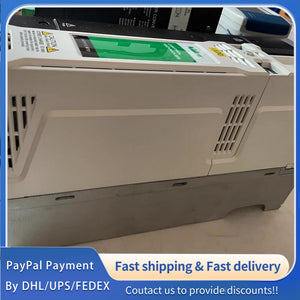

1 PCS used Nidec Control Techniques AC Servo Inverter Drive M701-05400270A #LYQ007
1 PCS used Nidec Control Techniques AC Servo Inverter Drive M701-05400270A #LYQ007
| Parameter Category | Parameter Name | M701-05400270A Specification |
|---|---|---|
| Basic Information | Product Model | M701-05400270A |
| Manufacturer | Nidec Control Techniques (CT) | |
| Product Series | Unidrive M701 | |
| Frame Size | 05 | |
| Input Phase | 3-Phase | |
| Output Phase | 3-Phase | |

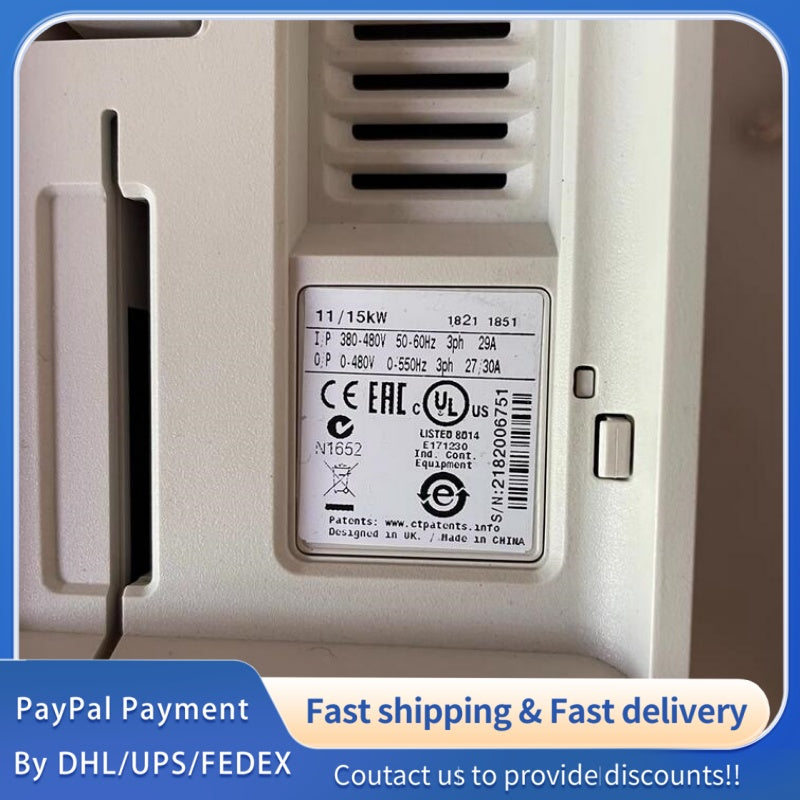

| Electrical Ratings | Input Voltage | 380–480 VAC ±10%, 50/60 Hz |
| Rated Output Current (Continuous) | 27 A | |
| Peak Output Current (1 min) | 42 A | |
| Normal Duty Motor Power | 11 kW / 15 HP | |
| Heavy Duty Motor Power | 15 kW / 20 HP | |
| Output Frequency Range | 0–599 Hz (Open‑loop); 0–560 Hz (RFC‑A/RFC‑S) | |
| Switching Frequency | 3 kHz | |
| Control Performance | Current Loop Bandwidth | Up to 3,300 Hz |
| Speed Loop Bandwidth | Up to 250 Hz | |
| Speed Accuracy | ±0.01% (preset speed) | |
| Motor Control Modes | Open/Closed‑loop Induction, RFC‑A, RFC‑S (PMSM/Servo) | |
| Communication & I/O | Onboard Communication | RS485 (Modbus RTU) |
| Analog Inputs | 3 (1 differential, 2 single‑ended) | |
| Analog Outputs | 2 | |
| Digital I/O | 3 programmable; 3 digital inputs (2 high‑speed, 250 μs) | |
| Relay Output | 1 NO, 250 VAC max | |
| Safe Torque Off (STO) | 1 input channel | |
| Option Slots | 3 (for SI modules: Encoder, Fieldbus, etc.) | |
| Mechanical & Environmental | Dimensions (H×W×D) | 365 × 143 × 200 mm |
| Weight | Approx. 7.4 kg / 16.3 lbs | |
| Protection Rating | IP20 (NEMA 1) | |
| Operating Temperature | -10°C to +50°C (derate above 40°C) | |
| Storage Temperature | -25°C to +70°C | |
| Humidity | 5–95% RH, non‑condensing | |
| Vibration Resistance | IEC 60068‑2‑6, 2–13.2 Hz, 1 mm; 13.2–100 Hz, 7 m/s² | |
| Shock Resistance | IEC 60068‑2‑27, 15 g, 11 ms | |
| General | Efficiency | Up to 98% |
| Cooling Method | Forced air cooling | |
| Certifications | CE, UL, cUL, EN 61800‑5‑1 | |
| Service Life | ≥ 50,000 hours (typical) |
