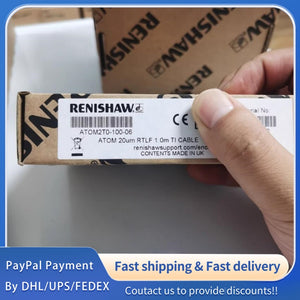

1 PCS new Renishaw ATOM2T0-100-06 Linear Encoder Readhead #LYQ007
1 PCS new Renishaw ATOM2T0-100-06 Linear Encoder Readhead #LYQ007
|
Parameter
|
Original Factory Value
|
|
Part Number
|
ATOM2T0-100-06
|
|
Product Category
|
Linear Encoder Readhead
|
|
Sensing Principle
|
Optical scanning, incremental encoding, high-precision grating detection
|
|
Grating Pitch Compatibility
|
100 μm (compatible with Renishaw standard 100μm pitch linear scales)
|
|
Output Signal
|
TTL incremental signal, A, B, Z (index) channels; differential output optional
|
|
Resolution (Optional)
|
Up to 0.1 μm (depending on external interpolation and grating pitch)
|
|
Maximum Traverse Speed
|
60 m/min (continuous operation, no signal loss)
|
|
Supply Voltage
|
5 V DC ± 5% (stable voltage input, low power consumption)
|
|
Power Consumption
|
≤ 150 mW (typical value at 5 V DC, no load)
|
|
Installation Gap
|
0.8 mm ± 0.2 mm (standard installation gap, stable scanning)
|
|
Connection Type
|
6-pin M12 male connector, quick connection, anti-interference
|
|
Housing Material
|
Anodized aluminum alloy, lightweight and corrosion-resistant
|
|
Protection Rating
|
IP64 (dustproof and splash-proof, suitable for industrial working environment)
|
|
Operating Temperature Range
|
0 °C to +70 °C (stable performance under normal industrial temperature)
|
|
Storage Temperature Range
|
−20 °C to +85 °C (no damage during storage and transportation)
|
|
Vibration Resistance
|
10 g (10 Hz to 2000 Hz), compliant with IEC 60068-2-6
|
|
Shock Resistance
|
100 g (11 ms), compliant with IEC 60068-2-27
|
|
Certifications
|
CE, RoHS, REACH (compliant with international industrial standards)
|
|
Dimensions (L×W×H)
|
Approx. 45 mm × 30 mm × 20 mm (compact design, easy to install in narrow space)
|
|
Weight
|
Approx. 35 g (lightweight, no additional load on the motion axis)
|
