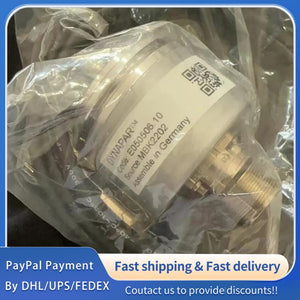

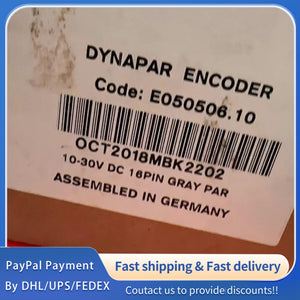

1 PCS NEW Dynapar Encoder E050506.10#LYQ007
1 PCS NEW Dynapar Encoder E050506.10#LYQ007
| Parameter Category | Parameter Name | E050506.10 Specification |
|---|---|---|
| Basic Information | Product Model | E050506.10 |
| Manufacturer | Dynapar (Danaher / Fortive) | |
| Encoder Type | Incremental Optical Encoder | |
| Mounting Style | Servo Mount / Flange Mount | |
| Shaft / Bore | 10mm Diameter Shaft | |
| Core Detection | Resolution (PPR) | 1024 PPR (Quadrature) |
| Response Frequency | ≤ 500 kHz | |
| Accuracy | ±7.5 arc-min (≤1024 PPR) | |
| Phase Relationship | A leads B by 90° electrical | |
| Index Pulse | 1 pulse/rev (Z-channel) | |
| Electrical | Supply Voltage | DC 5–26 V ±10% |
| Operating Current | ≤ 150 mA (max, excluding outputs) | |
| Output Type | RS422 Differential Line Driver | |
| Output Current | ≤ 40 mA per channel | |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC | |
| Withstand Voltage | 1 kV AC for 1 min | |
| Mechanical | Outer Diameter | 50 mm (1.96 in) |
| Dimensions (L×W×H) | 50 × 40 × 30 mm (typical) | |
| Weight | ≤ 0.2 kg | |
| Housing Material | Die-cast aluminum | |
| Shaft Material | Stainless steel | |
| Max Speed | 10,000 RPM | |
| Environmental | Operating Temperature | -20°C to +120°C |
| Storage Temperature | -40°C to +90°C | |
| Humidity | 0–95% RH (non-condensing) | |
| Vibration Resistance | 10–500 Hz, 3 g amplitude | |
| Shock Resistance | 100 m/s² (10 g), 11 ms | |
| Protection Rating | IP65 | |
| Other | Service Life | ≥ 50,000 hours |
| Indicator | Power LED (red) | |
| Wiring | 10-pin MS3106A-18-1S connector | |
| Certifications | CE, RoHS |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
