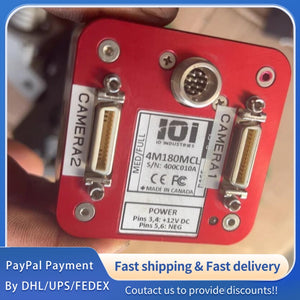

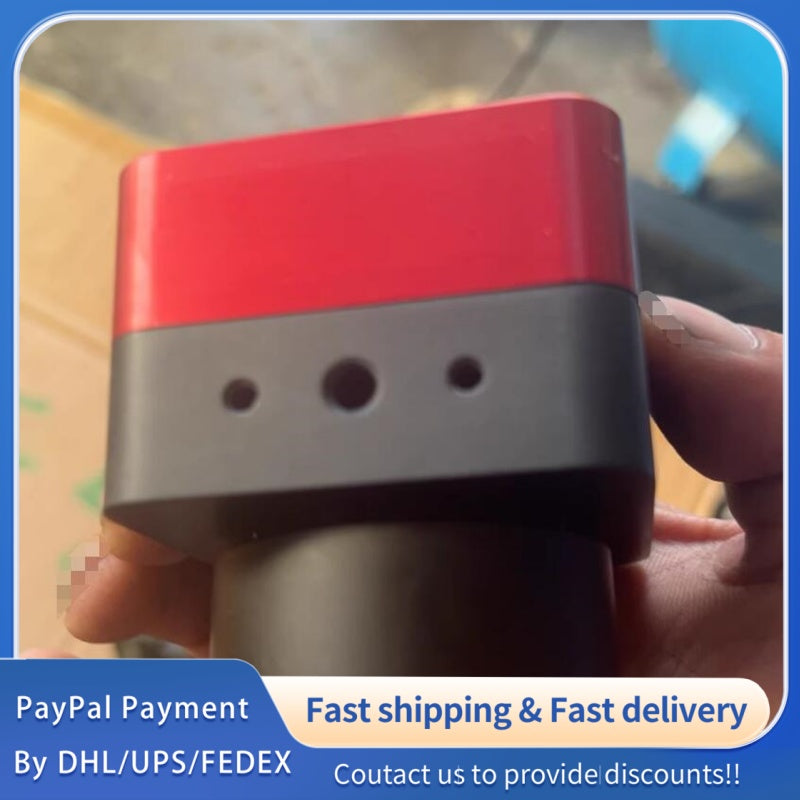

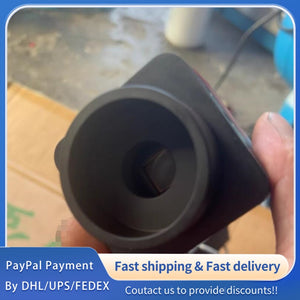

1 PCS used IO Industries Flare 4M180MCL High‑Speed Camera #LYQ007
1 PCS used IO Industries Flare 4M180MCL High‑Speed Camera #LYQ007
| Parameter Category | Parameter Name | 4M180MCL Specification |
|---|---|---|
| Basic Information | Model | Flare 4M180MCL (4M180‑CL) |
| Manufacturer | IO Industries | |
| Product Type | High‑speed industrial CMOS camera | |
| Interface | Camera Link (Base / Medium / Full / Full 80‑bit) | |
| Sensor | CMOS (CMV4000), 1‑inch format | |
| Shutter Type | Global shutter | |
| Image Performance | Resolution | 2048 × 2048 pixels |
| Pixel Size | 5.5 μm × 5.5 μm | |
| Max Frame Rate | 179 fps (8‑bit); 149 fps (10‑bit) | |
| Dynamic Range | ≥ 60 dB | |
| Bit Depth | 8‑bit / 10‑bit selectable | |
| Spectral Response | Monochrome / Color (Bayer) / NIR | |
| Electrical Parameters | Supply Voltage | 12 V DC (via Hirose or PoCL) |
| Power Consumption | Typical 2.5 W | |
| Trigger | External trigger / free‑run | |
| Exposure Control | Timed / trigger width | |
| Pixel Clock | 80 MHz | |
| Mechanical Parameters | Dimensions | 63.5 × 63.5 × 44.1 mm |
| Weight | 310 g | |
| Lens Mount | C‑mount / T‑mount (optional) | |
| Connectors | (2) MDR 26‑pin; (1) 12‑pin Hirose | |
| Environmental Parameters | Operating Temp | 0 °C to 50 °C |
| Storage Temp | –20 °C to 60 °C | |
| Humidity | 0–90% RH (non‑condensing) | |
| Vibration | IEC 60068‑2‑6 | |
| Shock | IEC 60068‑2‑27 | |
| General | Applications | Machine vision, motion capture, inspection, research |
| Firmware | Field‑upgradable | |
| Certifications | CE, RoHS |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
