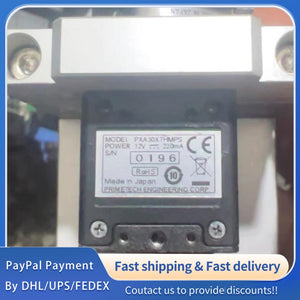

1 PCS used PrimeTech Industrial Camera PXA30XTHMPS #LYQ007
1 PCS used PrimeTech Industrial Camera PXA30XTHMPS #LYQ007
| Parameter Category | Parameter Name | PXA30XTHMPS Specification |
|---|---|---|
| Basic Information | Product Model | PXA30XTHMPS |
| Manufacturer | PrimeTech Engineering (Japan) | |
| Product Type | Industrial Analog CCD Camera (Monochrome) | |
| Application | Industrial Vision, Machine Vision, Inspection Systems | |
| Compliance | RoHS, CE, Industrial Safety Standards | |
| Imaging Parameters | Sensor Type | 1/3" Interline Transfer CCD |
| Resolution | 640 (H) × 480 (V) (VGA, 0.3MP) | |
| Pixel Size | 7.4 μm × 7.4 μm | |
| Scanning Mode | 2:1 Interlace / Progressive (External Sync) | |
| Frame Rate | 30 fps / 60 fps (selectable) | |
| Sensitivity | 400 lx (min gain, F4.0, gamma ON) | |
| Min. Illumination | 0.3 lx (max gain, F1.4, gamma ON) | |
| S/N Ratio | ≥ 60 dB | |
| Gamma Correction | ON/OFF selectable | |
| Gain Control | Manual / Auto (0–36 dB) | |
| Shutter & Trigger | Shutter Mode | Normal / External Trigger / Reset Mode |
| Shutter Speed | 1/60 s to 1/10,000 s (auto/manual) | |
| External Trigger | TTL level, 10 kΩ input impedance | |
| Trigger Pulse Width | 2 μs to 1/4 s | |
| Jitter | ≤ ±50 ns | |
| Electrical Parameters | Power Supply | DC 12 V ±10% |
| Power Consumption | ≤ 2.5 W | |
| Video Output | Analog CVBS (1.0 Vp‑p, 75 Ω) | |
| Sync | Internal / External VD/HD selectable | |

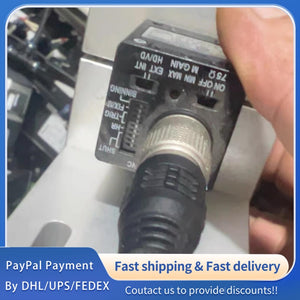

| I/O | SYNC, VIDEO OUT, DC IN, Trigger I/O | |
| Mechanical Parameters | Dimensions | Standard industrial camera housing (mm) |
| Mounting | C‑mount / CS‑mount compatible | |
| Weight | Approx. 150 g | |
| Housing Material | Metal (aluminum alloy) | |
| Environmental Parameters | Operating Temp | -10°C to +50°C |
| Storage Temp | -20°C to +60°C | |
| Humidity | 0–95% RH (non‑condensing) | |
| Vibration Resistance | 10–500 Hz, 3G | |
| Protection | IP30 (dust‑resistant) | |
| Other Features | ND Filter | Built‑in (selectable models) |
| Binning | 2×2 binning supported | |
| Warranty | 1 year factory warranty |
