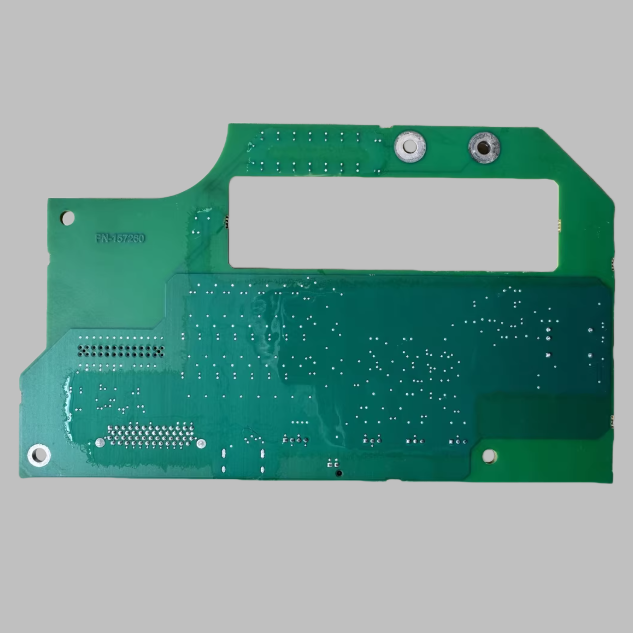

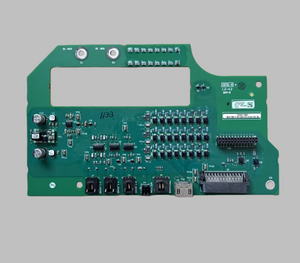

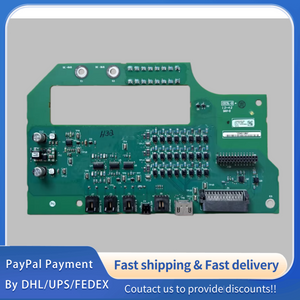

1PC used working PN-157266 PN-157260 Allen-Bradley internal service/sub-assembly part number for PowerFlex 700/700S/750 series medium-voltage industrial drives#QYM001 J1688
1PC used working PN-157266 PN-157260 Allen-Bradley internal service/sub-assembly part number for PowerFlex 700/700S/750 series medium-voltage industrial drives#QYM001 J1688
| Parameter Category | English Specification & Notes |
|---|---|
| Part Number Type | Non-catalog service/sub-assembly code; for internal repair, replacement, and component tracking only |
| Primary Board Function | IGBT gate signal modulation, power module status monitoring, overcurrent/overvoltage protection logic for medium-voltage drive units |
| Parent Product Compatibility | Exclusively paired with PowerFlex 700/700S/750 series drives (rated voltage: 480V–690V AC 3-phase); no cross-series compatibility with other AB drive lines |
| Public Spec Availability | No open-access electrical (gate drive voltage/current), thermal, or communication parameters. Exact specs are strictly tied to the parent drive’s model number, power rating, and firmware version |
| Reference (AB Standard Medium-Voltage Gate Driver PCB Example) | Gate Drive Voltage: ±15V DC; Max Gate Current: 8A; Operating Temperature: 0°C to 55°C (Non-condensing); Certifications: UL 508C, CE, RoHS |

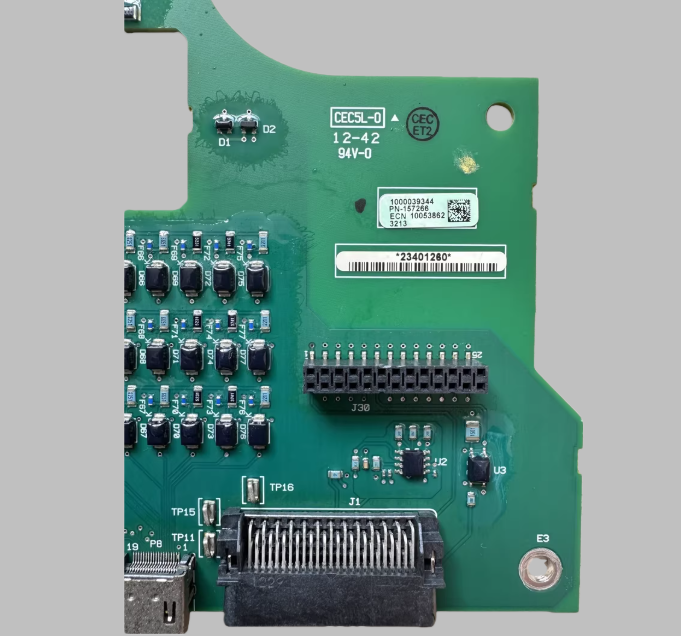

| Verification & Spec Retrieval Steps | 1. Check the board’s silkscreen for official AB catalog part numbers (e.g., 2094-xxx, 22A-xxx) or revision codes.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
