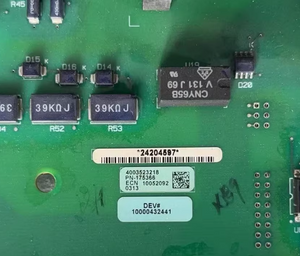

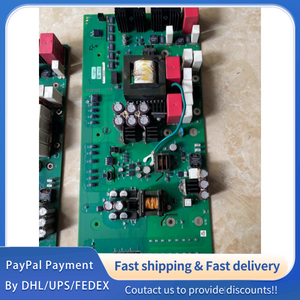

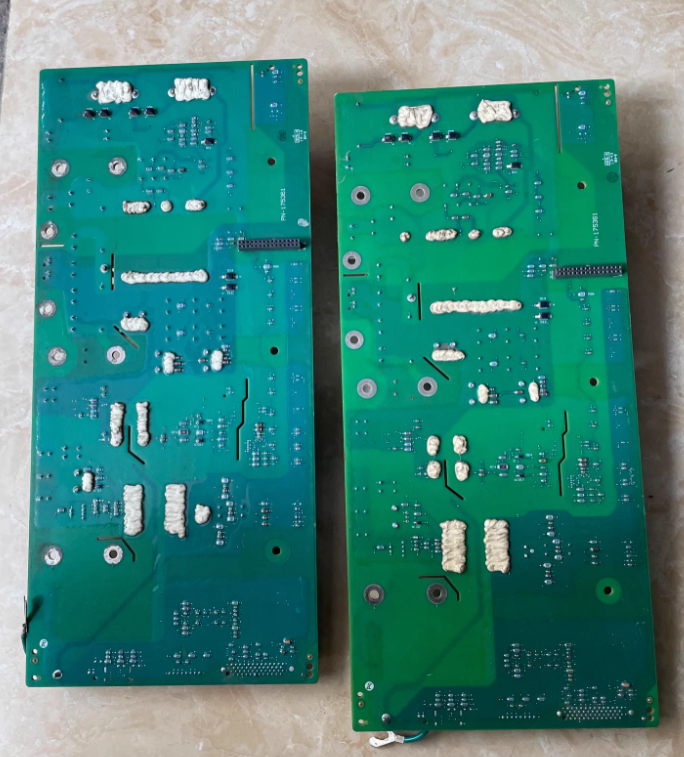

1PC used working PN-175366 the digital I/O expansion board/interface board of Allen-Bradley (AB) 1336F series frequency converters #QYM001 J1688
1PC used working PN-175366 the digital I/O expansion board/interface board of Allen-Bradley (AB) 1336F series frequency converters #QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | 1336F series frequency converters (e.g., 1336F-B030-AA-EN, 1336F-B040-AA-EN), corresponding to power range 15–400kW (subject to the main model) |
| Core Functions | Digital I/O expansion, signal isolation and level conversion, external button/indicator control, fault interlock signal transmission |
| Power Supply | Control power supply: DC 24V (derived from the frequency converter’s main control board); power consumption ≤ 5W |
| Interface Configuration | 8-channel digital inputs (sink/source selectable, 24V DC); 4-channel relay outputs (2A/250V AC); standard RS-485 (Modbus RTU) |
| Protection Functions | Input overvoltage protection, output short-circuit protection, reverse connection protection |
| Environment & Structure | Operating temperature: 0–55℃; PCB material: FR-4; protection class: IP20 (cabinet mounting) |
| Physical Specifications | Dimensions: approx. 120×80×25mm; weight: approx. 120g; PCB flame retardant rating: 94V-0 |
