1pc for USED Allen-Bradley Touch Screen 6182-CIDABC #LYQ007
1pc for USED Allen-Bradley Touch Screen 6182-CIDABC #LYQ007
1pc for USED Allen-Bradley Touch Screen 6182-CIDABC #LYQ007

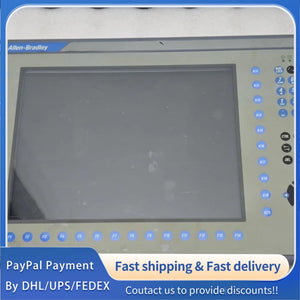

Part Number: 6182-CIDABC; Model: 6182-CIDABC; Product Name: Industrial Integrated Display Touch Screen (HMI)
Brand: Allen-Bradley (A core brand of Rockwell Automation, a global leader in industrial automation solutions, specializing in HMI, PLC, servo systems and other automation equipment, widely serving automotive, food and beverage, chemical, and electronic manufacturing industries.)
Product Status: Original Industrial-Grade HMI (Compliant with International Industrial Standards); Product Category: 6182 Series Integrated Display Computer, integrating touch screen and industrial computing functions for human-machine interaction and on-site control.
Core Application: Suitable for industrial control systems such as production lines, packaging machinery, material handling equipment, and process control stations. It realizes visual operation, parameter setting, data monitoring and fault feedback of on-site equipment, facilitating efficient human-machine collaboration.
Core Features: Integrated touch screen and industrial computer design; Industrial-grade TFT color display; Multiple communication interfaces for device connection; Compact structure for panel mounting; Wide voltage adaptation; Rich expansion slots; Compatible with Rockwell RSView software; Industrial-grade anti-interference and durability.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display & Touch Performance
Display Parameters: Screen Size 12.1 inches; Display Type Color TFT LCD; Resolution 800×600 pixels; Display Brightness Adjustable (Typical 300 cd/㎡); Contrast Ratio 500:1 (Typical); Viewing Angle ≥120° Horizontal, ≥100° Vertical; Backlight Life 50,000 hours (Typical).
Touch Screen Parameters: Touch Type Resistive Touch Screen (Industrial-Grade); Touch Accuracy ±2mm; Number of Touch Points Single Point; Response Time ≤15ms; Surface Protection Hardened Glass (Scratch-Resistant); Support for Stylus and Finger Operation.
2.2 Electrical Performance
Power Supply Parameters: Supply Voltage Range 120/240V AC (Auto-Ranging) or 18-32V DC (Dual-Voltage Optional); Rated Power Consumption Typical 60W, Maximum 75W; Power Connection 3-Contact Removable Terminal Block; Built-in Over-Voltage, Under-Voltage and Reverse Polarity Protection.
Processor & Storage: CPU 32-bit RISC Processor, 225 MHz; RAM Capacity 32 MB; Flash ROM Capacity 32 MB; Expansion Slots 2 Compact Flash Slots (for Storage Expansion); 1 PCI Slot (for Function Expansion).
2.3 Communication & Interface Specifications

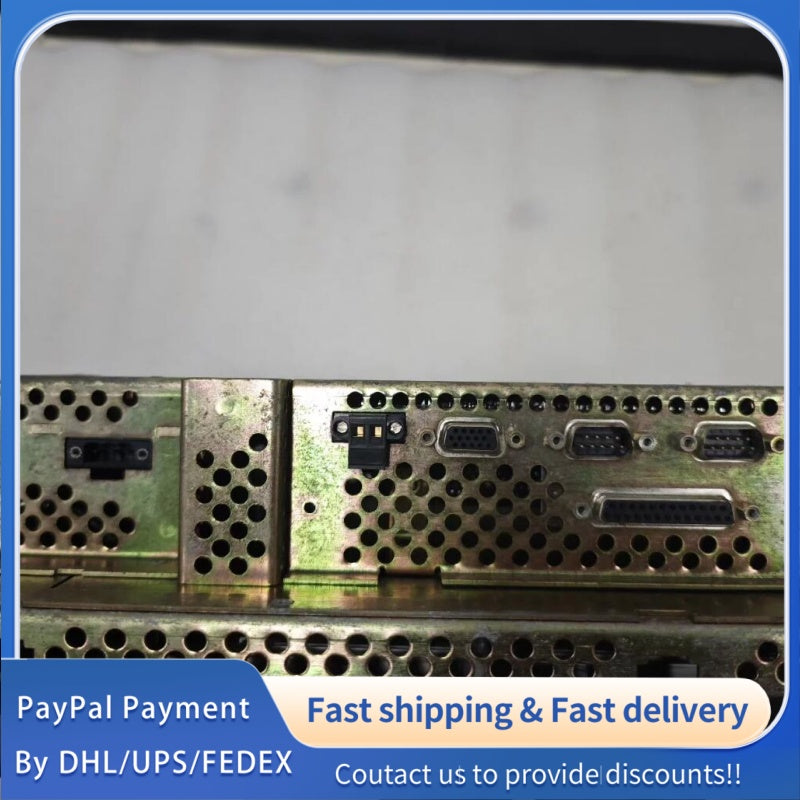

Communication Interfaces: 1×10/100 Mbps Ethernet Port (RJ45 Connector, Cat5 Twisted-Pair Cable); 2×Serial Ports (RS-232/RS-485 Selectable); 1×Parallel Port (for Peripheral Connection); 2×USB 2.0 Ports (for Mouse, Keyboard or Storage Devices).
Additional Interfaces: 1×VGA Port (for External Display Expansion); 1×PS/2 Mouse Port; 1×PS/2 Keyboard Port; 1×Relay Output (for Alarm or Control Signal Transmission); Supports Real-Time Data Transmission and Remote Monitoring.
2.4 Protection & EMC Specifications
Protection Functions: ESD Protection Compliant with EN 61000-4-2 (±8kV Contact, ±15kV Air); Surge Protection Compliant with EN 61000-4-5; Over-Temperature Protection (Automatic Alarm at 55℃); Short-Circuit Protection for Output Interfaces.
EMC Compliance: Compliant with EU EMC Directive 2014/30/EU; EN 55011 (Emission); EN 61326-1 (Immunity); Suitable for Industrial Environment Pollution Degree 2.
2.5 Environmental & Mechanical Specifications
Environmental Conditions: Operating Temperature 0℃ to 50℃ (32℉ to 122℉); Storage Temperature -20℃ to 60℃ (-4℉ to 140℉); Relative Humidity 5% - 95% (Non-Condensing); Altitude Up to 2000m (No Derating Required).
Mechanical Specifications: Mounting Type Panel Mount; Dimensions (W×H×D) 389.9mm × 256.8mm × 150mm (15.35in × 10.11in × 5.91in); Net Weight 3.2kg; Housing Material High-Strength Plastic (Impact-Resistant); Protection Level IP54/IP65 (Indoor Use) and NEMA 1, 12, 13, 4X.
2.6 Additional Features
Software & Configuration: Compatible with RSView Machine Edition V2.0 Software; Supports Parameter Backup/Restore and Firmware Upgrade; Built-in Real-Time Clock and CMOS SRAM; Fault Self-Diagnosis and Alarm Logging Functions.
Certifications & Others: CE Certified; UL Certified (for North American Market); RoHS Compliant; Operating Life 50,000 hours (Typical) at 25℃; Warranty 2 Years (Industrial Application, Original Installation).
<superscript>1 Source: Rockwell Automation Official Product Specification, 2025.
<superscript>2 Technical documents and software can be downloaded via Rockwell Automation official website, 2025.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
