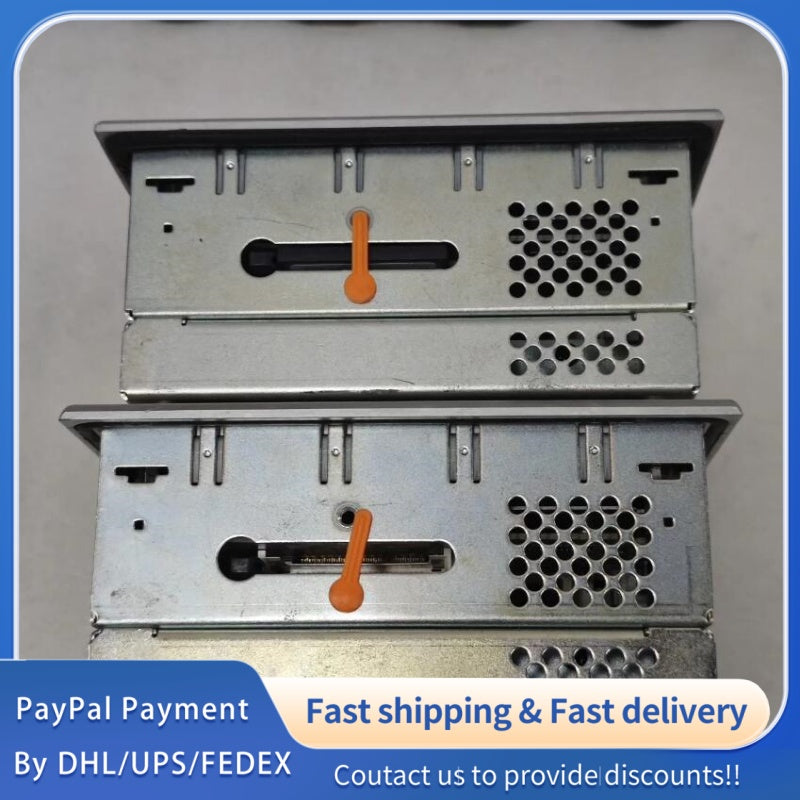

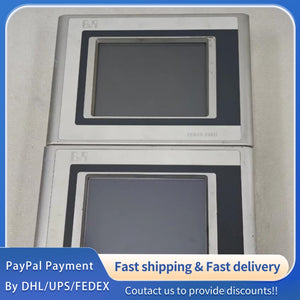

1 PCS USED B&R Touch Screen 4PP420.0571-75 #LYQ007
1 PCS USED B&R Touch Screen 4PP420.0571-75 #LYQ007
1 PCS USED B&R Touch Screen 4PP420.0571-75 #LYQ007
Part Number: 4PP420.0571-75; Model: 4PP420.0571-75; Product Name: 4PP420 Series Industrial Touch Screen Panel
Brand: B&R (B&R Industrial Automation, a global leader in industrial automation technology, specializing in integrated control systems, human-machine interfaces, motion control, and industrial communication solutions. Its products are widely applied in automotive manufacturing, packaging machinery, printing, and energy industries.)
Product Status: Original Industrial-Grade Touch Screen (Compliant with International Industrial HMI Standards); Product Category: 4PP420 Series HMI, belonging to B&R's industrial human-machine interface family, designed for intuitive operation and real-time data interaction in harsh industrial environments.
Core Application: Fully compatible with B&R Automation PC and PLC systems, suitable for automated production lines, intelligent equipment, and process control scenarios such as automotive assembly lines, packaging machinery, and industrial robots. It realizes visual operation, parameter setting, fault alarm display, and real-time data monitoring to bridge the gap between operators and industrial control systems.
Core Features: High-definition TFT LCD display; multi-touch capacitive touch technology; industrial-grade anti-interference and durability; seamless integration with B&R automation systems; compact design for cabinet or panel mounting; built-in diagnostic functions; support for standard industrial communication protocols; stable operation in extreme temperature and humidity environments.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display & Touch Performance
Display Parameters: Screen Size 7 inches; Display Technology TFT LCD with LED backlight; Resolution 800×480 pixels (WVGA); Aspect Ratio 16:9; Brightness 350 cd/㎡ (adjustable); Contrast Ratio 1000:1; Viewing Angle ±85° (horizontal), ±80° (vertical); Backlight Lifespan ≥50,000 hours (typical); Display Color 262,144 colors (18-bit).
Touch Parameters: Touch Technology Capacitive Multi-Touch (2 points); Touch Accuracy ±2 mm (at center area); Response Time ≤15 ms; Touch Durability ≥10 million touches per position; Surface Treatment Anti-glare, scratch-resistant hard coating (7H hardness); Operating Method Finger touch (gloved hand compatible with optional setting).
2.2 Electrical Performance
Power Supply Parameters: Rated Input Voltage 24V DC (regulated); Voltage Fluctuation Range ±10% of rated voltage; Maximum Input Current 300 mA; Power Consumption ≤7.2W (under full-load operation); Standby Power Consumption ≤1W; Reverse Polarity Protection Built-in, preventing damage from incorrect wiring.

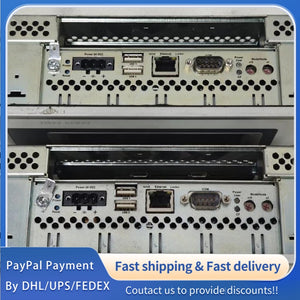

Signal Interface: Communication Interfaces 1×Ethernet (RJ45, 10/100 Mbps), 1×USB 2.0 Host (Type A), 1×RS485 (half-duplex, configurable); Interface Protocols Support B&R Automation Bus, Modbus RTU/TCP, Ethernet/IP (optional); Internal Bus Compatible with B&R POWERLINK (for high-speed data exchange with PLC).
2.3 Protection & EMC Specifications
Protection Functions: Overcurrent Protection (power input, trigger threshold 500 mA); Over-Temperature Protection (internal circuitry, trigger temperature ≥85℃); Short-Circuit Protection (USB and communication interfaces, automatic current limiting); Anti-static Protection Compliant with IEC 61000-4-2 (±8kV contact discharge, ±15kV air discharge).
EMC Compliance: Compliant with IEC 61000-6-2 (industrial immunity) and IEC 61000-6-4 (industrial emission); Surge Protection Compliant with IEC 61000-4-5 (±2kV differential mode, ±4kV common mode); Meets EU EMC Directive 2014/30/EU; EMC Emission Level Class B (for industrial and commercial environments).
2.4 Environmental & Mechanical Specifications
Environmental Conditions: Operating Temperature -20℃ to 60℃; Storage Temperature -40℃ to 85℃; Relative Humidity 5% - 95% (non-condensing, no dew formation); Altitude ≤2000m (no derating), 2000-4000m (derating 1% per 100m); Vibration Resistance Complies with IEC 60068-2-6 (1g acceleration, 10-500Hz frequency); Shock Resistance Complies with IEC 60068-2-27 (15g acceleration, 11ms duration).
Mechanical Specifications: Mounting Type Panel Mount (flush mounting); Housing Material High-strength flame-retardant polycarbonate (UL94 V0 grade); Protection Level IP65 (front panel, IEC/EN 60529), IP20 (rear housing); Dimensions (W×H×D) 192×110×45 mm; Cutout Dimensions (W×H) 182×100 mm; Weight Approximately 0.5kg (net weight).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
