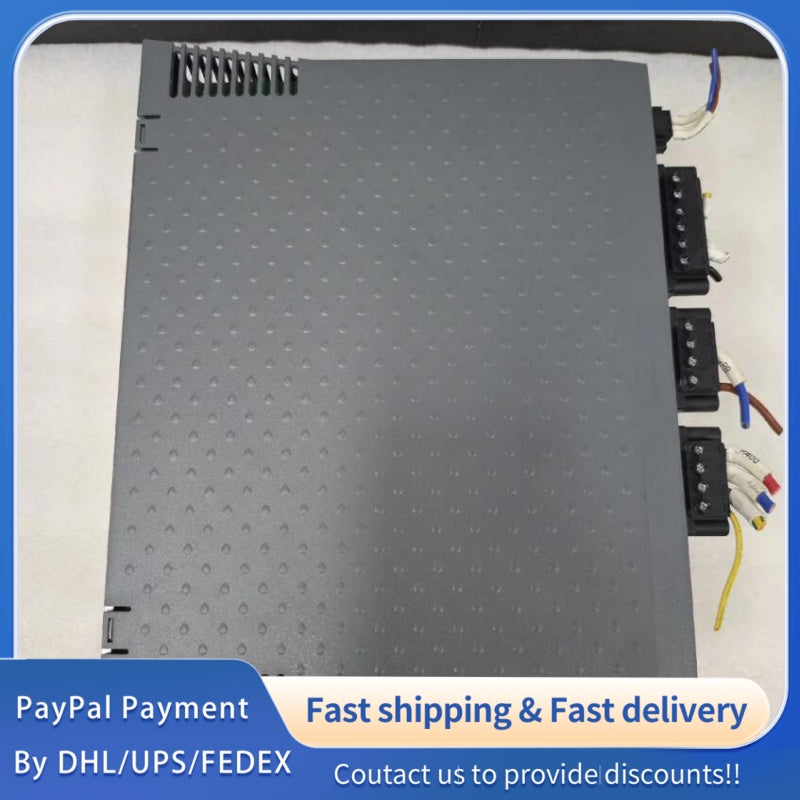

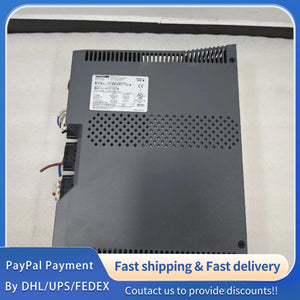

1PC for used Kollmorgen Servo Drive Controller AKD-P02407-NBEC-0000 #LYQ007
1PC for used Kollmorgen Servo Drive Controller AKD-P02407-NBEC-0000 #LYQ007
1PC for used Kollmorgen Servo Drive Controller AKD-P02407-NBEC-0000 #LYQ007
Part Number: AKD-P02407-NBEC-0000; Model: AKD-P02407-NBEC-0000; Product Name: Kollmorgen AKD-P02407-NBEC-0000 High-Precision Servo Drive Controller; Product Series: Kollmorgen AKD Series, Next-Generation Industrial Servo Drive Controllers
Brand: Kollmorgen (Kollmorgen Corporation, a global leader in motion control solutions with over a century of engineering expertise. Specializing in high-performance servo drives, motors, and controllers, Kollmorgen serves automotive, aerospace, electronics manufacturing, robotics, and precision machining industries worldwide. The brand is renowned for its innovative motion control algorithms and seamless system integration capabilities, delivering ultra-accurate and reliable motion performance.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: 3-Phase AC Servo Drive Controller, engineered to provide precise position, speed, and torque control for AC servo motors, featuring advanced feedback integration and real-time communication for complex automation systems.
Core Application: Widely integrated with Kollmorgen servo motors (including DD motors) in scenarios such as precision CNC machining, large turntable systems, robotic arms, electronic component placement machines, linear motion stages, and high-precision automation equipment. Specifically suitable for applications requiring 24A continuous output current, 400V-class power supply, and high-resolution feedback via linear or rotary encoders.
Core Features: Advanced Field-Oriented Control (FOC) and ServoBoost™ technology for superior dynamic response and torque ripple suppression; Support for high-resolution absolute encoders (up to 26-bit) including BiSS-C protocol for precision positioning; Rich built-in communication protocols and expandable interfaces for flexible system integration; Compact DIN-rail mounting design for space-saving installation; Comprehensive protection functions for drive, motor, and system safety; Compatible with Kollmorgen WorkBench software for intuitive parameter configuration and diagnostics.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Input Power Supply: 3-Phase AC 380~480V ±10% (50/60Hz), Voltage Frequency Range: 47Hz ~ 63Hz; Control Circuit Power: DC 24V ±10% (Redundant Power Supply Supported), Current Consumption: <60mA at 24VDC;
Output Parameters: Rated Output Current: 24A (Continuous), Peak Output Current: 72A (3s Duration, 3×Rated Current); Output Voltage: 0~Input Voltage (Variable Frequency, Variable Voltage); Output Frequency Range: 0Hz ~ 1kHz, Frequency Resolution: 0.01Hz; Torque Control Accuracy: ±0.3% of Rated Torque, Speed Regulation Accuracy: ±0.01% of Rated Speed;
Power Consumption: ≤5kW (Normal Operation), ≤15kW (Peak Load); Insulation Performance: Insulation Resistance ≥100MΩ (500V DC), Dielectric Strength: 2.5kV AC for 1 Minute (Between Power Circuit and Signal Circuit); Isolation Withstand Voltage: 2500VDC/Minute.
2.2 Control & Signal Processing Parameters
Control Modes: Position Control (Pulse/Direction, CW/CCW, A/B Phase), Speed Control (Analog Input, Communication Command), Torque Control (Analog Input, Communication Command), and Hybrid Control Modes (Switchable via Parameter or External Signal); Positioning Accuracy: ±1μm (Matching with 26-bit BiSS-C Encoder);
Encoder Interfaces: Built-in Absolute Encoder Interface (SSI, BiSS-C, EnDat 2.2), Incremental Encoder Interface (A/B/Z Phase, Differential Input, 1Vpp Sin/Cos); Encoder Resolution Support: Up to 26-bit Absolute, 1MHz Incremental Signal Frequency, compatible with 1μm linear gratings for large-diameter turntable applications;
Signal Input/Output: 8×Optically Isolated Digital Inputs (DC 24V, Response Time ≤0.5ms), 4×Programmable Digital Outputs (Transistor Output, DC 24V, 1A per Channel); 2×Analog Inputs (0~10V DC / 4~20mA, 16-bit Resolution), 1×Analog Output (0~10V DC, 16-bit Resolution, Configurable for Current/Speed/Torque Feedback); Input Current Impedance: <2Ω for AC Current Signals.
2.3 Communication Parameters
Built-in Communication Ports: RS-485 (Half-Duplex, Optically Isolated, Supporting Modbus RTU Protocol), Ethernet Port (10/100 Mbps, RJ45 Interface, Supporting EtherNet/IP, Modbus TCP/IP Protocols); Optional PROFINET IO/ EtherCAT Expansion Modules for real-time motion control;
Data Transmission Rate: 9600~115200 bps (RS-485), 100 Mbps (Ethernet); Communication Distance: Up to 1200m for RS-485 (Without Repeater), 100m for Ethernet; Communication Latency: ≤1ms (EtherNet/IP Real-Time Mode); Extended Compatibility: Supports Connection with Kollmorgen WorkBench Software, PLCs, HMIs, and Third-Party SCADA/MES Systems via Standard Protocols.
