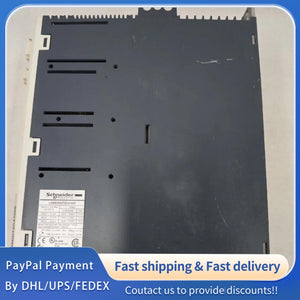

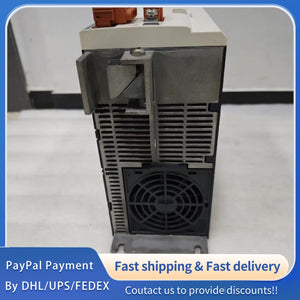

1pc used Schneider Servo Drive LXM52DD72C41000 #LYQ007
1pc used Schneider Servo Drive LXM52DD72C41000 #LYQ007
1pc used Schneider Servo Drive LXM52DD72C41000 #LYQ007
Part Number: LXM52DD72C41000; Model: LXM52DD72C41000; Product Name: Schneider LXM52DD72C41000 High-Performance Servo Drive; Product Series: Schneider LXM52 Series, Compact Precision Servo Drives for Industrial Motion Control
Brand: Schneider Electric (Schneider Electric SE, a global leader in energy management and automation solutions. With decades of expertise in industrial control, Schneider delivers reliable servo systems tailored for high-precision motion applications, serving automotive, electronics manufacturing, packaging, robotics, and material handling industries worldwide. The brand is renowned for its integrated automation ecosystems, ensuring seamless compatibility with controllers, motors, and software.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: 3-Phase AC Servo Drive, engineered to provide precise speed, torque, and position control for AC servo motors, enabling high-dynamic response and ultra-accurate motion performance in complex automation systems.
Core Application: Widely integrated with Schneider BMH/BMS series servo motors in scenarios such as precision CNC machining, electronic component placement machines, robotic arms, automated assembly lines, high-speed packaging equipment, and linear motion systems. Specifically suitable for applications requiring 72A continuous output current, 400V-class power supply, and seamless communication with industrial control networks.
Core Features: Advanced FOC (Field-Oriented Control) algorithm for superior torque ripple suppression and dynamic response; Compact DIN-rail mounting design for space-saving installation; Rich built-in communication protocols for flexible system integration; Comprehensive protection functions for drive and motor safety; Support for multiple control modes and encoder interfaces; Compliance with international industrial safety and EMC standards; Compatible with Schneider SoMove configuration software for easy parameter setting and maintenance.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Input Power Supply: 3-Phase AC 380~480V ±10% (50/60Hz), Voltage Frequency Range: 47Hz ~ 63Hz; Control Circuit Power: DC 24V ±10% (Optional, Redundant Power Supply Supported);
Output Parameters: Rated Output Current: 72A (Continuous), Peak Output Current: 216A (3s Duration, 3×Rated Current); Output Voltage: 0~Input Voltage (Variable Frequency, Variable Voltage); Output Frequency Range: 0Hz ~ 1kHz, Frequency Resolution: 0.01Hz; Torque Control Accuracy: ±0.5% of Rated Torque, Speed Regulation Accuracy: ±0.02% of Rated Speed;
Power Consumption: ≤8kW (Normal Operation), ≤24kW (Peak Load); Insulation Performance: Insulation Resistance ≥100MΩ (500V DC), Dielectric Strength: 2kV AC for 1 Minute (Between Power Circuit and Signal Circuit).
2.2 Control & Signal Processing Parameters
Control Modes: Position Control (Pulse/Direction, CW/CCW, A/B Phase), Speed Control (Analog Input, Communication Command), Torque Control (Analog Input, Communication Command), and Hybrid Control Modes (Switchable via Parameter or External Signal);
Encoder Interfaces: Built-in Absolute Encoder Interface (SSI, BiSS-C, EnDat 2.2), Incremental Encoder Interface (A/B/Z Phase, Differential Input, 1Vpp Sin/Cos); Encoder Resolution Support: Up to 23-bit Absolute, 1MHz Incremental Signal Frequency;
Signal Input/Output: 8×Optically Isolated Digital Inputs (DC 24V, Response Time ≤1ms), 4×Programmable Digital Outputs (Transistor Output, DC 24V, 1A per Channel); 2×Analog Inputs (0~10V DC / 4~20mA, 16-bit Resolution), 1×Analog Output (0~10V DC, 16-bit Resolution, Configurable for Current/Speed/Torque Feedback).
2.3 Communication Parameters
Built-in Communication Ports: RS-485 (Half-Duplex, Optically Isolated, Supporting Modbus RTU Protocol), Ethernet Port (10/100 Mbps, RJ45 Interface, Supporting Modbus TCP/IP, EtherNet/IP Protocols); Optional PROFINET IO/ EtherCAT Expansion Modules;
Data Transmission Rate: 9600~115200 bps (RS-485), 100 Mbps (Ethernet); Communication Latency: ≤1ms (EtherNet/IP Real-Time Mode); Extended Compatibility: Supports Connection with Schneider PLCs, HMIs, and SoMove Software for Parameter Configuration, Data Logging, and Remote Monitoring; Compatible with Third-Party SCADA/MES Systems via Standard Protocols.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
