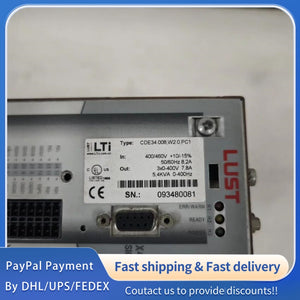

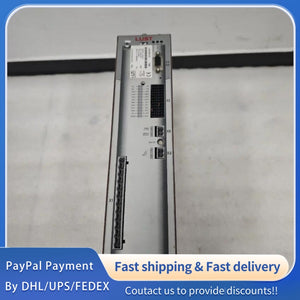

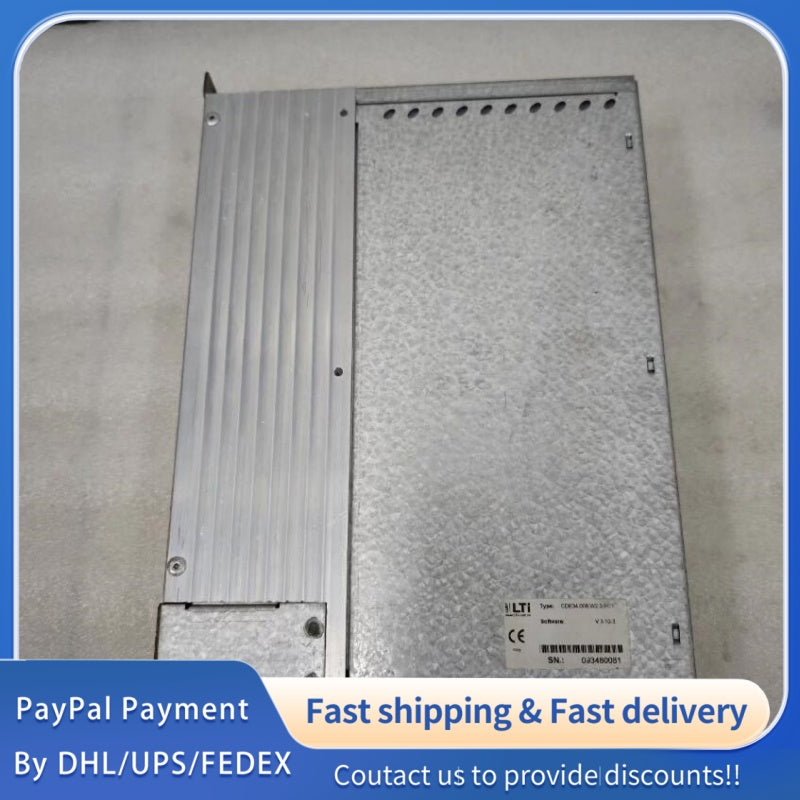

1pc used LUST Servo Drive CDE34.008 W2.0,PC1#LYQ007
1pc used LUST Servo Drive CDE34.008 W2.0,PC1#LYQ007
1pc used LUST Servo Drive CDE34.008 W2.0,PC1#LYQ007
Part Number: CDE34.008 W2.0,PC1; Model: CDE34.008 W2.0,PC1; Product Name: LUST CDE34 Series Digital AC Servo Drive
Brand: LUST (LTI Motion, a global leader in high-precision motion control solutions, providing reliable servo systems for industrial automation, machinery and robotics)
Product Status: Standard Industrial-Grade Product (In Stock); Product Category: Compact Digital AC Servo Drive, designed for medium-power high-accuracy motion control applications
Core Application: Specialized for 1.5kW AC servo motor control in scenarios requiring precise positioning, stable speed regulation and fast dynamic response, such as CNC machine tools, packaging machinery, printing equipment, automated assembly lines and material handling systems. Suitable for harsh industrial environments with continuous operation demands and strict motion control accuracy requirements.
Core Features: Multi-mode control (Position/Speed/Torque) switchable; High-precision closed-loop control with encoder feedback; Compact flange-mount design for space-saving; Rich communication and I/O interfaces for system integration; Built-in comprehensive protection functions; Industrial-grade components for long-term reliability; Low electromagnetic interference (EMI) to adapt to complex industrial environments; Support for advanced motion control functions.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Input Voltage: 3-Phase 380V-480V AC (-15% to +10% fluctuation range), 50/60Hz; Rated Input Current: 6.5A (continuous), 13A (peak, 30 seconds);
Output Voltage: 3-Phase AC (PWM modulation, proportional to input voltage, switching frequency 4kHz-8kHz configurable); Output Current: 8A (continuous), 16A (peak, 30 seconds); Rated Output Power: 1.5kW (at 400V AC input);
Control Modes: Position control (Pulse/Direction, CW/CCW, A/B Phase), Speed control (analog input, internal speed setting), Torque control (analog input) – switchable via parameter;
Speed Range: 1:5000 (continuous stable operation, with encoder feedback); Speed Stability: ±0.05% of set speed (steady load, full speed range);
Positioning Accuracy: ±0.01° (matching 2500-line incremental encoder); Torque Response Time: ≤100ms (step torque command); Acceleration/Deceleration Time: 0.01s-300s (configurable, linear/S-curve optional).
2.2 Feedback & Communication Parameters
Feedback Interfaces: Incremental Encoder Input (5V DC, up to 1024ppr), Absolute Encoder Input (optional); Supports closed-loop control to ensure motion precision and stability;
Communication Protocols: RS-485 (Modbus RTU), CANopen (optional); Communication Speed: RS-485 9600-115200 bps (configurable), CANopen up to 1Mbps;
I/O Interface: 6 Channels Digital Input (DI, 24V DC, sink/source selectable, optically isolated); 2 Channels Digital Output (DO, 24V DC, max 1A per channel, optically isolated);
Analog Inputs x 2 (0-10V DC, 12-bit resolution, configurable for speed/torque command); Analog Outputs x 1 (0-10V DC, 12-bit resolution, selectable output of speed, current or torque signals);
Configuration Interface: RS-232C (for local configuration via laptop), support for LUST DriveManager configuration software.
