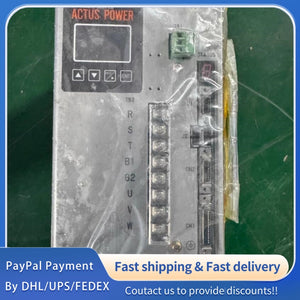

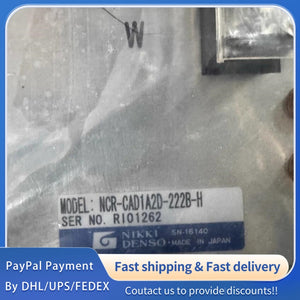

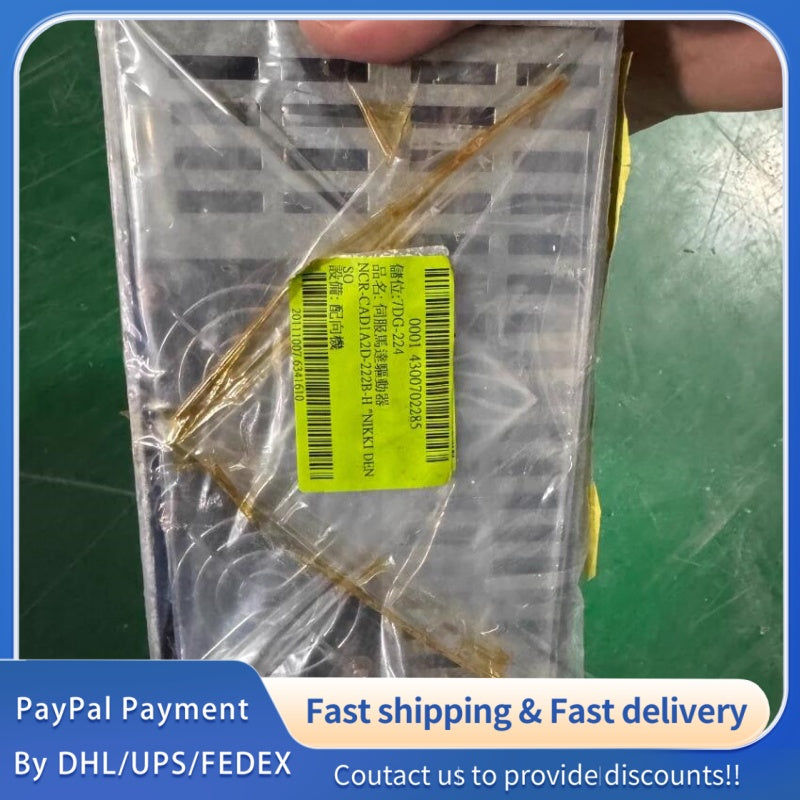

1 PCS used NIKKI DENSO Servo Driver NCR-CAD1A2D-222B-H #LYQ007
1 PCS used NIKKI DENSO Servo Driver NCR-CAD1A2D-222B-H #LYQ007
1 PCS used NIKKI DENSO Servo Driver NCR-CAD1A2D-222B-H #LYQ007
1. General Specifications (Original Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
Servo Driver
|
-
|
Original NIKKI DENSO (日机电装) genuine product, high-precision servo driver for industrial motion control systems
|
|
Model Number
|
NCR-CAD1A2D-222B-H
|
-
|
Unique model code for NIKKI DENSO servo driver series, strictly consistent with factory calibration and technical specifications
|
|
Brand & Manufacturer
|
NIKKI DENSO (日机电装)
|
-
|
Complies with NIKKI DENSO strict industrial servo control component standards, ensuring high precision, stability and reliable operation
|
|
Product Series
|
NCR-CAD Series
|
-
|
High-performance servo driver series, specialized for precise motion control, speed regulation and position control in industrial equipment
|
2. Electrical Performance Specifications (Ta = 25℃, RH = 60%, Standard Working Conditions)
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage (AC)
|
190
|
220
|
240
|
VAC (Single-Phase)
|
Standard single-phase AC input, compatible with industrial power supply systems, anti-voltage fluctuation and surge
|
|
Input Frequency
|
47
|
50/60
|
63
|
Hz
|
Wide frequency adaptability, suitable for global industrial power supply frequency standards
|
|
Rated Output Current (RMS)
|
1.8
|
2.2
|
2.5
|
A
|
Stable rated output current, matching NIKKI DENSO 2.2A series servo motors, ensuring full-load stable operation
|
|
Peak Output Current (RMS)
|
5.5
|
6.6
|
7.0
|
A
|
Short-term peak current support, adapting to instant load changes and acceleration scenarios, duration ≤ 3 seconds
|
|
Output Voltage
|
0
|
0-220
|
240
|
VAC (Variable Frequency)
|
Variable frequency and voltage output, matching servo motor speed and torque requirements, high conversion efficiency
|
|
Control Response Time
|
-
|
1.5
|
3.0
|
ms
|
Fast control response, realizing real-time adjustment of motor speed and position, reducing motion control errors
|
|
Speed Regulation Accuracy
|
≤±0.01
|
±0.005
|
-
|
%
|
High speed regulation accuracy, ensuring stable motor speed under different load conditions, no obvious speed fluctuation
|
|
Positioning Accuracy
|
≤±1
|
±0.5
|
-
|
Pulse
|
Precise positioning control, matching encoder feedback signals, meeting high-precision industrial motion control requirements
|
|
Insulation Resistance
|
100
|
500
|
-
|
MΩ
|
High insulation performance between input and output, effectively preventing short circuit and ensuring equipment and personnel safety
|
3. Protection Specifications (Original Factory Setting)
|
Parameter
|
Protection Threshold
|
Recovery Mode
|
Unit
|
Official Notes
|
|
Over-Voltage Protection (OVP)
|
260-270
|
Auto-Recovery (After Voltage Normalization)
|
VAC
|
Triggered when input voltage exceeds threshold, cutting off output to protect driver and servo motor from over-voltage damage
|
|
Under-Voltage Protection (UVP)
|
170-180
|
Auto-Recovery (After Voltage Normalization)
|
VAC
|
Triggered when input voltage is too low, preventing driver damage caused by under-voltage operation
|
|
Over-Current Protection (OCP)
|
7.5-8.0
|
Manual Recovery
|
A (RMS)
|
Fast response to excessive output current, avoiding damage to driver modules and servo motor windings
|
|
Over-Temperature Protection (OTP)
|
85-90
|
Auto-Recovery (After Temperature Drop)
|
℃
|
Triggered when internal temperature of driver is too high, protecting power modules and electronic components from thermal damage
|
|
Short-Circuit Protection (SCP)
|
Instant Trigger (≤10μs)
|
Manual Recovery
|
-
|
Fast response to output short circuit, immediately cutting off power supply to prevent fire and equipment damage
|
|
Over-Torque Protection (OTP)
|
150-180% of Rated Torque
|
Auto-Recovery / Manual Recovery (Selectable)
|
-
|
Prevents servo motor damage caused by excessive torque, adapting to different load protection requirements
|
|
ESD Protection
|
±4
|
Auto-Recovery
|
kV
|
Effective ESD protection, preventing damage to internal control circuits caused by static electricity in industrial environments
|
|
Over-Load Protection (OLP)
|
120-150% of Rated Load
|
Auto-Recovery (After Load Reduction)
|
-
|
Protects driver and motor from long-term over-load operation, extending service life
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
