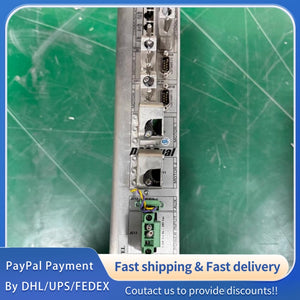

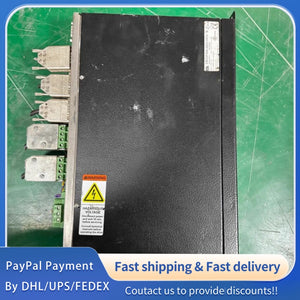

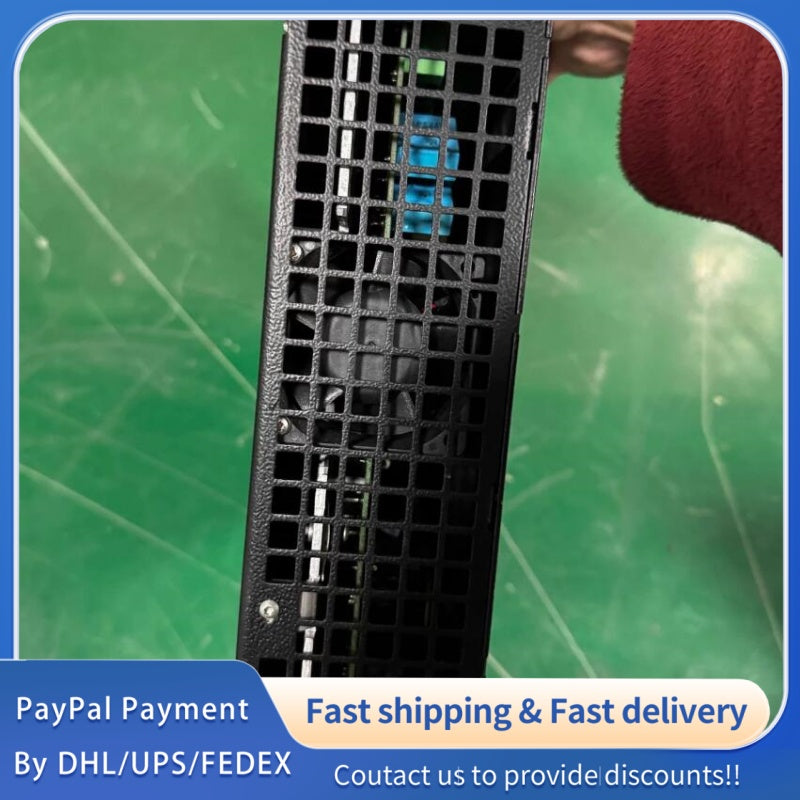

1 PCS USED ETEL Digital Servo Drive DSCDP324-322G-000A #LYQ007
1 PCS USED ETEL Digital Servo Drive DSCDP324-322G-000A #LYQ007
1 PCS USED ETEL Digital Servo Drive DSCDP324-322G-000A #LYQ007
1. General Specifications (Original Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
Digital Servo Drive
|
-
|
Original ETEL factory product, specialized for high-precision industrial servo control systems
|
|
Model Number
|
DSCDP324-322G-000A
|
-
|
Unique model code for ETEL DSCDP series servo drive, consistent with factory calibration and quality standards
|
|
Brand & Manufacturer
|
ETEL S.A.
|
-
|
Complies with ETEL strict industrial servo component standards, ensuring high precision and stable operation
|
|
Product Series
|
DSCDP Series
|
-
|
High-precision, high-response digital servo drive series, suitable for various high-end industrial automation scenarios
|
|
Control Mode
|
Position Control, Speed Control, Torque Control
|
-
|
Three control modes optional, switchable online, adapting to different application requirements
|
2. Electrical Performance Specifications (Ta = 25℃, RH = 60%, Standard Working Conditions)
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage Range (AC)
|
170
|
220
|
264
|
VAC
|
Wide AC input range, compatible with global industrial power grids, stable operation under voltage fluctuation
|
|
Input Frequency Range
|
47
|
50/60
|
63
|
Hz
|
Adaptable to different industrial frequency standards, no need for frequency adjustment during global application
|
|
Output Current (RMS)
|
0
|
32
|
35
|
A
|
High output current capacity, supporting long-term full-load operation without performance degradation
|
|
Peak Output Current
|
-
|
64
|
70
|
A
|
Short-term peak current support, adapting to instantaneous load surge in high-dynamic application scenarios
|
|
Speed Regulation Precision
|
-
|
±0.01
|
±0.05
|
%
|
High speed regulation precision, effectively reducing speed fluctuation caused by load change
|
|
Positioning Precision
|
-
|
±1
|
±3
|
μm
|
High positioning precision, meeting the demand of high-precision industrial control scenarios
|
|
Response Bandwidth
|
100
|
500
|
1000
|
Hz
|
High response bandwidth, fast dynamic response, adapting to high-speed and high-precision control requirements
|
3. Protection Specifications
|
Parameter
|
Protection Threshold
|
Recovery Mode
|
Unit
|
Official Notes
|
|
Over-Voltage Protection (OVP)
|
320-340
|
Auto-Recovery
|
VDC
|
Triggered when output voltage exceeds threshold, protecting load equipment from over-voltage damage
|
|
Over-Current Protection (OCP)
|
38-42
|
Auto-Recovery
|
A
|
Prevents module damage caused by excessive output current, compatible with short-term load current surge
|
|
Over-Temperature Protection (OTP)
|
85-95
|
Auto-Recovery
|
℃
|
Triggered when drive internal temperature is too high, avoiding thermal damage to components
|
|
Short-Circuit Protection (SCP)
|
Instant Trigger
|
Auto-Recovery
|
-
|
Fast response to output short-circuit, cutting off output immediately to protect drive and load
|
|
Under-Voltage Protection (UVP)
|
150-160
|
Auto-Recovery
|
VAC
|
Triggered when input voltage is too low, avoiding drive damage caused by under-voltage operation
|
|
Over-Load Protection (OLP)
|
110-120
|
Auto-Recovery
|
%
|
Triggered when load exceeds rated value, protecting drive and servo motor from overload damage
|
