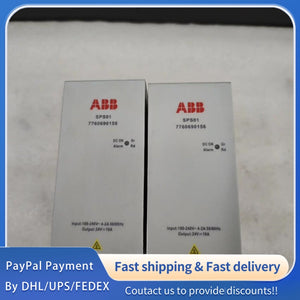

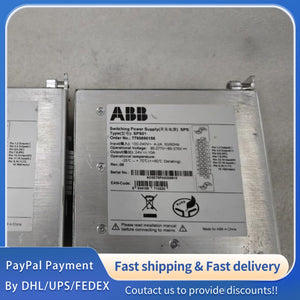

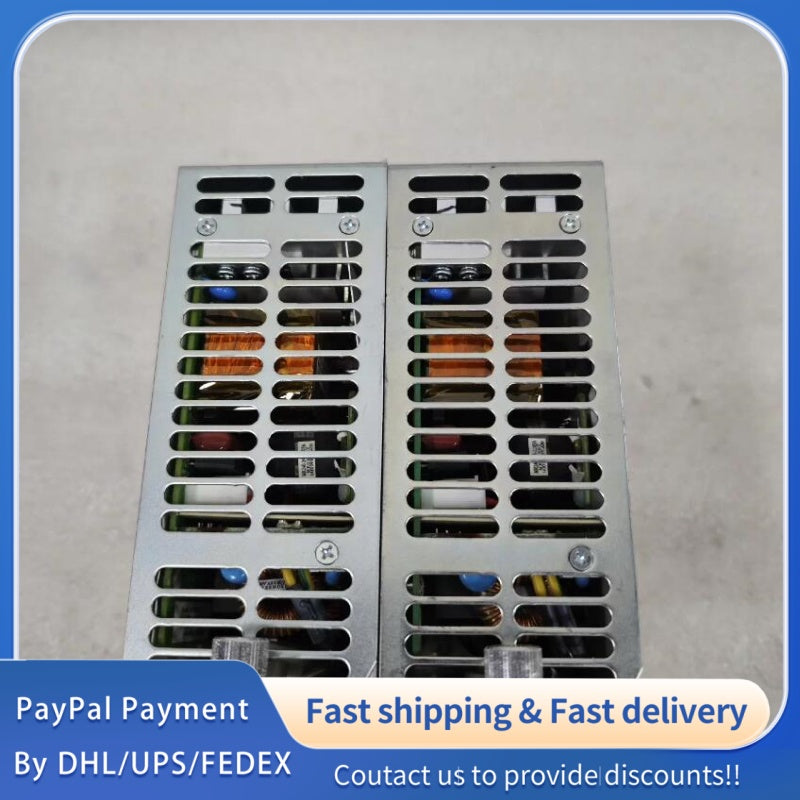

Part Number: 7760690156; Model: SPS01; Product Name: ABB SPS01 Series Industrial Switching Power Supply
Brand: ABB (A global leader in power and automation technologies, providing high-reliability industrial power supply solutions for diverse automation scenarios)
Product Status: Standard Industrial-Grade Product (In Stock); Product Category: Single-Output Switching Power Supply, designed for industrial automation control systems and precision equipment power supply
Core Application: Widely used in industrial control cabinets, automation production lines, PLC systems, sensor networks, servo drives and precision electronic equipment. Suitable for harsh industrial environments requiring stable power supply, such as automotive manufacturing, machinery processing, packaging equipment, process control systems and robotics.
Core Features: Stable single-output voltage with high precision; Wide AC input voltage range for strong adaptability; High conversion efficiency and low power consumption; Built-in comprehensive protection functions; Compact DIN rail mounting design; Excellent EMC performance for industrial interference environments; Long service life with industrial-grade components; Easy installation and maintenance.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Input Voltage: 1-Phase 100-240V AC (wide range, 50/60Hz, ±10% fluctuation tolerance); Input Current: Max 1.5A (at 100V AC, full load), Max 0.8A (at 240V AC, full load);
Output Specifications: Single Output - 24VDC, Rated Current 2.5A, Peak Current 5A (10s duration); Total Rated Power: 60W;
Output Precision: ±0.5% (full load, 25℃); Output Ripple & Noise: ≤50mV p-p (at full load); Conversion Efficiency: ≥90% (at rated load);
Isolation Voltage: Input to Output: 3kV AC/1min; Input to Ground: 2kV AC/1min; Insulation Resistance: ≥100MΩ (500VDC, input-output-ground).
2.2 Protection & Safety Parameters
Protective Functions: Over-Voltage Protection (OVP): 27-29VDC, auto-recovery after fault removal; Over-Current Protection (OCP): Constant current limiting, auto-recovery after load reduction;
Short-Circuit Protection (SCP): Full short-circuit protection, auto-recovery after fault removal; Over-Temperature Protection (OTP): Automatic shutdown at 85℃±5℃, recovery after cooling to 60℃;
ESD Protection: ±8kV (contact), ±15kV (air) per IEC 61000-4-2; Surge Protection: ±2kV (power port) per IEC 61000-4-5; EMC Compliance: EN 55011 Class A (electromagnetic emission), EN 61000-4 Series (electromagnetic immunity).
