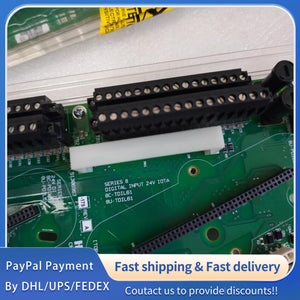

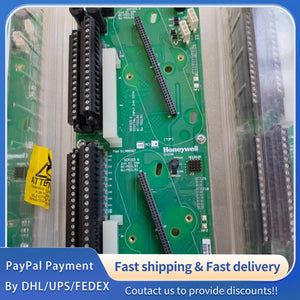

Part Number: 8C-TDIL61; Product Name: PLC Module Base
Brand: Honeywell (A global leader in industrial automation and control solutions, providing reliable hardware and software for process and discrete industries);
Product Status: Original New Unit; Product Category: PLC Accessory, Designed for Mounting and Connecting Honeywell TDIL Series PLC Modules in Industrial Control Systems.
Core Application: Widely used in industrial control scenarios such as process automation, manufacturing automation, building automation, and energy management. It provides stable mechanical support and electrical connection for TDIL series PLC modules, ensuring reliable signal transmission and system operation.
Core Features: Compatible with Honeywell TDIL series PLC modules; Secure mechanical latching design; Integrated terminal blocks for easy wiring; Excellent anti-interference performance; Compact structure for space-saving installation; Compliance with international industrial standards.
2. Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Auxiliary Power Supply: 24VDC (Nominal); Voltage Tolerance: ±10% (21.6VDC ~ 26.4VDC); Power Consumption: ≤ 3W (No Load, Only Base Operation).
Power Connection: Industrial-grade screw terminals; Polarity Protection: Built-in reverse polarity protection to prevent damage caused by incorrect wiring.
2.2 Signal Transmission Performance
Signal Type: Supports Digital I/O, Analog I/O, and Communication Signals Transmission; Contact Resistance: ≤ 10mΩ (Signal Terminals);
Insulation Resistance: ≥ 100MΩ (500VDC, Between Terminals and Ground); Dielectric Strength: 2500VAC, 1 Minute (Between Terminals and Ground, No Breakdown).
Isolation: Optically isolated between signal circuits and power circuit; Isolation Voltage: 1500Vrms Superscript:6, Ensuring Signal Integrity in Harsh Industrial Environments.
2.3 Terminal Specifications
Terminal Type: Industrial-Grade Phoenix Screw Terminals; Terminal Quantity: 32 Terminals (For Power, Signal Input/Output, and Ground Connections);
Wire Gauge Range: 0.5mm² ~ 2.5mm² (Solid Wire); 0.5mm² ~ 2.0mm² (Stranded Wire); Torque Range for Screw Terminals: 0.8N·m ~ 1.2N·m.
