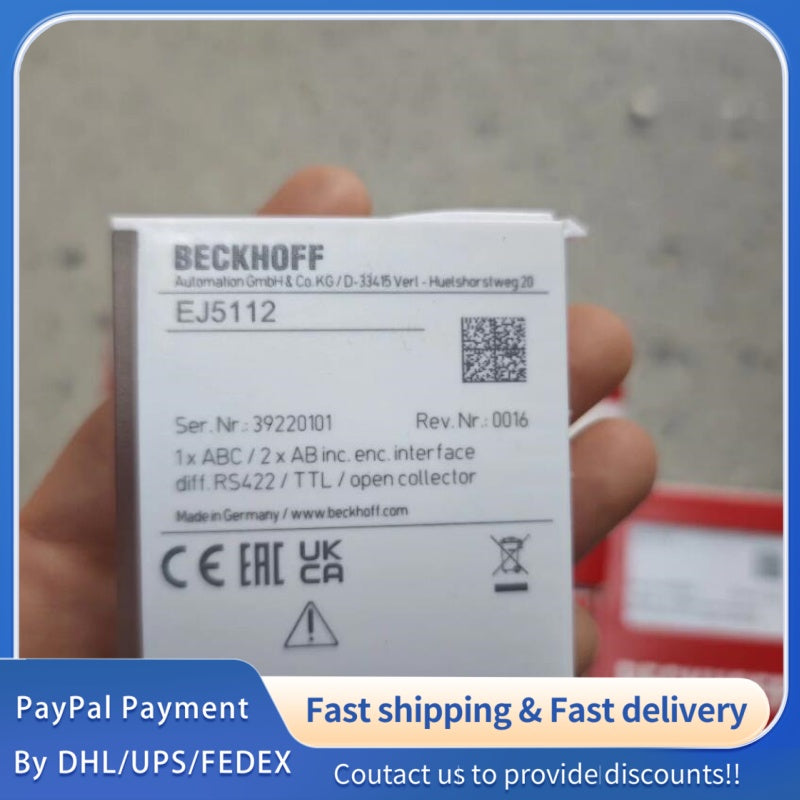

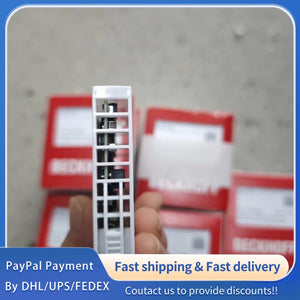

1 PCS USED Beckhoff PLC Module EJ5112 #LYQ007
1 PCS USED Beckhoff PLC Module EJ5112 #LYQ007
1 PCS USED Beckhoff PLC Module EJ5112 #LYQ007
Part Number: EJ5112; Product Name: 8-Channel Analog Input Module
Brand: Beckhoff (Beckhoff Automation GmbH & Co. KG, a global leader in PC-based control technology, specializing in Ethernet-based fieldbus systems, industrial PCs, and automation components for various industrial sectors);
Product Status: Original New Unit; Product Category: EtherCAT Terminal, Analog Input Module, Designed for High-Precision Signal Acquisition in Industrial Automation Systems.
Core Application: Widely used in industrial automation, process control, precision measurement, and monitoring systems, including manufacturing machinery, packaging equipment, energy management systems, and material handling systems. It integrates seamlessly with Beckhoff TwinCAT control software and EtherCAT-based control systems to realize real-time acquisition and transmission of analog signals from sensors, transmitters, and other field devices.
Core Features: 8 independent analog input channels for versatile signal acquisition; High-precision 16-bit AD conversion for accurate measurement; Support for multiple input signal types (voltage, current); Optically isolated design for strong anti-interference capability; Seamless integration with EtherCAT bus for real-time data transmission; Compatible with Beckhoff TwinCAT 3 software for easy configuration and programming; Compact DIN rail mounting design for space-saving installation.
2. Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Supply Voltage: DC 24V (Rated), Voltage Tolerance: ±10% (21.6V ~ 26.4V); Power Supply Type: Backplane Power Supply via EtherCAT Terminal Bus.
Rated Power Consumption: ≤ 1.2W (Typical Load), Current Draw: ≤ 50mA (24V Input, Typical).
Power Protection: Built-in reverse polarity protection for power input, overvoltage protection (Input ≥ 28V DC), and undervoltage protection (Input ≤ 20V DC) to prevent module damage from abnormal power conditions.
2.2 Analog Input Performance
Channel Configuration: 8 Channels (Independent), Input Signal Types: Voltage (±10V, 0~10V) and Current (4~20mA, 0~20mA), Configurable via TwinCAT Software.
AD Conversion Performance: Resolution: 16 Bits, Conversion Rate: 1kHz per Channel (Simultaneous Sampling for All Channels); Measurement Accuracy: ≤ ±0.1% FS (Voltage Input), ≤ ±0.2% FS (Current Input); Linearity Error: ≤ ±0.05% FS.
Input Characteristics: Input Impedance: ≥ 1MΩ (Voltage Input), ≤ 250Ω (Current Input); Overload Protection: ±30V DC (Voltage Input), 30mA (Current Input, Continuous).
Isolation: Optically Isolated Between Channels and Bus, Isolation Voltage: 500Vrms (Continuous), 1500Vrms (Transient, 1min) per IEC 61131-2.
Communication Interfaces: EtherCAT Terminal Bus, Compatible with EtherCAT Protocol (EN 50325-2), Data Transmission Rate: Up to 100Mbps, Support for Real-Time Communication with Cycle Times Down to 1ms.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
