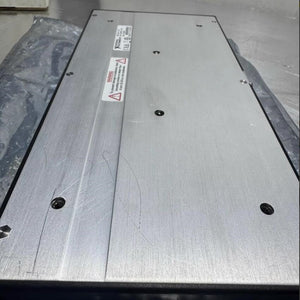

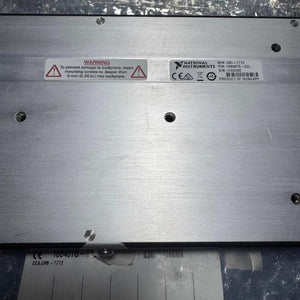

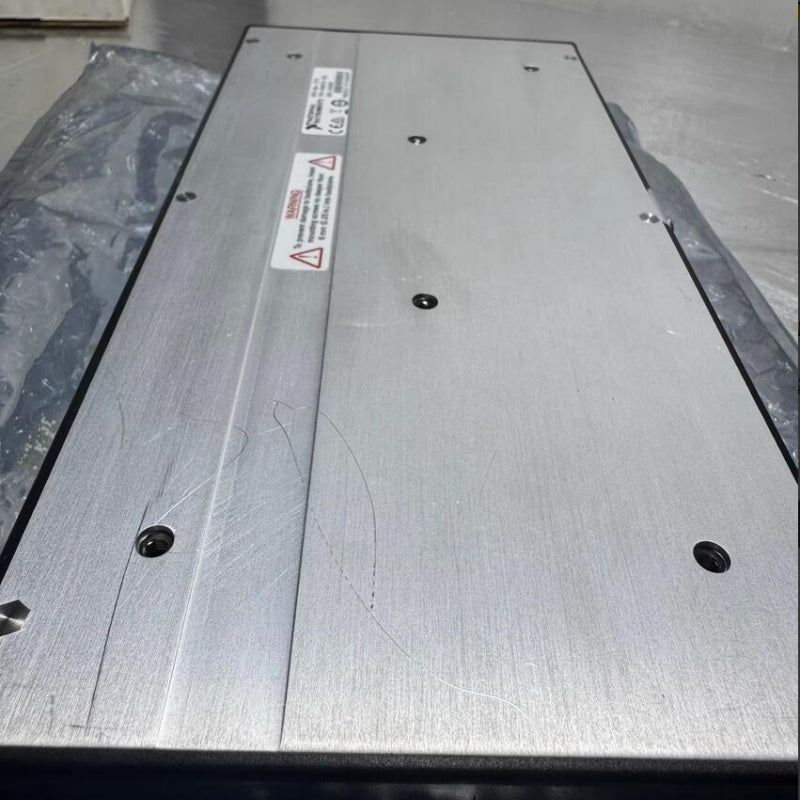

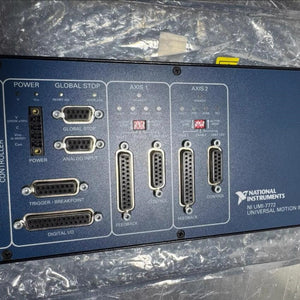

1 PCS new NI UMI-7772 2-Axis Universal Motion Interface Card #LYQ007
1 PCS new NI UMI-7772 2-Axis Universal Motion Interface Card #LYQ007
| Parameter | Value |
|---|---|
| Model | UMI-7772 |
| Number of Axes | 2 |
| Encoder Interface (per axis) | Quadrature, incremental; differential only |
| Differential Input Threshold | ±0.3 V (typical), RS-422 compatibledownload.ni.com |
| Termination | 120 Ωdownload.ni.com |
| Input Voltage Range | 0 to 5.5 VDCdownload.ni.com |
| Max Quadrature Frequency | 20 MHz |
| Limit & Home, Inhibit, Shutdown, Digital Inputs | Optically isolated, current sinkingdownload.ni.com |
| Input Voltage Range | 0 to 30 VDCdownload.ni.com |
| Input ON Voltage | 3.5 to 30 VDCdownload.ni.com |
| Input OFF Voltage | 0 to 2 VDCdownload.ni.com |
| Turn-On Current | 3 mA min, 14 mA max (current limited)download.ni.com |
| Max Pulse Rate | 100 kHzdownload.ni.com |
| Min Detected Pulse | 10 µsdownload.ni.com |
| Reverse Polarity Protection | Yes (–30 V)download.ni.com |
| Trigger Inputs | Optically isolated, current sinkingdownload.ni.com |
| Input Voltage Range | 0 to 30 VDCdownload.ni.com |
| Input ON Voltage | 3.5 to 30 VDCdownload.ni.com |
| Input OFF Voltage | 0 to 2 VDCdownload.ni.com |
| Turn-On Current | 3 mA min, 14 mA max (current limited)download.ni.com |
| Max Pulse Rate | 1 MHzdownload.ni.com |
| Min Detected Pulse | 1 µsdownload.ni.com |
| Reverse Polarity Protection | Yes (–30 V)download.ni.com |
| Axis Enable Outputs | Optically isolated, current sourcingdownload.ni.com |
| Output Voltage Range | 5 to 30 VDCdownload.ni.com |
| Max Output Current | 60 mA @ 5 V; 150 mA @ 24 V; 160 mA @ 30 Vdownload.ni.com |
| Max Pulse Rate | 10 kHzdownload.ni.com |
| Min Generated Pulse | 100 µsdownload.ni.com |
| On-State Voltage Drop | 1.2 V at 100 mAdownload.ni.com |
| Short-Circuit/Overload Protection | Yesdownload.ni.com |
| Step/Dir, Breakpoint, Analog I/O | Signal pass-through (no voltage/current change)download.ni.com |
| Host Bus Interlock | 4.2 VDC thresholddownload.ni.com |
| Power | Input: 24 VDC ±10%, 0.20 A; Viso: 5–30 VDC, 1.75 Adownload.ni.com |
| Environmental | Operating: 0 to 55 °C; Storage: –30 to 80 °C; Humidity: 10–90% RH (noncondensing)download.ni.com |
| Physical | Weight: 2.5 lbs; Dimensions: 259.08 × 126.93 × 22.01 mm (10.200 × 5.00 × 0.867 in.)download.ni.com |
| Connectors | Motion I/O: 68-pin female high-density VHDCI; Digital I/O: 68-pin female high-density VHDCI; Per-axis control: 15-pin D-SUB; Per-axis feedback: 25-pin D-SUBdownload.ni.com |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
