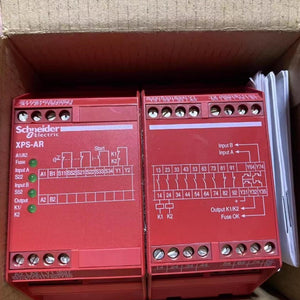

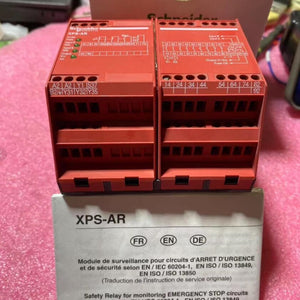

1 PCS NEW Schneider Electric XPSAR371144 Safety Relay #LYQ007
1 PCS NEW Schneider Electric XPSAR371144 Safety Relay #LYQ007
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Series | Preventa XPSAR |
| Product Type | Safety Relay Module |
| Supply Voltage | 24 V DC (-15%…+10%) / 230 V AC |
| Supply Frequency | 50/60 Hz |
| Number of Input Channels | 2-channel |
| Input Synchronization Time | 100 ms |
| Input Protection | Internal electronic protection |
| Control Circuit Voltage (Uc) | 24 V DC |
| Line Resistance | 50 Ω |
| Safety Outputs | 7 × NO (Normally Open) safety relay contacts |
| Auxiliary Outputs | 2 × NC (Normally Closed) volt-free signaling contacts |
| Solid-State Outputs | 4 × solid-state outputs for PLC signaling |
| Output Thermal Current (Ith) | 10 A per relay |
| Rated Insulation Voltage (Ui) | 300 V (pollution degree 2) |
| Breaking Capacity (AC-15) | Holding: 360 VA; Inrush: 3600 VA |
| Breaking Capacity (DC-13) | 2 A at 24 V (time constant 50 ms) |
| Power Consumption | ≤ 4 W (DC); ≤ 9 VA (AC) |
| Safety Category | Category 4 (ISO 13849-1) |
| Performance Level (PL) | PL e (ISO 13849-1) |
| SIL Rating | SIL 3 (IEC 61508) |
| PFHd | 2.22 × 10⁻⁹ 1/h (EN/IEC 62061) |
| MTTFd | 277.8 years (EN/ISO 13849-1) |
| Diagnostic Coverage (DC) | > 99% (EN/ISO 13849-1) |
| Reset Type | Configurable (manual/automatic) |
| Terminals | Removable screw clamp terminals |
| Terminal Capacity | 2 × 0.5…2 × 1.5 mm²; 2 × 0.25…2 × 1 mm²; 1 × 0.25…1 × 2.5 mm² |
| Dimensions (W×H×D) | 90 × 114 × 99 mm |
| Weight | 0.4 kg |
| Protection Degree | IP20 (terminals); IP40 (enclosure) |
| Operating Temperature | -10 … +55 °C |
| Storage Temperature | -25 … +85 °C |
| Standards | EN 1088/ISO 14119; EN/IEC 60204-1; EN/IEC 60947-5-1; EN/ISO 13850 |
| Certifications | CSA, TÜV, UL |
| Mounting | DIN rail mounting |
| Applications | Emergency stop, safety light curtains, safety switches, two-hand control, safety mats/edges |
