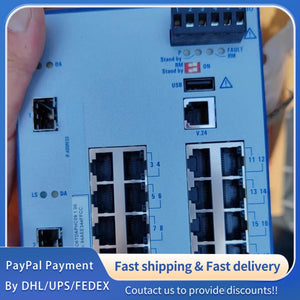

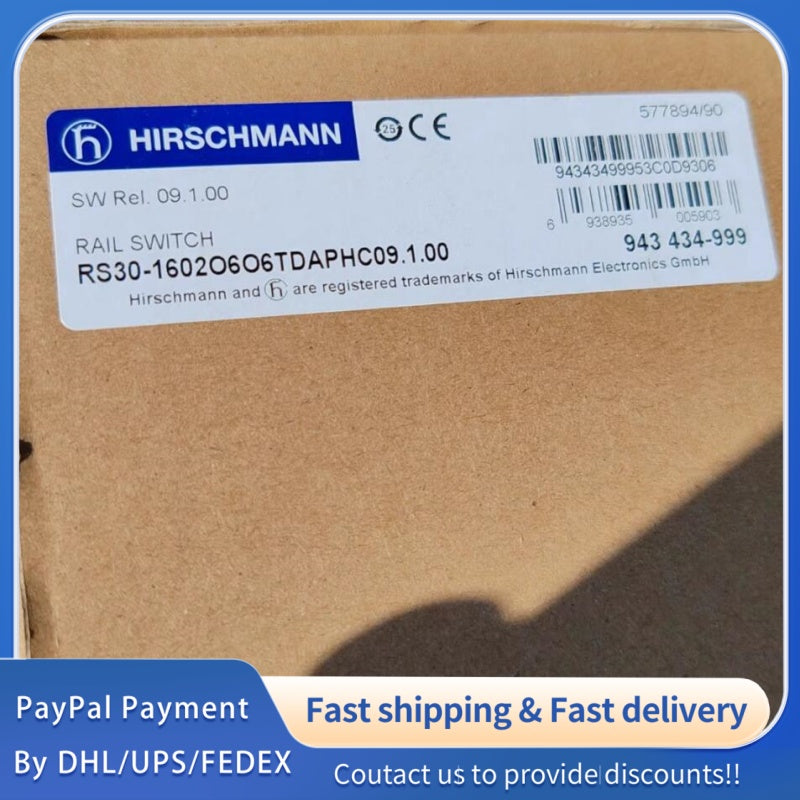

1 PCS new Hirschmann RS30-1602O6O6TDAPHC09.1.00 Switch #LYQ007
1 PCS new Hirschmann RS30-1602O6O6TDAPHC09.1.00 Switch #LYQ007
| Parameter | Value |
|---|---|
| Product Model | RS30-1602O6O6TDAPHC09.1.00 |
| Series | RS30 OpenRail Managed Industrial Ethernet Switch |
| Switch Type | Managed, Layer 2 Enhanced |
| Total Ports | 18 |
| Fast Ethernet Ports | 16 × 10/100Base-TX, RJ45 |
| Gigabit Uplink Ports | 2 × Gigabit SFP Slots (1000Base-X) |
| Switching Method | Store-and-Forward |
| Cooling | Fanless Design |
| Operating Voltage | 12/24/48 V DC (9.6–60 V DC); 24 V AC (18–30 V AC), Redundant |
| Current Consumption | 516 mA @ 24 V DC; 257 mA @ 48 V DC |
| Power Dissipation | 42.4 Btu (IT)/h |
| Dimensions (W×H×D) | 110 mm × 131 mm × 111 mm |
| Mounting | DIN Rail |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage/Transport Temp | -40 °C to +70 °C |
| Relative Humidity | 10%–95% (non-condensing) |
| MTBF | 39.7 years (MIL-HDBK-217F) |
| Shock Resistance | IEC 60068-2-27: 15 g, 11 ms, 18 shocks |
| Vibration Resistance | IEC 60068-2-6: 1 mm (2–13.2 Hz); 0.7 g (13.2–100 Hz); etc. |
| Management | TFTP, LLDP (802.1AB), HTTP, SNMP v1/v2/v3, Telnet, CLI, Web UI |
| Redundancy | HIPER-Ring (≤50 nodes, <0.3s reconfig), MRP, RSTP (802.1D) |
| Industrial Protocols | EtherNet/IP, PROFINET IO |
| Security | IP/MAC Port Security, VLAN-based Access Control, SNMP Logging |
| QoS | 802.1p, TOS/DSCP Prioritization, Broadcast Limiting |
| VLAN | 802.1Q, IGMP Snooping/Querier (v1/v2/v3) |
| Diagnostics | LEDs, Syslog, RMON, Port Mirroring, Duplex Mismatch Detection |
| Interfaces | 6-pin Terminal Block (Power/Signal), 1×RJ11 (V.24), 1×USB (ACA21) |
| Approvals | cUL 508, ISA 12.12.01 Class 1 Div. 2, FCC Class A, EN 55022 Class A |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
