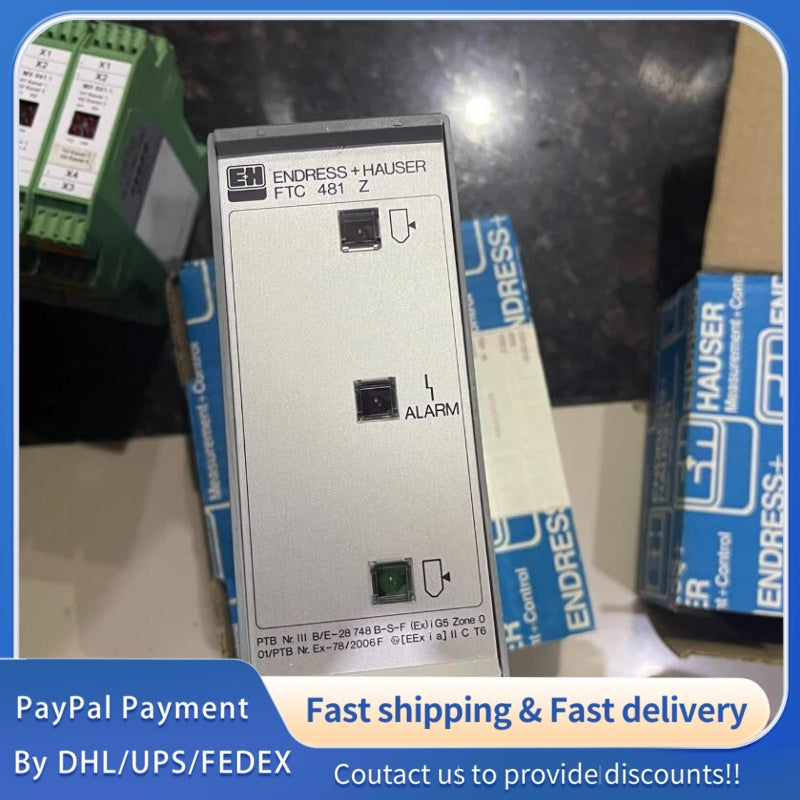

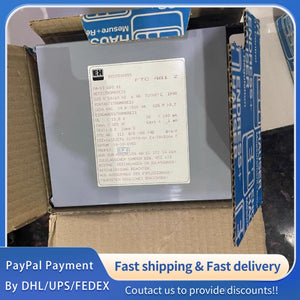

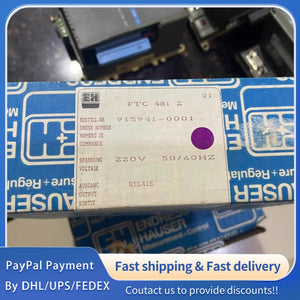

1 PCS new Endress+Hauser FTC481Z Nivotester #LYQ007
1 PCS new Endress+Hauser FTC481Z Nivotester #LYQ007
| Parameter | Value |
|---|---|
| Product Type | Nivotester FTC481Z (Marine-certified capacitive level switch transmitter) |
| Application | Point level detection for capacitive sensors; marine, hazardous areas, overfill protection, pump dry-run protection |
| Power Supply | 19…253 V AC, 50/60 Hz; 19…55 V DC; 9…20 V DC (relay DPDT) |
| Output | 2 × SPDT relays (level); 1 × SPDT relay (alarm/fault) |
| Relay Switching Capacity | U~ max 250 V AC; I~ max 2 A; P~ max 500 VA (cos φ = 1) |
| Signal Interface | PFM (Pulse Frequency Modulation) for capacitive probes |
| Ambient Temperature | -20 °C … +60 °C (-4 °F … +140 °F) |
| Process Temperature (Probe) | -60 °C … +280 °C (-76 °F … +536 °F) |
| Process Pressure | Vacuum … 100 bar (Vacuum … 1450 psi) |
| Minimum Medium Density | 0.5 g/cm³ (0.4 g/cm³ optional) |
| Protection Rating | IP20 (housing); IK06 (mechanical impact) |
| Mounting | DIN rail (EN 60715 TH 35×7.5 / 35×15) |
| Housing Material | Polycarbonate (light gray RAL 7035) |
| Dimensions (W×H×D) | 22.5 × 112 × 100 mm (0.89 × 4.41 × 3.94 in) |
| Weight | Approx. 0.2 kg (0.44 lb) |
| Marine Approvals | ABS, LR, BV, DNV (IACS E10 vibration compliant) |
| Explosion Protection | ATEX II (1) GD [EEx ia] IIC; FM, CSA |
| EMC | EN 61326 (Class B); NAMUR NE 21 |
| Fail‑safe Mode | MIN/MAX selectable via DIP switch |
| Switching Delay | 0.5 s; 2.0 s; 6.0 s (configurable) |
| Line Monitoring | Continuous cable/sensor fault detection |
