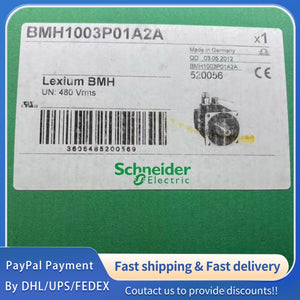

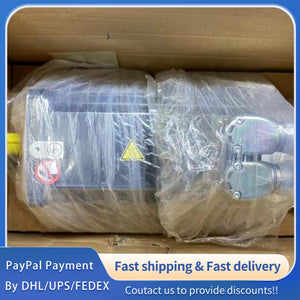

1 PCS new Schneider Electric Servo Motor BMH1003P01A2A #LYQ007
1 PCS new Schneider Electric Servo Motor BMH1003P01A2A #LYQ007
| Parameter Category | Parameter Name | Value | Remarks |
|---|---|---|---|
| Basic Identification | Part Number | BMH1003P01A2A | |
| EAN | 3606485200569 | ||
| Product Series | BMH (Lexium 32 Compatible) | ||
| Electrical Ratings | Rated Supply Voltage (Us) | 480 V AC, 3-phase | |
| Continuous Stall Torque | 8.4 N·m | ||
| Continuous Stall Current | 7.69 A rms | ||
| Maximum Speed | 6000 rpm | ||
| Peak Current (Imax) | 29.1 A rms | For LXM32.D30N4 drive | |
| Torque Constant (Kt) | 1.0 N·m/A | At 120 °C | |
| Back EMF Constant (Ke) | 63.5 V/krpm | At 120 °C | |
| Number of Poles | 10 | ||
| Electrical Characteristics | Stator Resistance | 0.63 Ω | At 20 °C |
| Stator Inductance | 4 mH | At 20 °C | |
| Electrical Time Constant | 6.3 ms | At 20 °C | |
| Mechanical Specifications | Flange Size | 100 mm (IEC) | |
| Shaft Type | Untapped/Smooth, No Key | ||
| Shaft Diameter | 19 mm | ||
| Shaft Length | 40 mm | ||
| Rotor Inertia | 9.37 kg·cm² | ||
| Number of Stacks | 3 | ||
| Holding Brake | None | ||
| Second Shaft End | None | ||
| Feedback System | Feedback Type | Single-turn SinCos Hiperface | |
| Encoder Resolution | 128-bit (131072 points/rev) | ||
| Mechanical Mounting | Mounting Holes | 4 × M9 | |
| Hole Circle Diameter | 115 mm | ||
| Maximum Radial Force (Fr) | 1050 N | At 1000 rpm | |
| Environmental & Physical | IP Rating | IP54 | |
| Weight (Net) | 6.5 kg | ||
| Weight (Packaged) | 7.069 kg | ||
| Electrical Connection | Connector Type | 2 × M23 Angled (Rotatable) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
