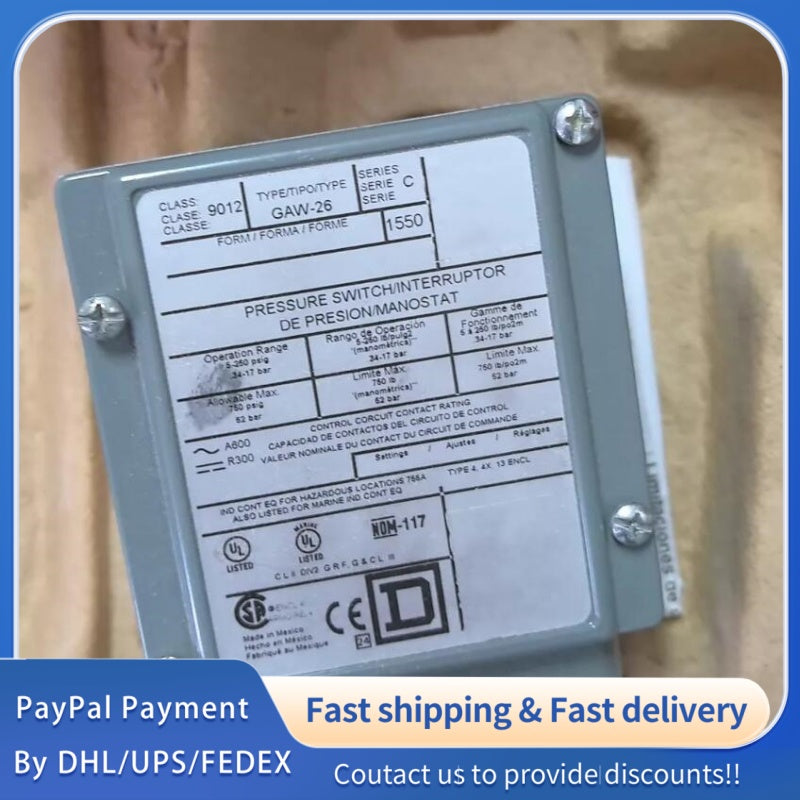

1 PCS new Square D 9012GAW26 (GAW-26, Class 9012) Pressure Switch #LYQ007
1 PCS new Square D 9012GAW26 (GAW-26, Class 9012) Pressure Switch #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Square D (Schneider Electric) |
| Part Number | 9012GAW26 (GAW-26) |
| Product Type | Electromechanical Pressure Switch |
| Series | 9012G |
| Contact Configuration | DPDT (2NO + 2NC) |
| Operating Pressure Range | 5 to 250 psig |
| Differential Pressure (Adjustable) | 10 to 49 psig |
| Maximum Allowable Pressure | 750 psig |
| Enclosure Rating | NEMA 4, 4X, 13 |
| Electrical Ratings | 3A @ 240VAC; 6A @ 120VAC; 0.22A @ 125VDC; 0.11A @ 250VDC |
| Switching Voltage Max | 240VAC / 250VDC |
| Switching Current Max | 3A (AC) |
| Fluid Connection | 1/4" – 18 NPT Female |
| Conduit Connection | 1/2" NPT |
| Termination | Screw‑Clamp Terminals |
| Diaphragm Material | Nitrile (Buna‑N) |
| Housing Material | Die‑Cast Aluminum Alloy 380 |
| Wetted Parts | Nitrile, Zinc‑Plated Steel |
| Operating Temperature | –23°C to +85°C (–10°F to 185°F) |
| Operating Cycles | 120 cpm |
| Mounting | Any Position |
| Certifications | UL Listed, CSA Certified, CE Marked |
| Dimensions (H × W × D) | 5.55 × 3.5 × 2.63 in (140.97 × 88.90 × 66.80 mm) |
| Weight | Approx. 1.36 kg (3.0 lb) |
| Applications | Hydraulic, Pneumatic, Industrial Process Control |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
