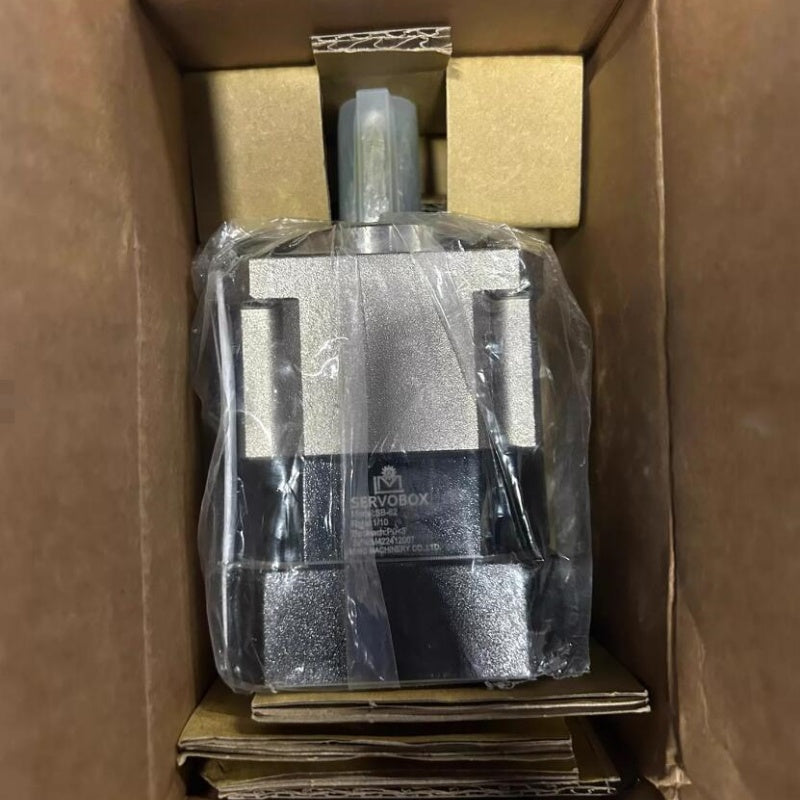

1 PCS new SERVOBOX SB-62 Planetary Reducer #LYQ007
1 PCS new SERVOBOX SB-62 Planetary Reducer #LYQ007
| Parameter | Specification |
|---|---|
| Gear Design | Helical gear (precision CNC grinding) |
| Reduction Ratio (i) | 3 ~ 1000 (1-stage: 3~10; 2-stage: 15~100; multi-stage up to 1000) |
| Backlash (Standard) | ≤ 3 arcmin (P2 precision class) |
| Backlash (High Precision) | ≤ 1 arcmin (optional) |
| Rated Output Torque (T₂N) | 590 N·m |
| Max. Short-time Torque (1.8×T₂N) | 1062 N·m |
| Max. Emergency Stop Torque (3×T₂N) | 1770 N·m |
| Rated Input Speed (n₁N) | 3000 rpm |
| Max. Permissible Input Speed (n₁B) | 6000 rpm |
| Torsional Rigidity | 6 N·m/arcmin |
| Max. Radial Force (F₂rB) | 1180 N |
| Max. Axial Force (F₂aB) | 590 N |
| Efficiency (1-stage) | ≥ 97% |
| Efficiency (2-stage) | ≥ 94% |
| Noise Level | ≤ 65 dB |
| Protection Class | IP65 |
| Operating Temperature | -25 °C ~ +90 °C |
| Lubrication | Fully synthetic grease (lifetime lubrication, maintenance-free) |
| Service Life | S5 (intermittent): >30,000 hrs; S1 (continuous): >15,000 hrs |
| Material (Gears) | SNCM220 nickel-chromium-molybdenum alloy steel, carburized & hardened (57~60 HRC), DIN 6 grade |
| Material (Housing) | SCM440 alloy steel (one-piece, hardened & tempered) |
| Mounting Position | Any |
| Weight | Approx. 7.1 kg |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
