1 PCS new TRUMPF CPX 18-22-91-A1 Motherboard #LYQ007
1 PCS new TRUMPF CPX 18-22-91-A1 Motherboard #LYQ007
1 PCS new TRUMPF CPX 18-22-91-A1 Motherboard #LYQ007

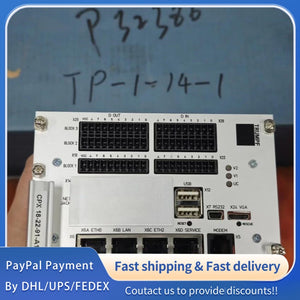

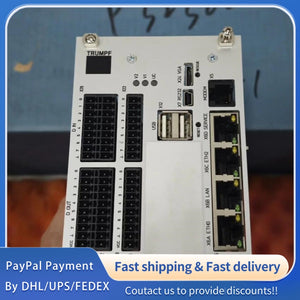

Part Number: CPX 18-22-91-A1; Model: CPX 18-22-91-A1; Product Name: TRUMPF CPX 18-22-91-A1 Industrial Control Motherboard (Laser Equipment Core Control Unit)
Brand: TRUMPF (A global leader in industrial laser, bending and punching equipment, providing high-reliability core components for intelligent manufacturing, ensuring precise control and stable operation in high-demand industrial scenarios.)
Product Status: Original Industrial-Grade Motherboard (In Stock), Compliant with TRUMPF Laser Equipment Control System Standards; Product Category: Industrial Control Motherboard, designed for core control, signal transmission and human-machine interaction of TRUMPF laser cutting equipment.
Core Application: Dedicated to the core control system of TRUMPF TruLaser series two-dimensional laser cutting machines, integrating laser output control, motion path planning, and external device communication. Widely used in customized agricultural machinery parts processing, sheet metal processing and other flexible production scenarios, realizing high-precision cutting control and efficient production scheduling.
Core Features: Integrates high-performance central processing chip for fast data processing and real-time control; Supports multiple communication protocols for seamless integration with laser generators and external PLC; Equipped with modular slot design for flexible configuration of fieldbus cards; Built-in self-diagnosis function for quick fault location; Supports data backup and hot-swap of external storage devices.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance
Power Supply Parameters: Rated Supply Voltage 24 VDC (Single-Phase); Voltage Tolerance ±10%; Rated Supply Current ≤ 300 mA; Power Consumption ≤ 7.2 W (Typical); Standby Current ≤ 80 mA. Compatible with industrial-grade 24 VDC power supplies with ripple ≤ 5%.
Signal Processing Parameters: Digital I/O Interface: Configurable 16 Inputs/16 Outputs; Signal Response Time ≤ 0.5 ms; Supports Dry Contact/PNP/NPN Signal Input; Output Drive Capacity ≤ 2 A per Channel. Laser Control Signal: Supports Analog Control Signal (0-10 VDC) for Laser Power Regulation, Signal Accuracy ±0.1% of Full Scale.
2.2 Communication & Interface Specifications
Communication Compatibility: Supports Ethernet/IP, Modbus/TCP, PROFINET Protocols; Built-in CAN Bus Interface for Internal Device Communication; Baud Rate Configurable (9600 / 19200 / 38400 / 115200 bps) for Serial Communication; Supports Integration with TRUMPF TruDisk Laser Generators and External Industrial PLC Systems; Compatible with TRUMPF TECZONE Software for Parameter Configuration and Status Monitoring.
Interface Specifications: Network Interface: 4 Channels RJ45 Ethernet Ports (X0: External Bus Module, X1: Customer Interface, X2: Reserved, X3: Service Interface); USB Interface: 1 Channel USB 2.0 Port (Supports Hot-Swap, for Data Backup and Camera Connection); I/O Expansion Slots: 6 Modular Slots for Fieldbus Card Configuration; Operation Panel Interface: 1 Channel D-Sub Connector (for Optional Operation Panel); Power Supply Interface: 1 Channel Screw Terminal (3.5 mm Pitch, Anti-Loose Design).
2.3 Protection & EMC Specifications
Protection Functions: Built-in Over-Voltage Protection (OV) and Reverse Polarity Protection for Power Supply; Input/Output Short-Circuit Protection; ESD Protection Compliant with EN 61000-4-2 (±8 kV Contact, ±15 kV Air); Surge Protection Compliant with EN 61000-4-5 (±2 kV Differential Mode, ±4 kV Common Mode); Over-Temperature Protection (Trigger Temperature ≥ 70℃).
EMC Compliance: Compliant with EU EMC Directive 2014/30/EU; Electromagnetic Emission EN 55011 (Group 1, Class A); Electromagnetic Immunity EN 61000-4-3 (80 MHz - 2 GHz, 10 V/m); Suitable for Industrial Environment Pollution Degree 2.
2.4 Environmental & Mechanical Specifications
Environmental Conditions: Operating Temperature -10℃ to 60℃; Storage Temperature -40℃ to 85℃; Relative Humidity 5% - 95% (Non-Condensing); Altitude Up to 2000 m (No Derating Required); Vibration Resistance EN 60068-2-6 (10 Hz - 500 Hz, 0.5 g Amplitude).
Mechanical Specifications: Mounting Type: Panel Mounting (Compatible with TRUMPF Standard Equipment Chassis); Housing Material: High-Strength Flame-Retardant Plastic (UL 94 V-0); Protection Level: IP20 (Overall Unit, IEC/EN 60529); Dimensions (W×H×D): 160 mm × 120 mm × 30 mm (Typical); Net Weight: 280 g (Typical); Shock Resistance EN 60068-2-27 (15 g, 11 ms Duration).
