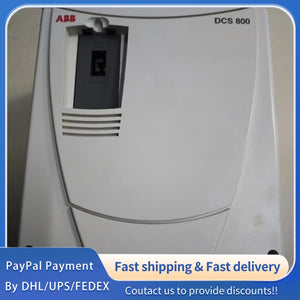

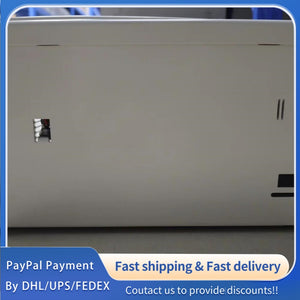

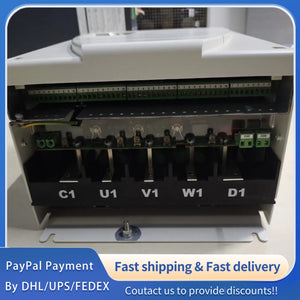

1 PCS used ABB DC Drive DCS800-S02-0025-05 #LYQ007
1 PCS used ABB DC Drive DCS800-S02-0025-05 #LYQ007
1 PCS used ABB DC Drive DCS800-S02-0025-05 #LYQ007
Part Number: DCS800-S02-0025-05; Product Name: ABB DCS800 Series DC Motor Drive
Brand: ABB (A global pioneer in power and automation technologies, delivering high-reliability drive solutions for industrial processes requiring precise DC motor control.)
Product Status: Original Industrial-Grade DC Drive (In Stock), Compliant with ABB Automation Standards; Product Category: Industrial DC Motor Drive, designed for accurate speed and torque control of DC motors in heavy-duty applications.
Core Application: Specialized for DC motor control in metallurgical mills, cranes & winches, papermaking & rubber production lines, test benches, and electrolysis processes. Seamlessly integrates with ABB System 800xA DCS, PLCs, and mainstream industrial control devices (Siemens, Mitsubishi, etc.). Adaptable to complex and harsh industrial operating environments with stable low-speed high-torque performance.
Core Features: High-precision speed and torque control capability; Support for 6-pulse configuration to meet grid requirements; Built-in safety functions and comprehensive protection mechanisms; Industrial-grade components for 24/7 continuous operation; Multiple communication protocol support for system integration; Built-in self-diagnostic function for fault detection and rapid troubleshooting.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Control & Operation Performance
Control Modes: Local (LOC) / Remote (REM) Switchable; Control Type: Speed Control, Torque Control (Switchable); Speed Regulation Range: 1:10 (Basic), Up to 1:100 with Tachometer Feedback; Speed Control Precision: ≤5% (No Feedback), ≤1% (With Tachometer Feedback); Local Control: Physical Button Operation (Start, Stop, Forward/Reverse, Speed Adjustment); Displayed Parameters: Motor Speed, Armature Current, Armature Voltage, Excitation Current, Fault Codes; Supported Languages: Multilingual (Chinese, English, Japanese), Switchable via Parameter Setting (9901 Language Option).
2.2 Electrical Performance
Power Supply Parameters: Rated Input Voltage: 380V - 480V AC Three-Phase, 50/60Hz; Pulse Configuration: 6-Pulse; Rated Armature Current: 25A DC; Rated Excitation Voltage: 220V DC; Rated Excitation Current: 10A DC; Armature Output Voltage: Up to 180V DC (Rated Load); Power Protection: Built-in Over-Voltage, Over-Current, Short-Circuit, Reverse Polarity and Under-Voltage Protection.
Electrical Safety: Insulation Resistance: ≥100 MΩ @ 500V DC; Dielectric Strength: 1500V AC for 1 Minute (Between Power Supply and Ground); Compliant with IEC 61800-5-1, IEC 60950-1 Safety Standards.
2.3 Communication & Interface Specifications
Communication Protocols: Support Modbus RTU, PROFIBUS DP, Ethernet/IP (Optional); Interface Type: Standard Industrial Signal Interfaces, Compatible with PLC, DCS, Upper Computer and External Control Systems; Signal Input/Output: Analog Inputs (AI) × 2 (4-20mA / 0-10V), Digital Inputs (DI) × 4, Analog Outputs (AO) × 2 (4-20mA), Digital Outputs (DO) × 2; Speed Feedback Interface: Compatible with Tachometer Generator, Encoder (Optional).
2.4 Protection & EMC Specifications
Protection Functions: ESD Protection: ±8kV Contact, ±15kV Air (Per IEC 61000-4-2); Surge Protection: ±2kV (Power Port), ±1kV (Signal Port) (Per IEC 61000-4-5); Over-Temperature Protection: Automatic Alarm and Fault Shutdown at Abnormal Temperature (Ambient Temperature Exceeds 60℃); Over-Torque Protection: Adjustable Threshold with Alarm Output; EMC Compliance: Meets EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emission) Standards; Certifications: CE, UL (Compliant with EMC, Low Voltage Directive).
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
