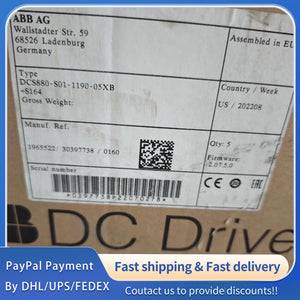

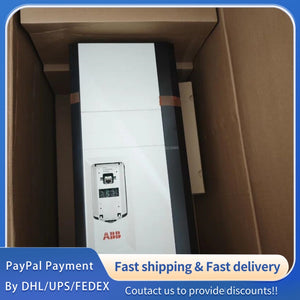

1 PCS new ABB DC Drive DCS880-S01-1190-05XB+S164 #LYQ007
1 PCS new ABB DC Drive DCS880-S01-1190-05XB+S164 #LYQ007
1 PCS new ABB DC Drive DCS880-S01-1190-05XB+S164 #LYQ007
Part Number: DCS880-S01-1190-05XB+S164; Derivative Model: DCS880 Series Single DC Drive; Sub-model: High-power Industrial DC Drive with S164 Safety Option
Alternate P/N: N/A (Fully Compatible with ABB AC/DC Automation Ecosystem, PLCs, HMIs, Industrial Sensors, and Third-party Control Components)
Brand: ABB (Industrial Automation Division, Drives & Controls Systems)
Product Category: Industrial DC Drive (High-performance Adjustable Speed Drive for DC Motor Control in Heavy-duty Industrial Applications)
Product Series: ABB DCS880 Series (Modular DC Drives for Precise Torque & Speed Control with Enhanced Reliability)
2.1 Power Supply Parameters
Input Voltage: 380-500V AC (three-phase); Voltage Tolerance: ±10% (342-550V AC); Input Frequency: 50/60Hz ±5%; Rated Output Current: 1190A (continuous operation at 40°C); Maximum Output Current: 1785A (150% overload for 1 minute per 10 minutes, heavy-duty mode); Output Voltage: 0-400V DC (continuous), 0-440V DC (peak);
Power Consumption: ≤5kW (control circuit, typical operation); Auxiliary Power Supply: 24VDC ±10% (for control circuit and safety functions), Current Consumption: ≤2A (auxiliary power, full load).
2.2 Control & I/O Parameters
Control Modes: Speed control (analog given, digital given), Torque control, Current control; Speed Regulation Accuracy: ±0.1% of rated speed (with encoder feedback), ±1% of rated speed (open loop); Speed Range: 1:1000 (closed loop), 1:100 (open loop); Dynamic Response Time: ≤10ms (torque step response).
Analog Inputs (AI): 4-channel configurable analog input, 4-20mA DC / 0-10V DC (selectable per channel); Input Accuracy: ±0.1% FS (full scale) at 25°C; Input Impedance: ≥1MΩ (voltage input), ≤250Ω (current input); Used for speed given, torque given, and process signal acquisition.
Analog Outputs (AO): 2-channel configurable analog output, 4-20mA DC (load resistance ≤500Ω); Output Accuracy: ±0.2% FS; Used for speed feedback, current feedback, and torque feedback signal output.
Digital Inputs (DI): 8-channel digital input, 24VDC (PNP/NPN selectable); Response Time: ≤1ms; Input Impedance: ≥10kΩ; Suitable for start/stop command, direction control, and interlock signal input.
Digital Outputs (DO): 4-channel digital output, relay contact (max 2A/250V AC, 2A/30V DC); Used for status indication, alarm output, and interlock control.
2.3 S164 Safety Option Specifications
Safety Function: Safety Torque Off (STO), compliant with EN 61800-5-2; Safety Integrity Level (SIL): SIL 3 (per IEC 61508 ed2); Performance Level (PL): PL e (per EN ISO 13849-1); Safety Inputs: 2-channel redundant safety input (24VDC, positive logic); Safety Outputs: 2-channel safety contact output (for torque off confirmation); Response Time: ≤20ms (safety signal processing).
2.4 Communication Interfaces
Built-in Interfaces: 1×EtherNet/IP, 1×Profinet IO, 1×RS-485 (Modbus RTU); Optional Interfaces: CANopen, DeviceNet (via expansion module); Communication Rate: EtherNet/IP up to 100Mbps, RS-485 up to 19200 bps; Supports data transmission with upper-level controllers, remote monitoring, and parameter configuration; Integrated web server for easy maintenance and diagnosis.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
